GREE GMV5E DC INVERTER VRF UNITS SERVICE MANUAL
41
Outdoor Model
Gas pipe size(mm)
Liquid pipe size(mm)
GMV-1180WM/E-X
Φ41.3
Φ22.2
GMV-1235WM/E-X
Φ41.3
Φ22.2
GMV-1300WM/E-X
Φ41.3
Φ22.2
GMV-1350WM/E-X
Φ41.3
Φ22.2
GMV-1410WM/E-X
Φ44.5
Φ22.2
GMV-1460WM/E-X
Φ44.5
Φ22.2
GMV-1515WM/E-X
Φ44.5
Φ22.2
GMV-1580WM/E-X
Φ44.5
Φ22.2
GMV-1630WM/E-X
Φ44.5
Φ22.2
GMV-1685WM/E-X
Φ44.5
Φ22.2
GMV-1750WM/E-X
Φ44.5
Φ22.2
GMV-1800WM/E-X
Φ44.5
Φ22.2
GMV-1845WM/E-X
Φ44.5
Φ22.2
GMV-1908WM/E-X
Φ51.4
Φ25.4
GMV-1962WM/E-X
Φ51.4
Φ25.4
GMV-2016WM/E-X
Φ51.4
Φ25.4
GMV-2072WM/E-X
Φ51.4
Φ25.4
GMV-2128WM/E-X
Φ51.4
Φ25.4
GMV-2184WM/E-X
Φ51.4
Φ25.4
GMV-2240WM/E-X
Φ51.4
Φ25.4
GMV-2295WM/E-X
Φ51.4
Φ25.4
GMV-2350WM/E-X
Φ51.4
Φ25.4
GMV-2405WM/E-X
Φ51.4
Φ25.4
GMV-2460WM/E-X
Φ51.4
Φ25.4
(3) If the length between an IDU and its nearest branch is above 10m, then increase the size of the
liquid pipe of IDU (only for the pipe size that is≤6.35mm).
(4) If the height difference between indoor and outdoor units exceeds 90m, please consult the
manufacturer for specific technical requirements.

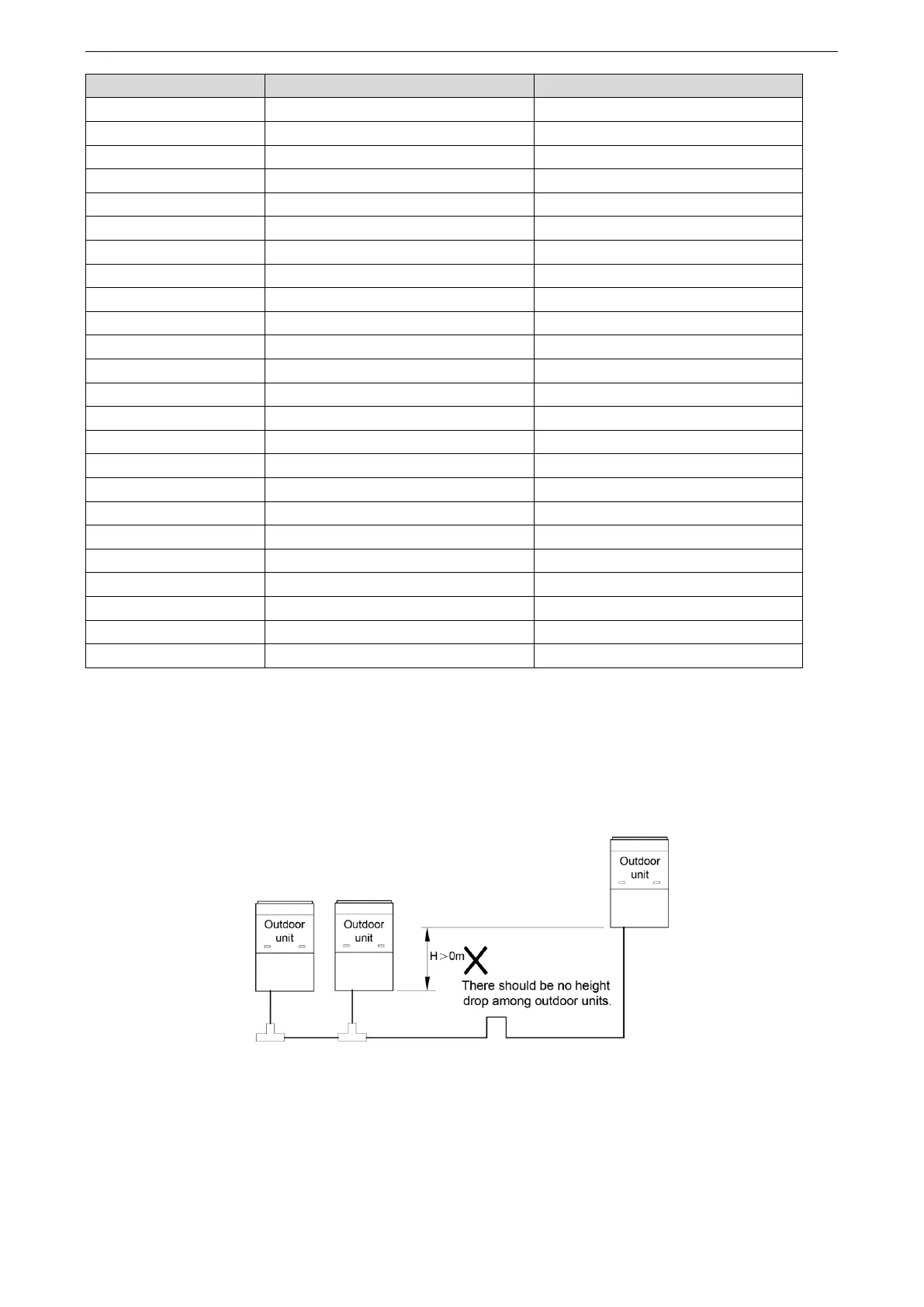

5.4 Connection Pipe among Outdoor Modules
