11. Removal Procedure
Warning: disconnect power supply before
removal; discharge the refrigerant completely
before unsoldering the pipes.

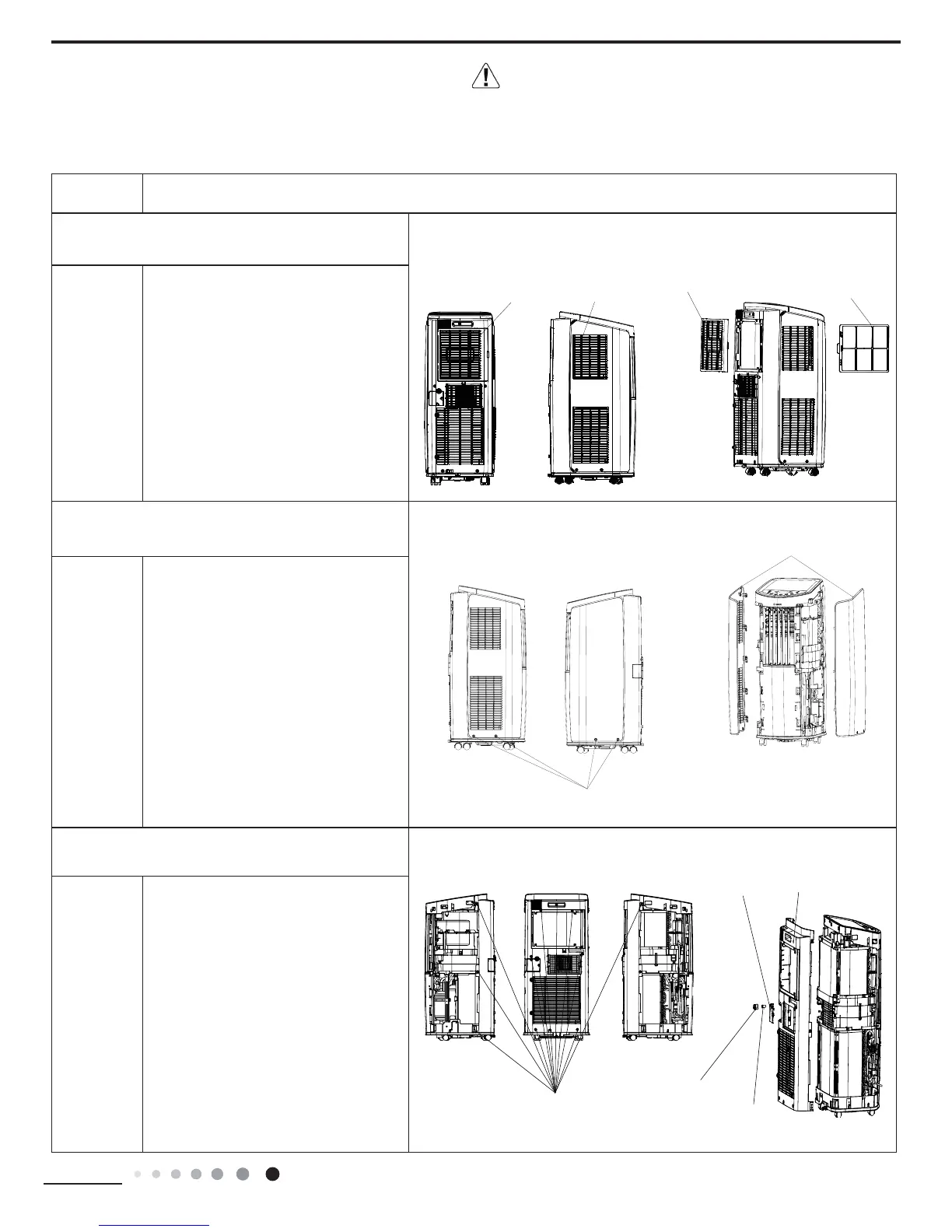

Front grill
Front grill
Filter sub-assy 2
Filter Sub-assy 2
1.Remove front grill and lter sub-assy 2
2. Remove left & right side plate
Pull the lter sub-assy 2 outward by
hand to remove the lter.
Step Procedure
Srews
Left
&
right side plate
Remove left side plate: unscrew 2
screws as diagram shown to remove
left side plate.
Remove right side plate: unscrew
2 screws of right side plate to remove it.
3.Remove rear plate
Remove the 12 screws xing rear
plate to remove the rear plate and cable
cross plate and cable cross plate and
rubber plug.
Real plare
Screws
Cable cross plate
Cover of drainage
hole
Rubber Plug
Note:Take A1 panel for example.
To Next Page
