50
Maintenance
Service Manual

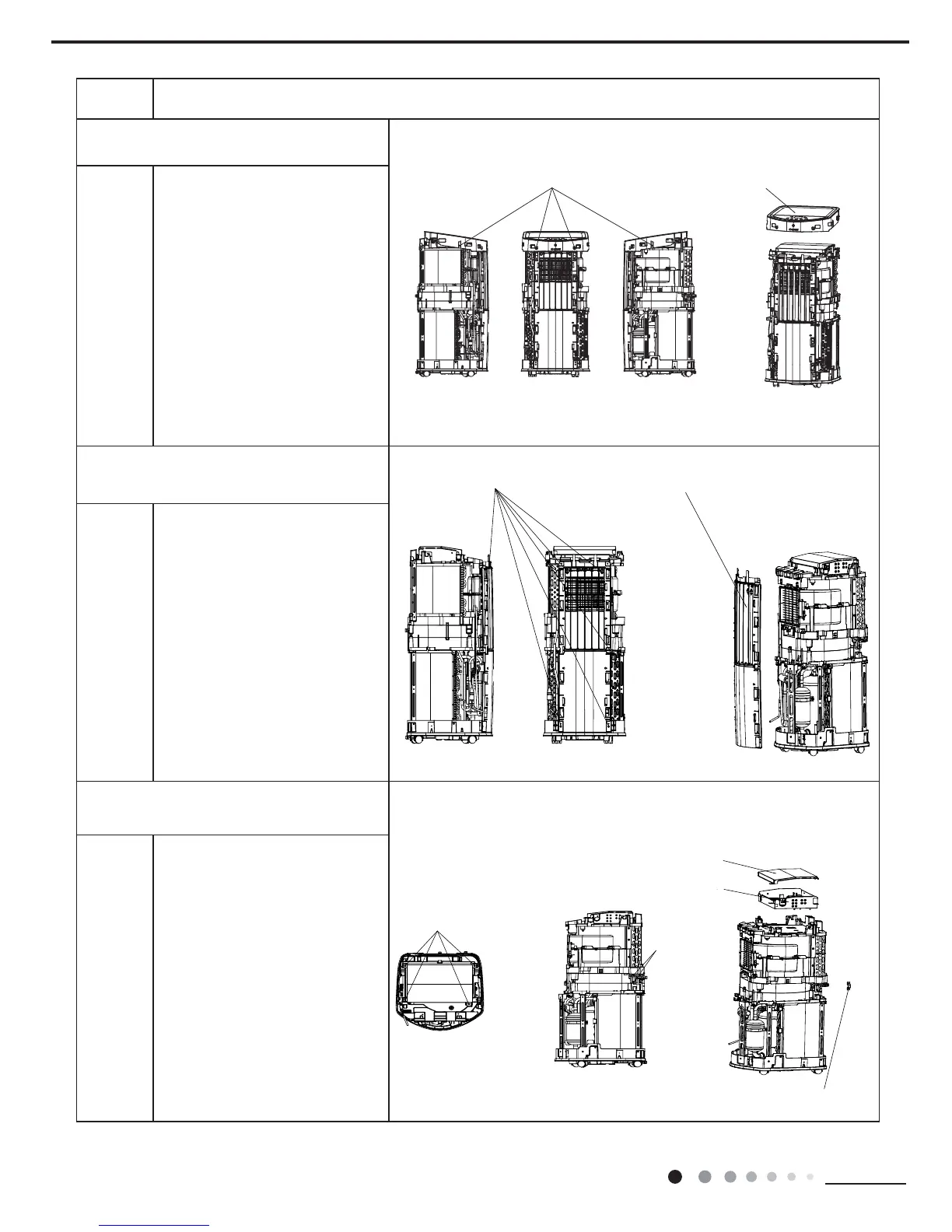

Step
6.Remove electric box cover
5.Remove front panel assy
4.Remove top cover assy
Procedure
Remove the four screws xing
front panel to remove the front
panel sub-assy
.
Unscrew 4 screws to remove the
electric box cover assy and wire
clamp.
Screws
Screws
Screws
Electric box cover
Wire Clamp
Electric box cover assy
Front panel sub-assy
Remove the 4 screws to remove
the top cover assy
.
T
op cover assy
Screws
51
53
Table of Contents
Default Chapter
2
Table of Contents
2
Part Ⅰ : Technical Information
3
1 Summary
3
2 Specifications
5
3 Outline Dimension Diagram
7
4 Refrigerant System Diagram
10
5 Electrical Part
11
Wiring Diagram
11
Electric Diagram
11
PCB Printed Diagram
13
Silk Screen on Main Board
13
Top View
13
Bottom View
13
Silk Screen on Display Board
14
6 Function and Control
15
Introduction of Control Panel
15
Operation of Control Panel
15
ON/OFF Button
15
Remote Controller Introduction
16
Buttons on Remote Controller
16
Icon Display on Remote Controller
16
Fan Button
17
Health Function
17
X-FAN Button
17
TEMP Button
18
TIMER Button
18
SLEEP Button
18
Operation Guide
18
Introduction of Basic Mode Function
20
Temperature Parameter
20
Basic Functions of System
20
Cool Mode
20
Setting Button Function
21
Light Control
21
Protection Function
21
Over Current Protection
21
Safety Precautions
22
Electrical Safety Precautions
22
Refrigerant Safety Precautions
22
Part Ⅱ : Installation and Maintenance
22
7 Notes for Installation and Maintenance
22
Main Tools for Installation and Maintenance
23
Accessory List
24
Installation Procedures
24
Preparation before Installation
24
Install Wire Hook
25
Removing Collected Water
25
Use the Continuous Drainage Option from the Middle Hole
26
Install Heat Discharge Pipe
27
Installation and Disassembly of Heat Discharge Pipe
27
Note of Install Heat Discharge Pipe
27
Disassemble Heat Discharge Pipe
28
Operation Test
28
9 Maintenance
29
Error Code
29
Malfunction Detection Flowchart
31
Malfunction of Temperature Sensor F1, F2, F4
31
Malfunction of Overcurrent Protection E5
32
Bucket Full Protection H8
33
Malfunction of Insufficient Fluorine Protection F0
34
Malfunction of Overload Protection for Compressor H3
35
Overload Malfunction E8
36
Maintenance Method for Common Malfunction
37
Air Conditioner Cant be Started up
37
Poor Cooling (Heating) for Air Conditioner
37
Fan Cant Swing
38
Compressor Cant Operate
38
Abnormal Sound and Vibration
38
10 Exploded View and Parts List
39
11 Removal Procedure
51
Remove Front Grill and Filter Sub-Assy 2
51
Remove Left & Right Side Plate
51
Remove Rear Plate
51
Remove Top Cover Assy
52
Remove Front Panel Assy
52
Remove Electric Box Cover
52
Remove Supporting Board 3
53
Remove Cover of Propeller Housing
53
Remove Evaporator Assy
53
Remove Air Flue Assy 2
54
Remove Air Flue Assy 1
55
Remove 4-Way Valve Interface
56
Remove Condenser Assy
56
Remove Water Level Switch Sub-Assy
57
Remove Compressor and Fittings
57
Remove Motor Sub-Assy(Flutter)
57
Remove Chassis Sub-Assy
58
Set Temperature
59
Ambient Temperature
59
Appendix
59
Appendix 1: Reference Sheet of Celsius and Fahrenheit
59
Resistance Table of Temperature Sensor (15K)
60
Appendix 2: List of Resistance for Temperature Sensor
60
Resistance Table of Temperature Sensor (20K)
61
Resistance Table of Temperature Sensor (50K)
62
Appendix 3: Resistance Value Table of Humidity Sensor
63
HIS-06 Temperature and Humidity Characteristic
64
