Gree GTH18K3FI User Manual

U-Match Series DC Inverter Service Manual
59

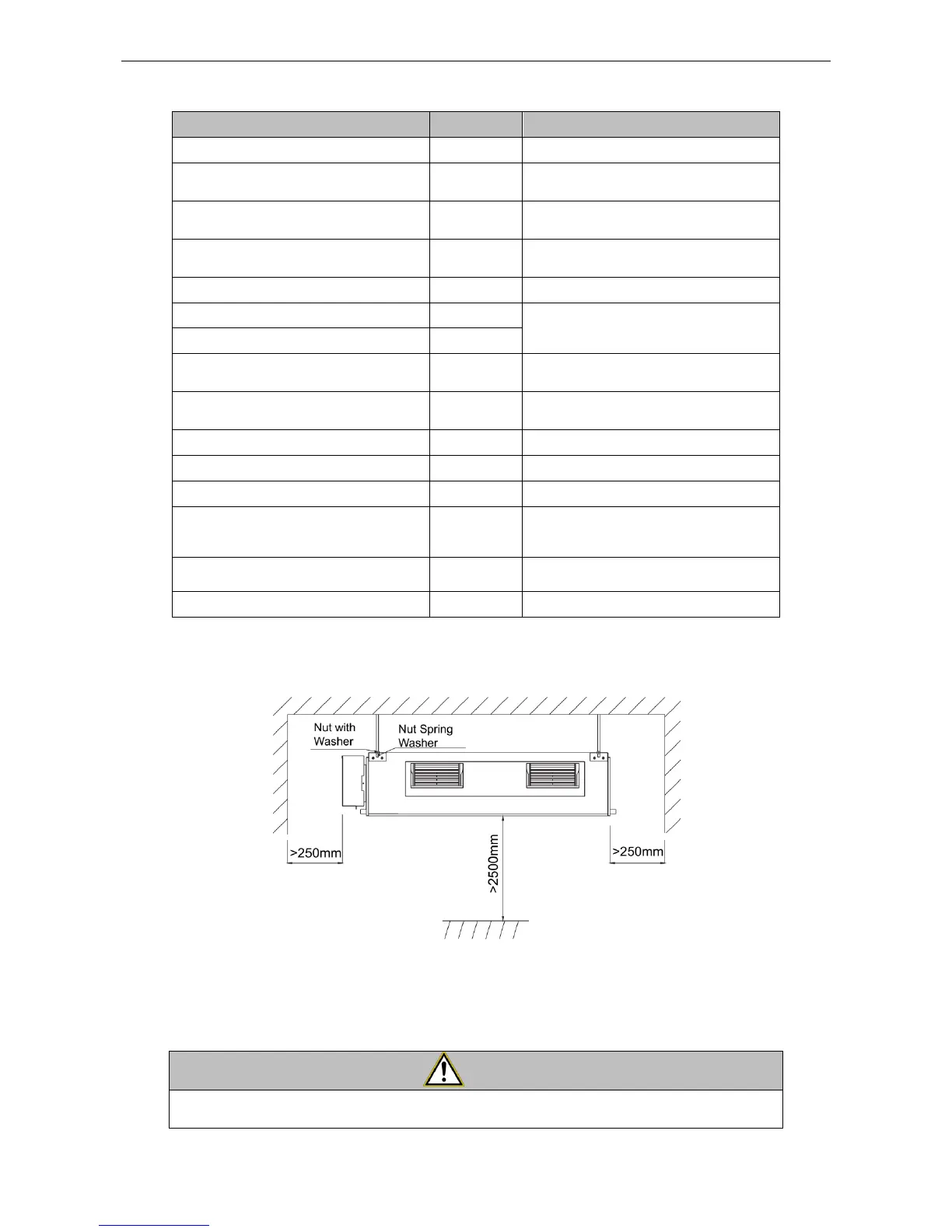

Table 3-1-2 Installation Accessories List for Duct-type Indoor Unit
Name & Shape
QTY
Notes
Installation and Operating Instructions
1
Insulation materials for gas pipe
1
Used for gas pipe connector on indoor
unit
Insulation materials for liquid pipe
1
Used for liquid pipe connector on indoor
unit
Insulation materials for drainage pipe
2
Used for wrapping the condensate pipe
and rubber plug.
Nut M8 with gasket
8
Use for fixing the hanger hook
4
4 sets, used for ceiling mounting of the
indoor unit
Nut and spring gasket
4
Hook
4
Used for ceiling mounting of the indoor
unit
Strap
4 or 8 pcs
4 pcs for 18kBtu/h unit and 8 pcs for
others
Wired controller
1
Remote controller
1
Battery
2
Fexible pipe
0.2 or 4 pcs
0 pc for 18kBtu/h unit; 2 pcs for 22.5,
27kBtu/h unit; and 4 pcs for 36-45kBtu/h
unit
Power cord
1 – 2 pcs
2 pcs for36-45kBtu/h unit and 1 pc for
others
Connection wire
1.1.5 Installation Clearance Data
Figure 3-1-7
Warning: The height of installation for the indoor unit should be 2.5m above.
1.1.6 Drain Piping Work
Installation of Drainage Pipeline:
CAUTION!
Install the drain hose in accordance with the instructions in this installation manual and keep the
area warm enough to prevent condensation. Problems with the piping may lead to water leaks.
