U-Match Series DC Inverter Service Manual
65
corner of the room.

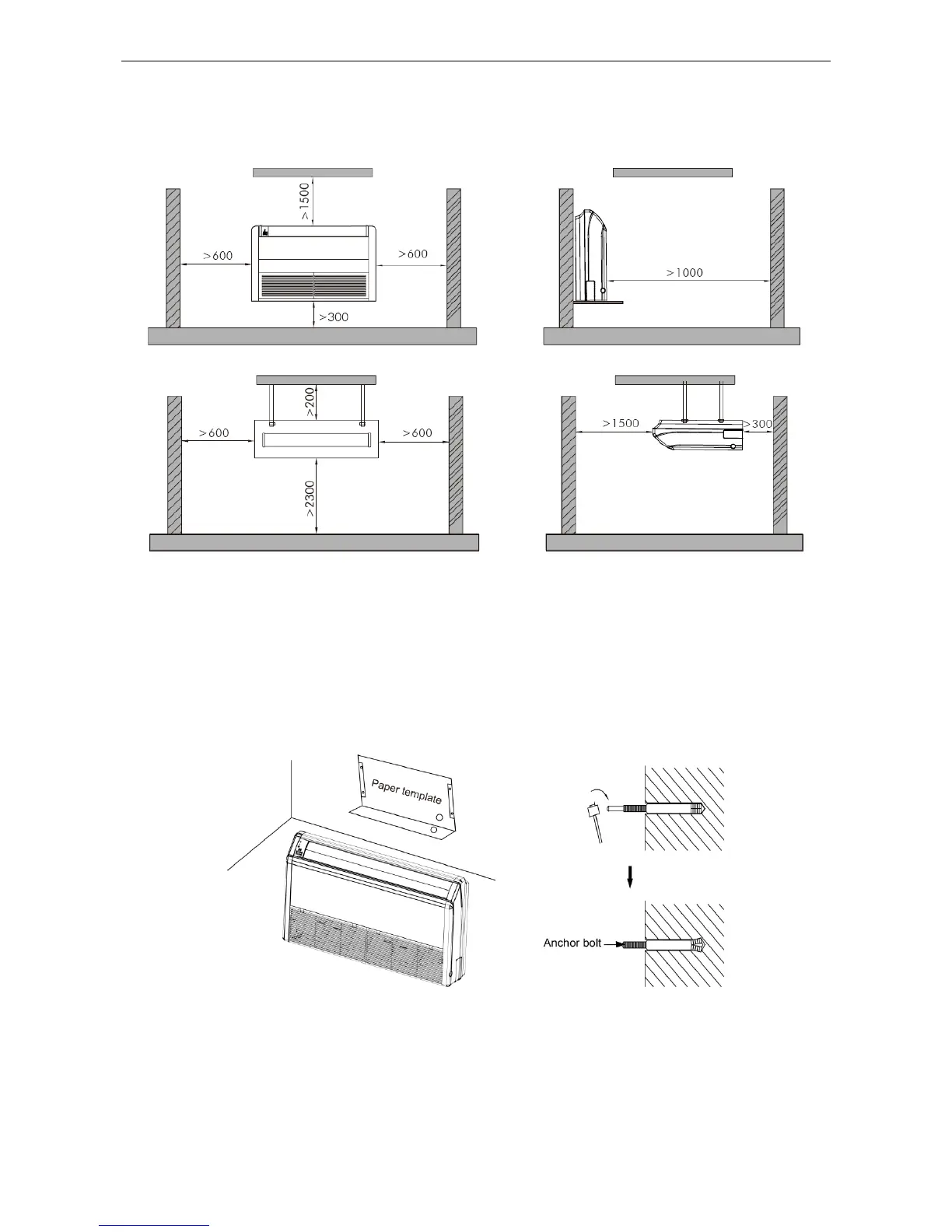

(3) Leave service space around the unit as required in Figure 3-1-23.
Floor type
Ceiling type
Figure 3-1-23
(4) Install the unit where the drain pipe can be easily installed.
(5) The space from the unit to the ceiling should be kept as much as possible so as for more
convenient service.
1.2.3 Indoor Unit Installation
(1) Determine the location of the hanger through the paper template, and then remove the paper
template.
Figure 3-1-24
(2) Insert the anchor bolts into the drilled holes, and drive the pins completely into the anchor bolts
with a hammer.
(3) Firstly unfix two buckles on the grille as shown on the picture. Remove the screws under the
buckles by a screwdriver and then open the inlet grille.
