DC Inverter U-match Series Cassette T
ype Unit
17
4)
When outdoor units are inst
alled one above another
.
Unit: mm
400
500
2000
400
500
300

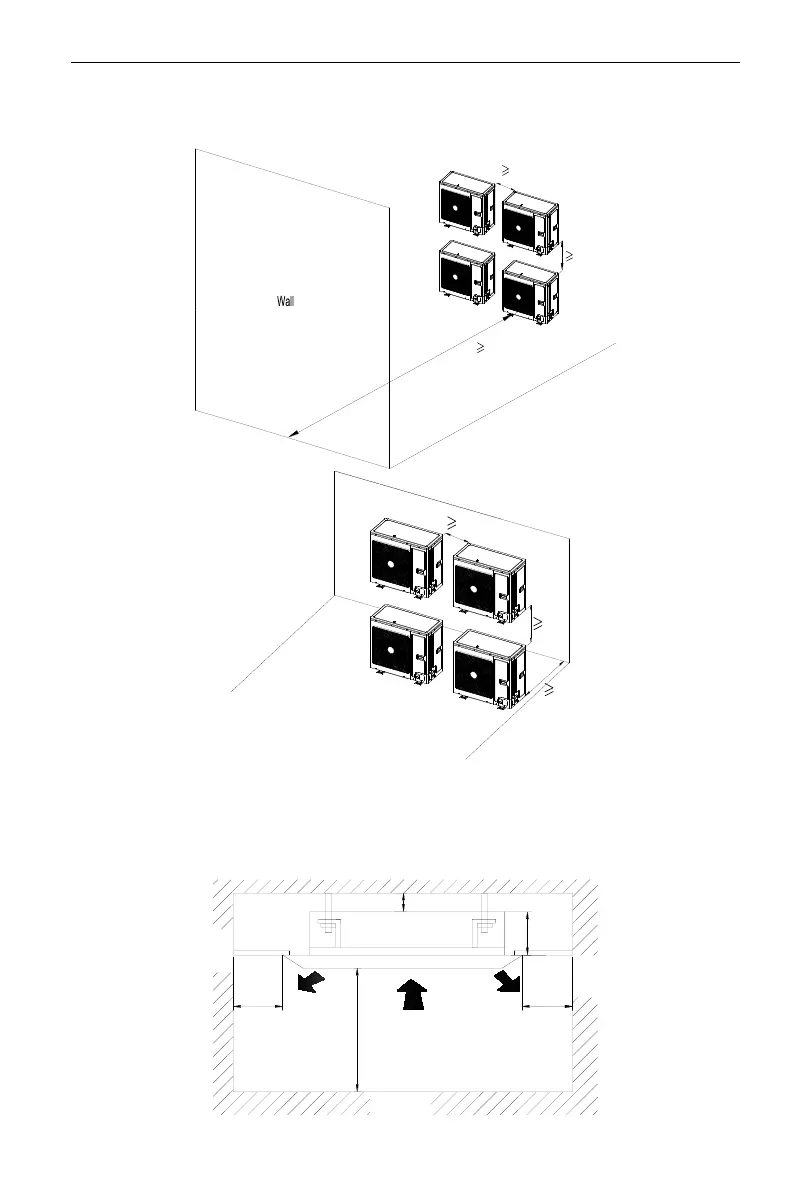

(2)
Diagram
of
installation
location
and
space
for
indoor
unit
(Notice:
for
the
best
performance
of
indoor
unit,
make
sure
its
installation
space
conforms
t
o
the
fo
llowing installation dimensions).
2500mm or above
H
1500mm or above
Wall
20mm or above
1500mm or above
Wall
Wall
20
22
