DC Inverter U-match Series Cassette Type Unit
40
Please select a proper length according to local conditions.
Communication cords must not be twisted together. To be in compliance
EN 55014, it is necessary to use 7.5 meters long wire.
⑧. The wire gauge of communication cord should not be less than 0.75mm².
It’s recommended to use 0.75mm² power cords as the communication
cords.
3.3.3 Connection of Power Cord and Communication Cord

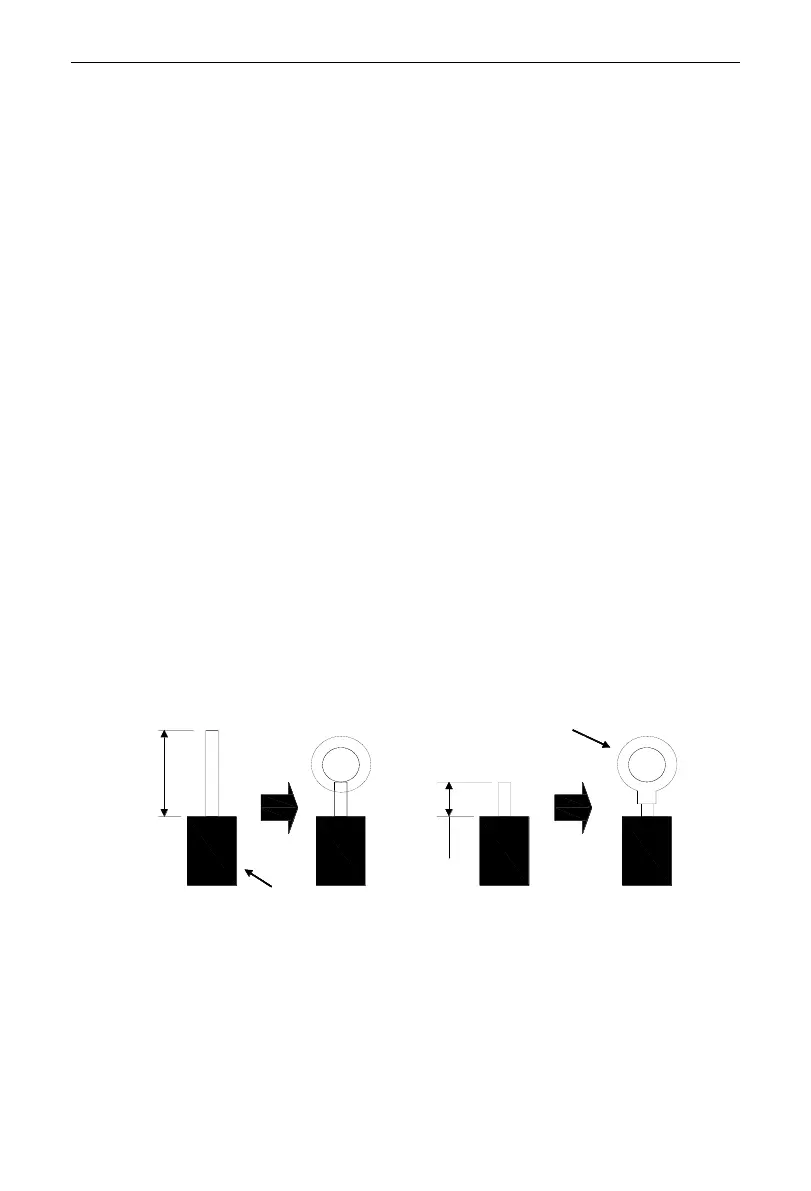

(1) For solid wires (as shown below):
1) Use wire cutters to cut off the wire end and then peel away about 25mm of
the insulation layer.
2) Use a screwdriver to unscrew the terminal screw on the terminal board.
3) Use nippers to bend the solid wire into a ring that fits the terminal screw.
4) Form a proper ring and then put it on the terminal board. Use a screwdriver
to tighten up the terminal screw.
(2) For strand wires (as shown below):
1) Use wire cutters to cut off the wire end and then peel away about 10mm of
the insulation layer.
2) Use a screwdriver to unscrew the terminal screw on the terminal board.
3) Use a round terminal fastener or clamp to fix the round terminal firmly on
the peeled wire end.
4) Locate the round terminal conduit. Use a screwdriver to replace it and
tighten up the terminal screw (as shown below).
