DC Inverter U-match Series Duct Type Unit
3.2 Unit Installation
3.2.1 Indoor Unit Installation
3.2.1.1 Preparation for Installing the Indoor Unit
NOTICE!
(1) Please tighten the nut and bolt to prevent the air conditioner from falling down.
(2) The unit might be loose if fixing the panel rack only. Be careful during
installation.
(1) Install the bolts to the ceiling at a place strong enough to hang the unit.

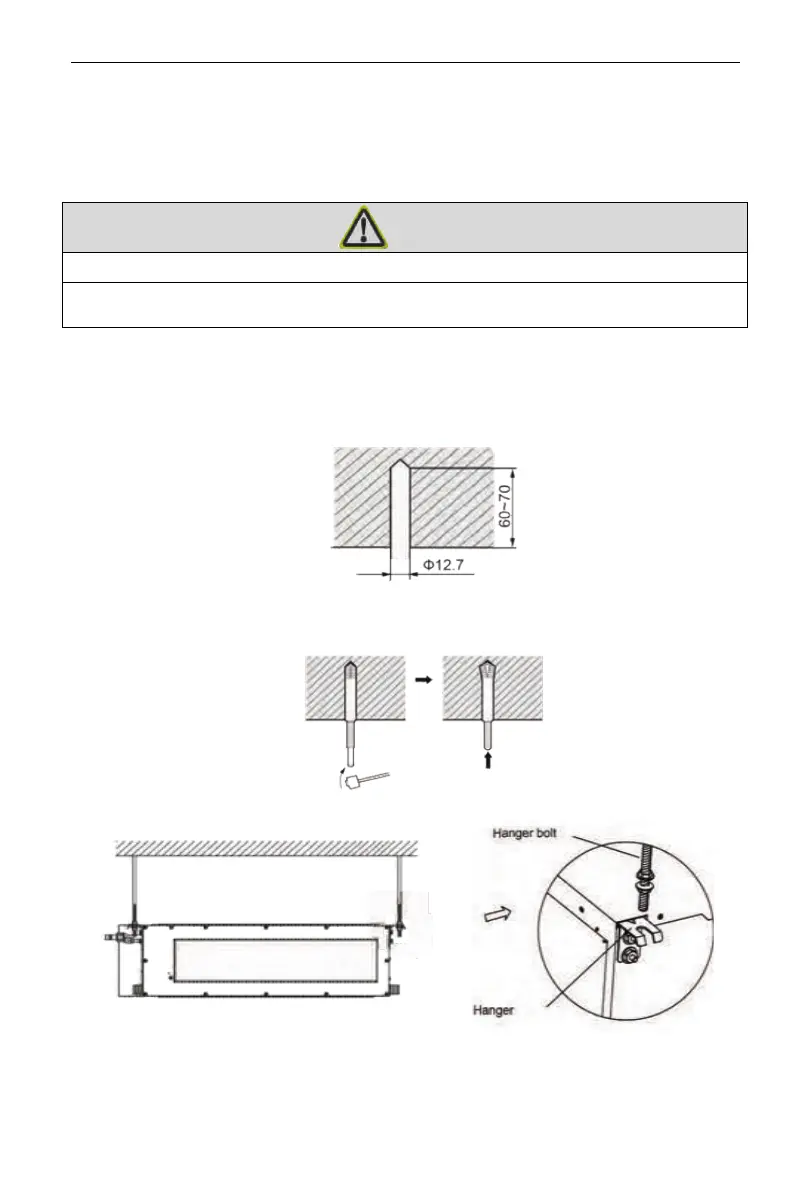

Mark the bolt positions from the installation template. With a concrete drill
for 12.7mm diameter holes. See the following figure.
Unit:mm
(2) Insert the anchor bolts into the drilled holes, and drive the pins completely
into the anchor bolts with a hammer. See the following figure.
(3) Install the hanger to the unit. See the following figure.
To Next Page
