2.3 Cooling and Heating Data Sheet in Rated Frequency
Cooling:
Rated cooling condition(°F)
(DB/WB)
Model
Pressure of gas pipe connecting
indoor and outdoor unit
Inlet and outlet pipe temperature of
heat exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor PSIG T1 (°F) T2 (°F)
80/66.9 95/-
09K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4
Super High High
12K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4
18K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4
24K 130~142
in:46.4~51.8
out:51.8~57.2
in:167~181.4
out:98.6~118.4

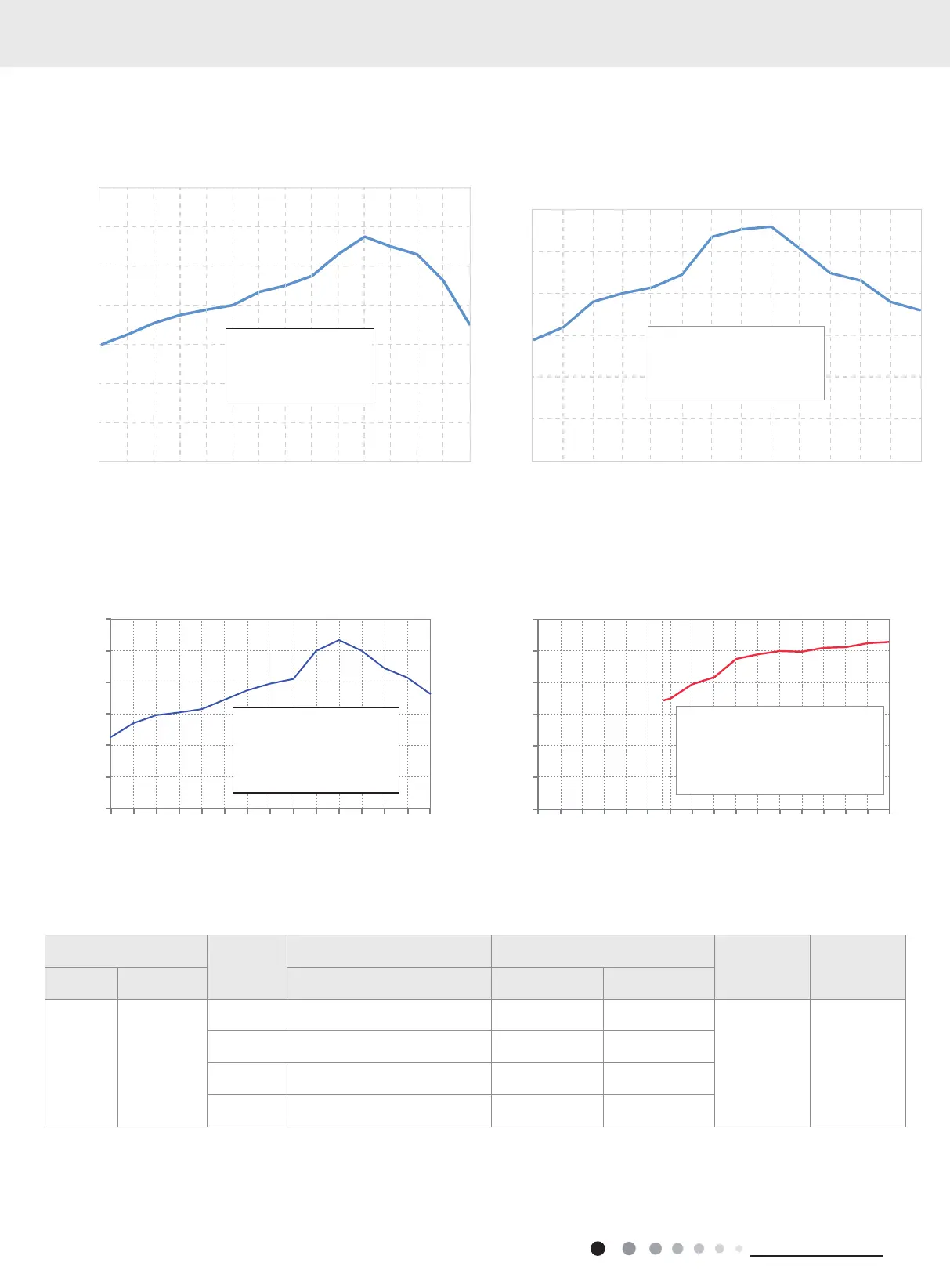

Capacity ratio(%)
Cooling
Heating
Capacity ratio(
%)
Outdoor temp.(°F) Outdoor temp.(°F)
0
20
40
60
80
100
120
0
20
40
60
80
100
120
0 5 17 23 32 41 50 57 67 75 86 95 104 113 122
-13-505101720
19.4
24 32 41 43 47 53 59 64 70
75.2
Conditions
Indoor:DB80°F/WB66.9°F
Outdoor:DB95°F
Indoor air flow:Super High
Pipe length:24.6ft
Conditions
Indoor: DB70°F
Outdoor: DB19.94°F/WB19.04°F
Indoor air flow: Super High
Pipe length: 24.6 ft
Cooling operation ambient temperature range is 0.4
o
F~122
o
F.
Hheating operation ambient temperature range is 19.4
o
F~75.2
o
F.
24K:
Cooling operation ambient temperature range is 0
o
F~118
o
F.
Heating operation ambient temperature range is -13
o
F~75
o
F.
18K:
0
20
40
60
80
100
120
140
0
517233241505767758695104 110 118
Capacity ratio(%)
Cooling
Outdoor temp.(°F)
Conditions
Indoor:DB80°F/WB66.9°F
Outdoor:DB95°F
Indoor air flow:Super High
Pipe length:24.6ft
0
20
40
60
80
100
120
-135 14 20 32 36 40 45 48 50 59 65 70 75
Heating
Capacity ratio(
%)
Outdoor temp.(°F)
Conditions
Indoor: DB70°F
Outdoor: DB19.94°F/WB19.04°F
Indoor air flow: Super High
Pipe length: 24.6 ft
