Gree GWC User Manual

89
Installation and Maintenance
Service Manual

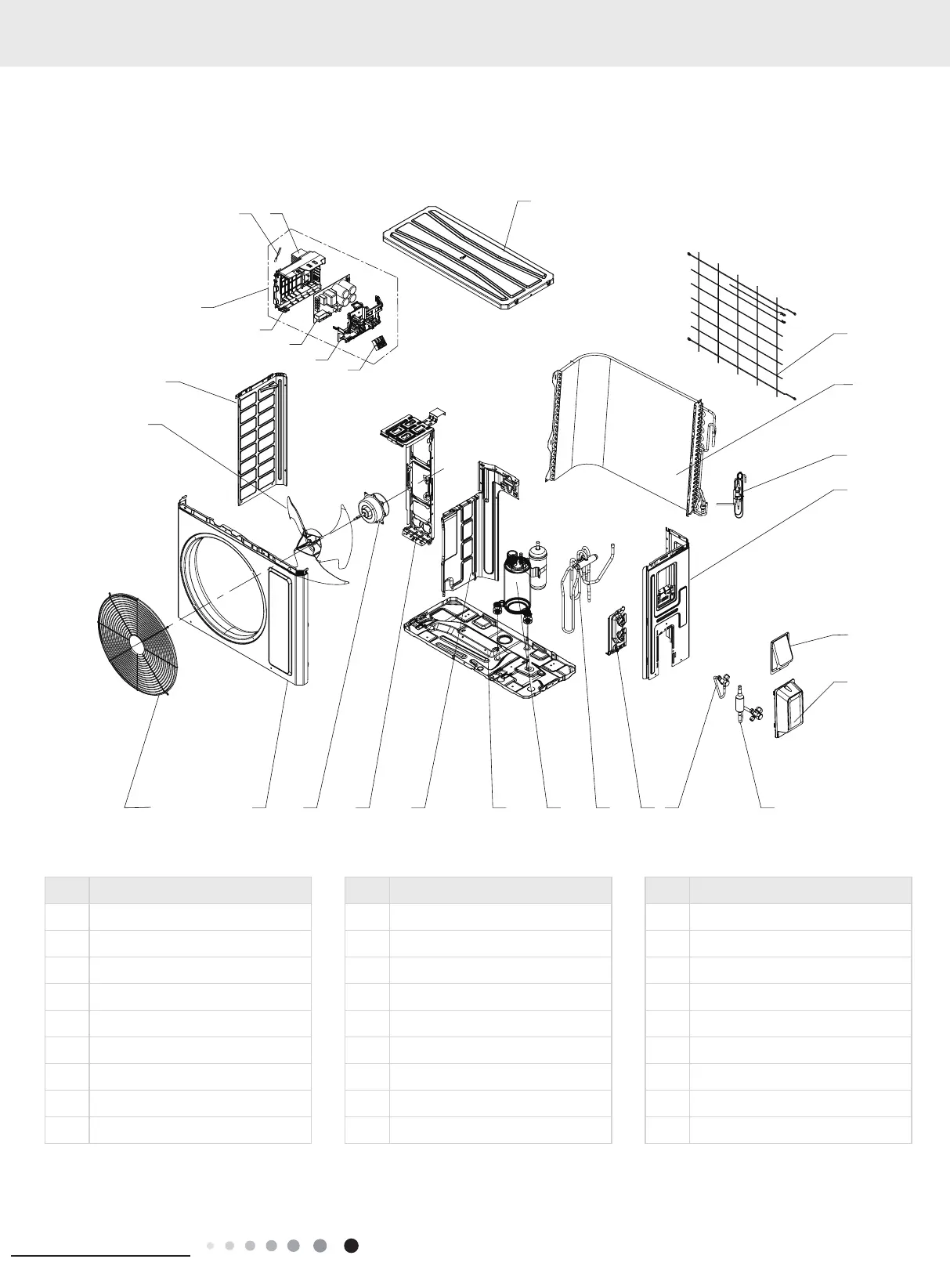

The component picture is only for reference; please refer to the actual product.
NO. Description
1 Coping
2 Rear Grill
3 Condenser Assy
4 Capillary Sub-Assy
5 Right Side Plate
6 Cover of Pass Wire
7 Valve Cover
8 Cut-off valve Sub-Assy
9 Cut-off valve
NO. Description
10 Valve Support
11 4-way valve assy
12 Compressor and Fittings
13 Chassis Sub-Assy
14 Clapboard
15 Motor Support
16 Brushless DC Motor
17 Cabinet
18 Front Grill
NO. Description
19 Axial Flow Fan
20 Left Side Plate
21 Electric Box Assy
22 Electric Box
23 Main Board
24 Electric Box Cover
25 Terminal Board
26 Temperatue Sensor
27 Radiator
Some models may not contain some parts, please refer to the actual product.
17 16 15 1214 811 91013
2
3
5
1
20
19
25
24
23
22
18
27
4
26
21
7
6
10.2 Outdoor Unit
4LIV09HP115V1AO 4LIV12HP115V1AO 4LIV09HP230V1AO 4LIV12HP230V1AO
