MAINTENANCE
N
147
6 DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS
6.1 Outdoor Unit
6.1.1 Disassembly and Assembly of the plates
Remarks: Prior to the assembly of the plates, make sure the power supply is cut off.

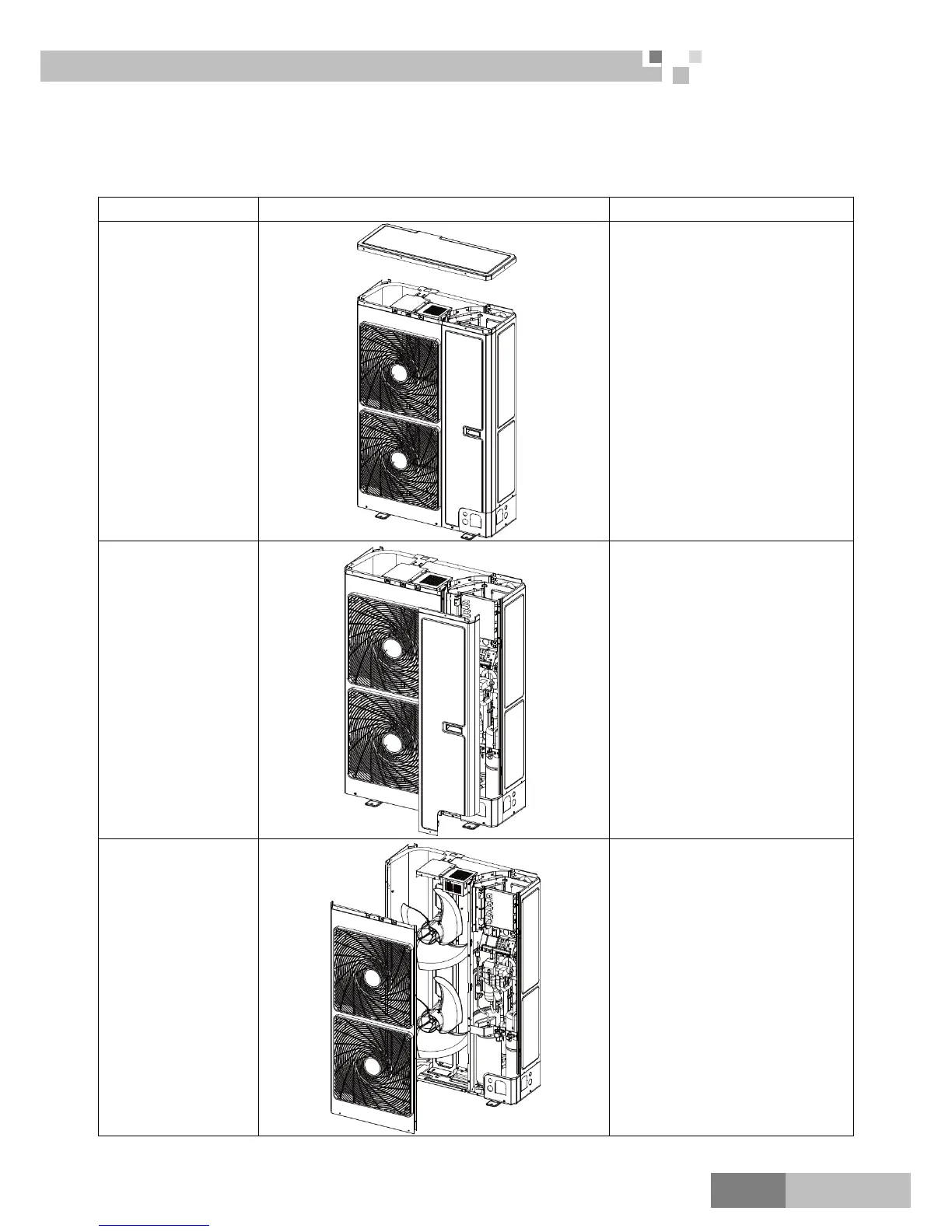

Steps Illustrations Operation Instructions
1.Disconnect the
coping plate

a) Unscrew the fixed screws of the
coping plate;
b) Remove the coping plate.
2.Disconnect the front
side plate

a) Unscrew the fixed screw of the
front side plate;
b) Remove the front side plate.
3.Disconnect the outer
case

a) Unscrew the fixed screws of the
outer case;
b) Remove the outer case.
