6.2 Remote Controller Introduction of YAW1F1

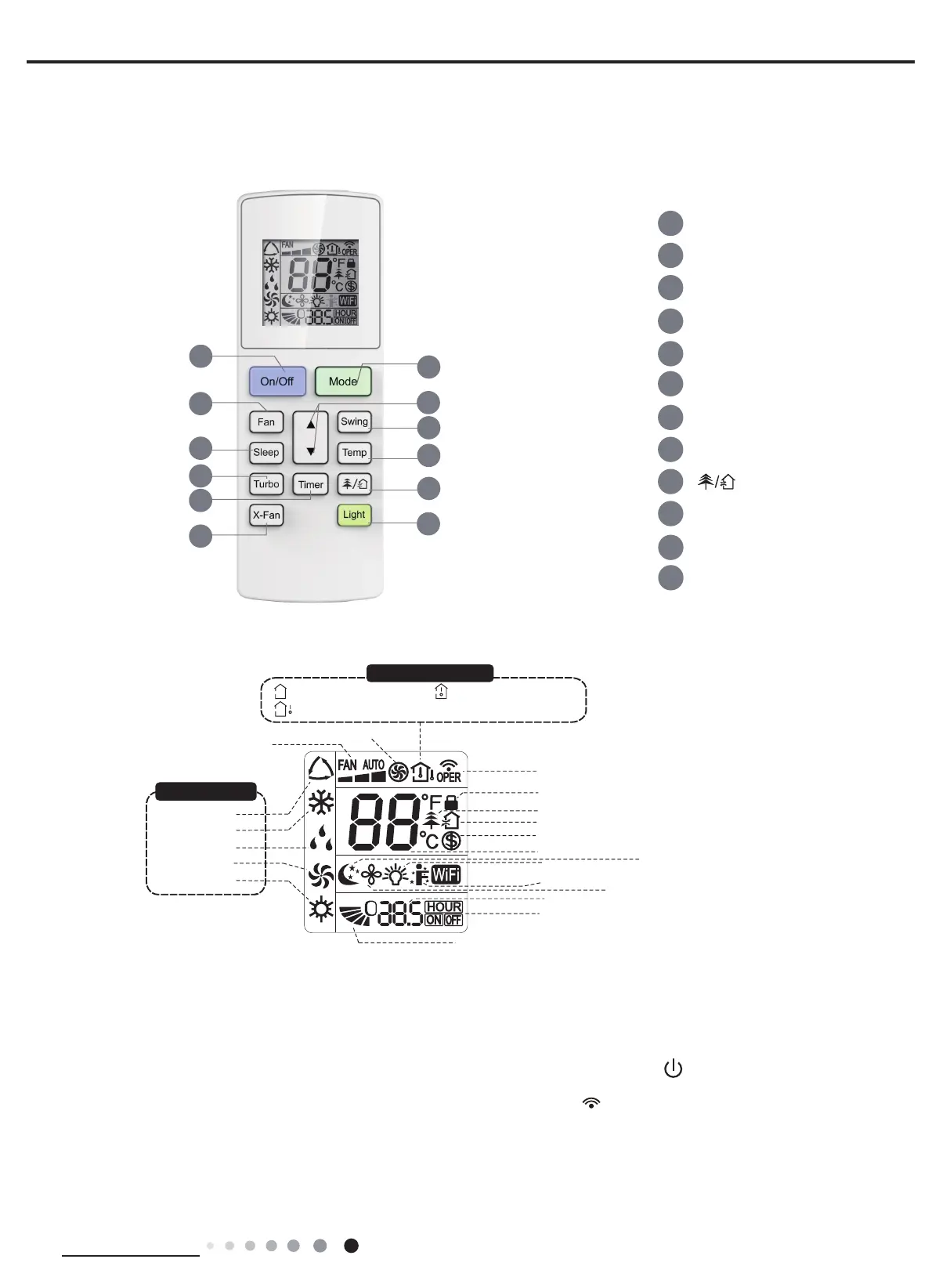

Icon Display on Remote Controller
Operation introduction of remote controller
Buttons on Remote Controller
1
2
5
4
6
7
8
11
12
9
On/Off button
▲/ button
3
Fan button
Swing button
X-Fan button
Turbo button
Light button
10
Temp button
Timer button
Sleep button
Mode button
▲
Send signal
Turbo mode
8ć heating function
Set temperature
Set time
TIMER ON /TIMER OFF
Child lock
Up & down swing
Set fan speed
Light function
Temp. display type
:Set temp.
:Outdoor ambient temp.
:Indoor ambient temp.
Sleep mode
Heat mode
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
I feel function
X-fan mode
health function
ventilation operation
● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, wh
ich
the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running
status
.
●After putting through the power, the air conditioner will give out a sound.Operation indictor " " is ON (red indicator). Af
ter that,
you can operate the air conditioner by using remote controller.
● Under on status, pressing the button on the remote controller, the signal icon " "on the display of remote controller wi
ll
blink once and the air conditioner will give out a “de” sound, which means the signal has been sent to the air conditioner
.
● Under off status, set temperature and clock icon will be displayed on the display of remote controller (If timer on, timer of
f and
light functions are set, the corresponding icons will be displayed on the display of remote controller at the same time); Under
on
status, the display will show the corresponding set function icons
.
This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the
model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
