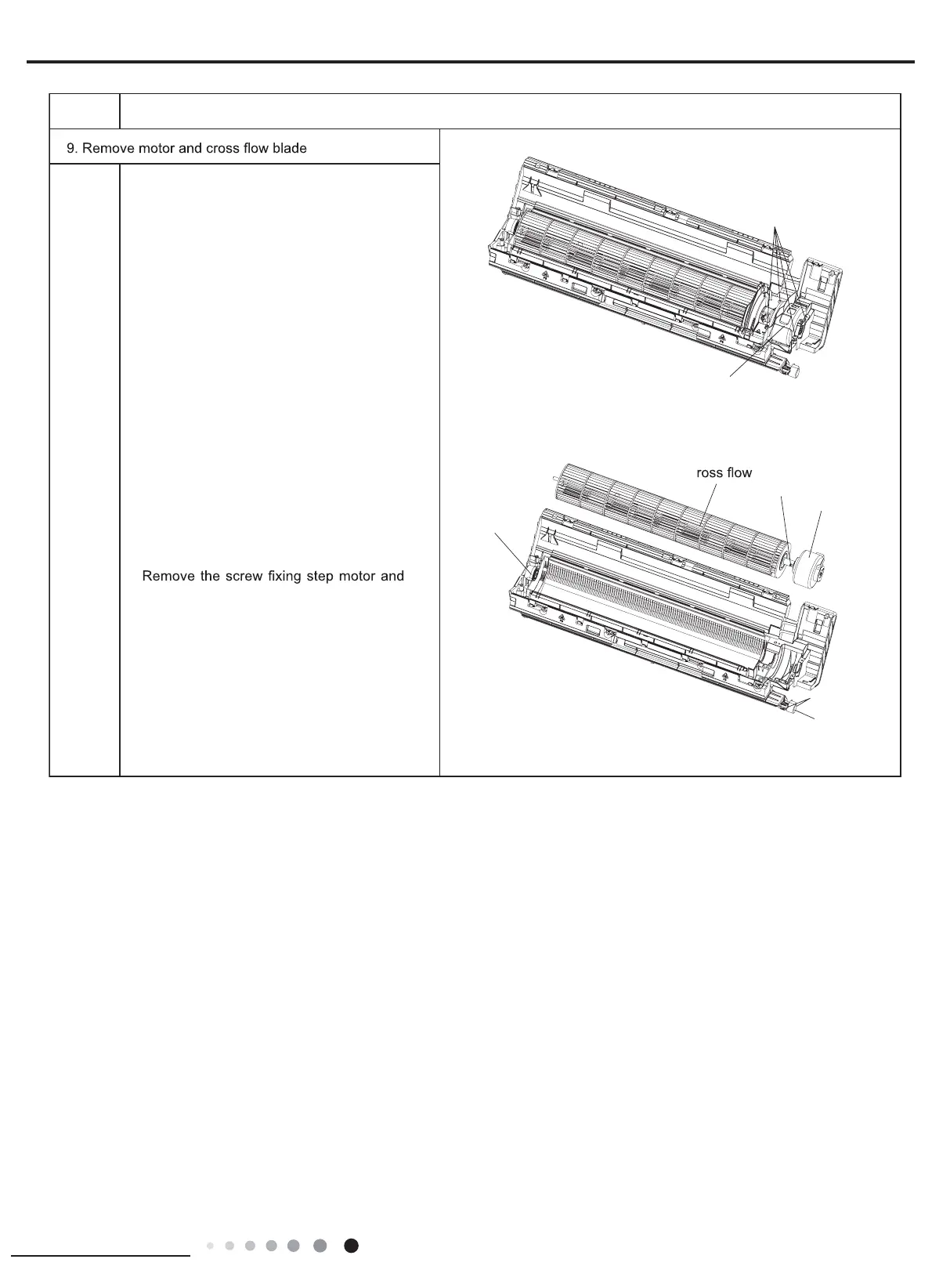

Installation and Maintenance
Service Manual
ProcedureStep
Remove the screws fixing motor clamp
and then remove the motor clamp.
Remove the screws at the connection
place of cross flow blade and motor; lift
the motor and cross flow blade upwards
to remove them.
Remove the bearing holder sub-assy.
then remove the step motor.
Screws
Screw
Motor clamp
Motor
C
Holder
sub-assy
Step motor
Screws
a
b
