11.2 Removal Procedure of Outdoor Unit
GWC24QEXF-D3DNC4C/O GWH24QEXF-D3DNC4C/O
NOTE:Take heat pump for example.
Step Procedure

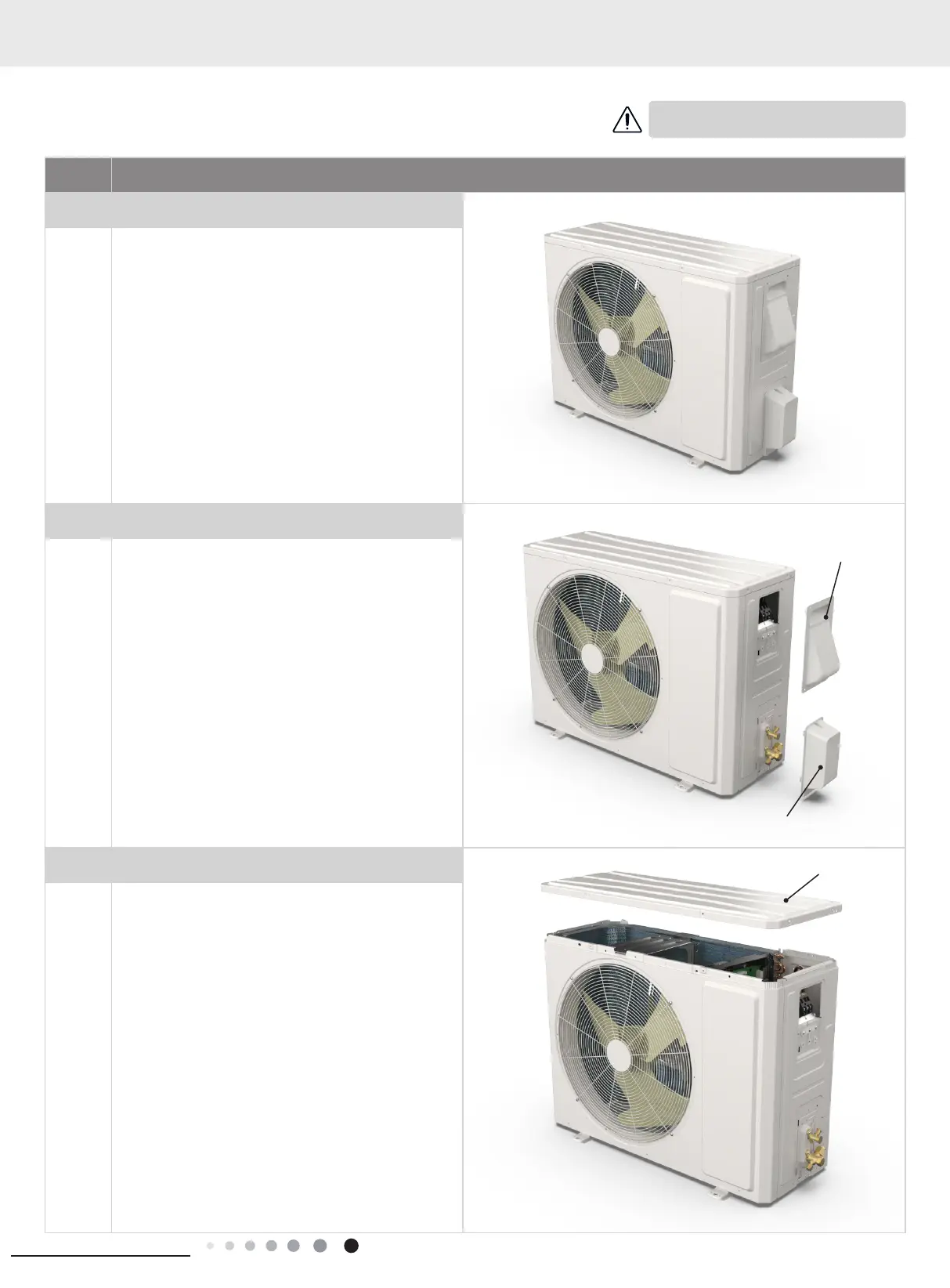

1. Before disassembly
2. Remove Cover of Pass Wire and valve cover
Remove the screws fixing Cover of Pass Wire
,
valve
cover and then remove them.
3. Remove top cover
Remove the screws xing top panel and then remove
the top panel.
valve cover
top cover
Caution: discharge the refrigerant
completely before removal.
Cover of
Pass Wire
To Next Page
