Gree GWH12MB-K3DNA3K/I User Manual

18
Technical Information
Service Manual

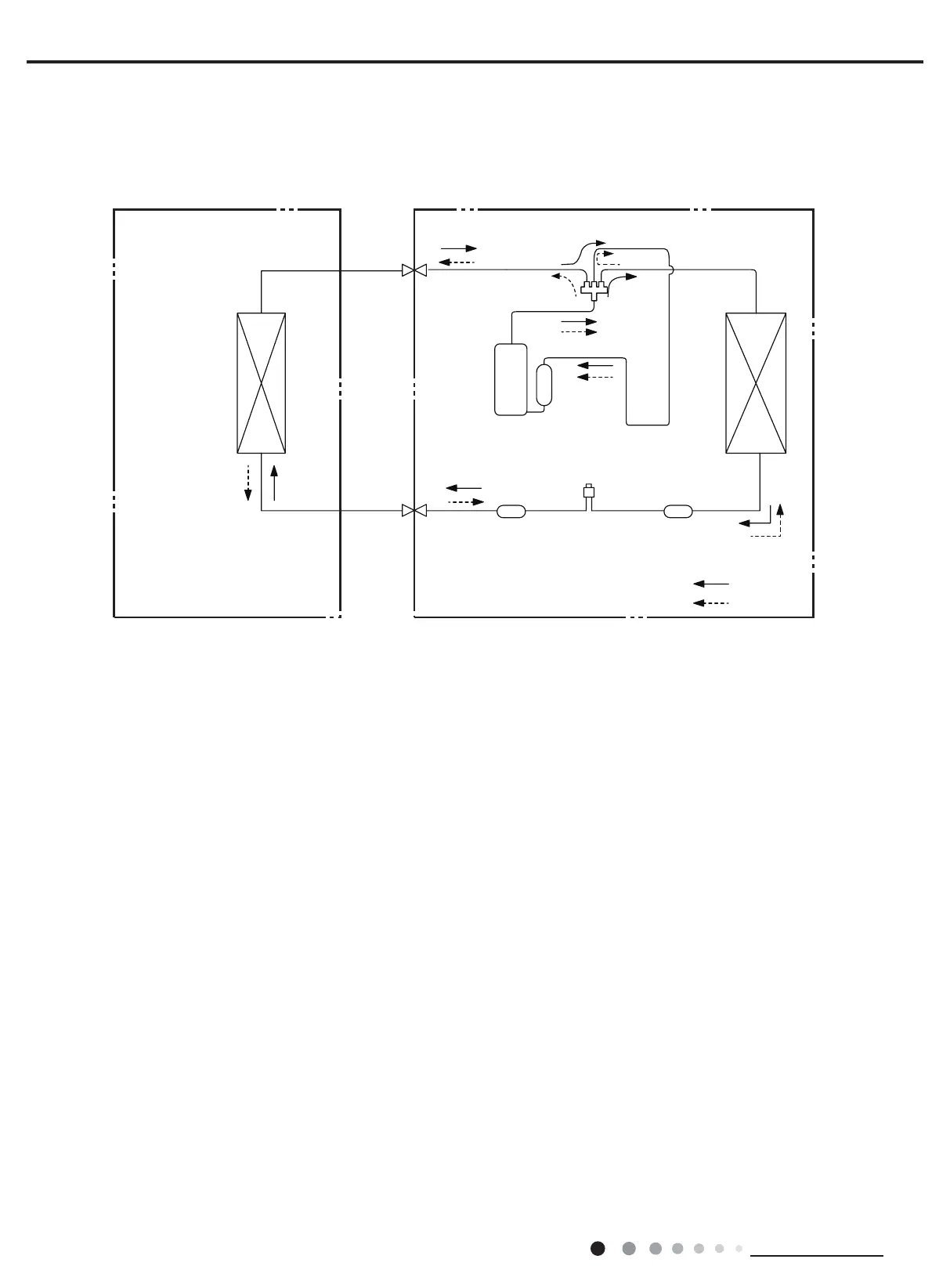

4. Refrigerant System Diagram
Cooling and heating model
Connection pipe specication:
Liquid pipe:1/4" (6mm)
Gas pipe:3/8" (9.52mm)
Indoor unit
Outdoor unit
Indoor unit
Outdoor unit
COOLING
HEATING
Accumlator
Accumlator
4-Way valve
COOLING
Discharge
Suction
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Valve
Valve
Liquid pipe
side
Gas pipe
side
Liquid pipe
side
Gas pipe
side
Compressor
Strainer
StrainerStrainer
Electron
expansion
valve
Electron
expansion
valve
Compressor

Gree GWH12MB-K3DNA3K/I Specifications

General

Brand	Gree
Model	GWH12MB-K3DNA3K/I
Category	Air Conditioner
Language	English
