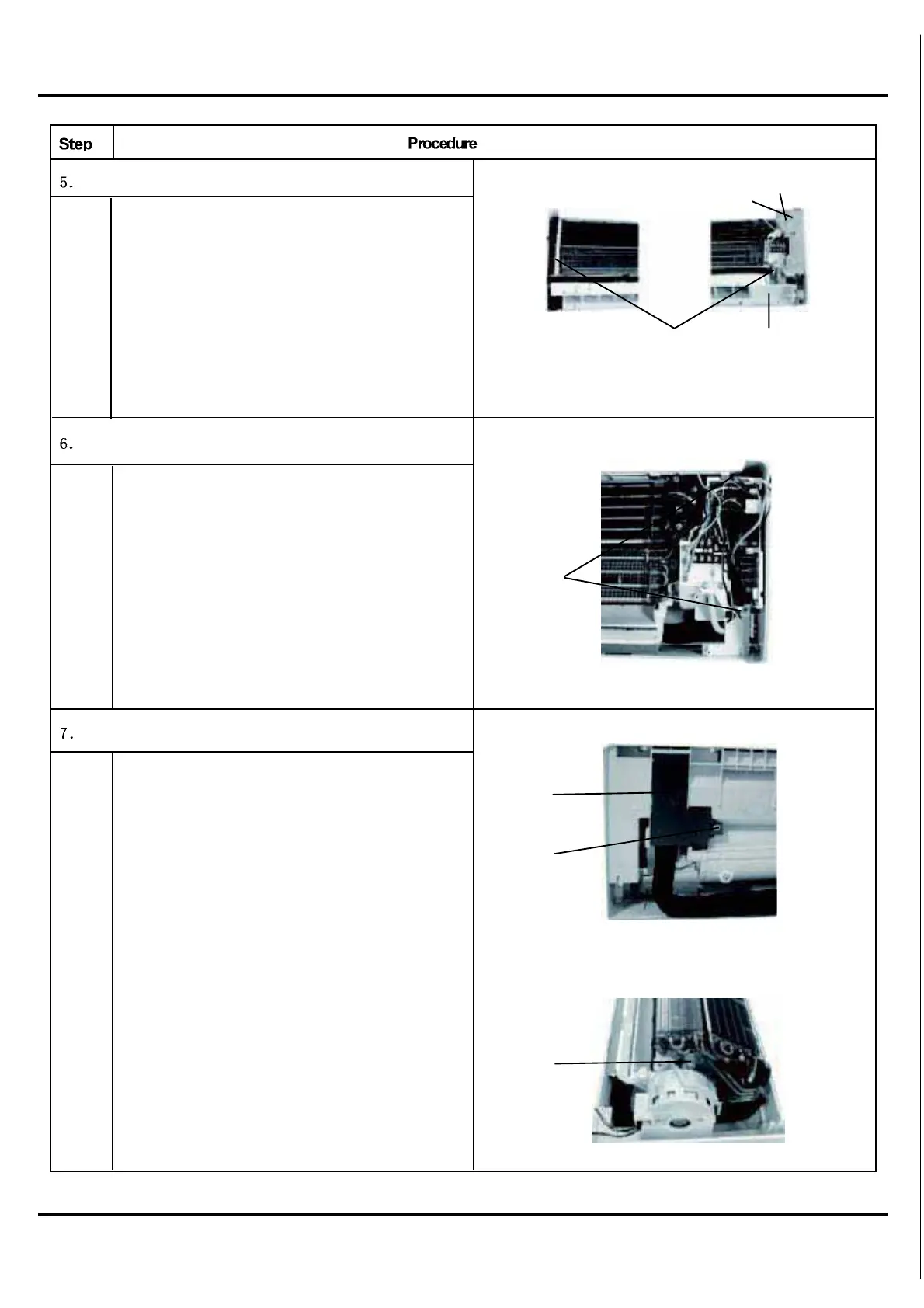

Removal Procedure
water tray
electric box
evaporator assy
Unscrew the ground screw on the electric box
cover and loose the clasps to remove electric
box cover.Pulll out the wiring terminal.Unscrew
the 2 screws fixing the water tray to remove the
water tray.
Unscrew the 2 screws fixing the electric box.
Unplug the motor terminal.Unscrew the three
ground screws.Lift the electric box upwards to
remove it.
Unscrew the screws fixing the clamp plate of rear
pipe at the back of evaporator to remove the plate.
Unscrew the screw the right of evaporator.
screws
screws
screw
screw
Clamp Plate
of Rear Pipe
water tray
earth screw
electric box cover
Remove
Remove
Remove
on
56
To Next Page
