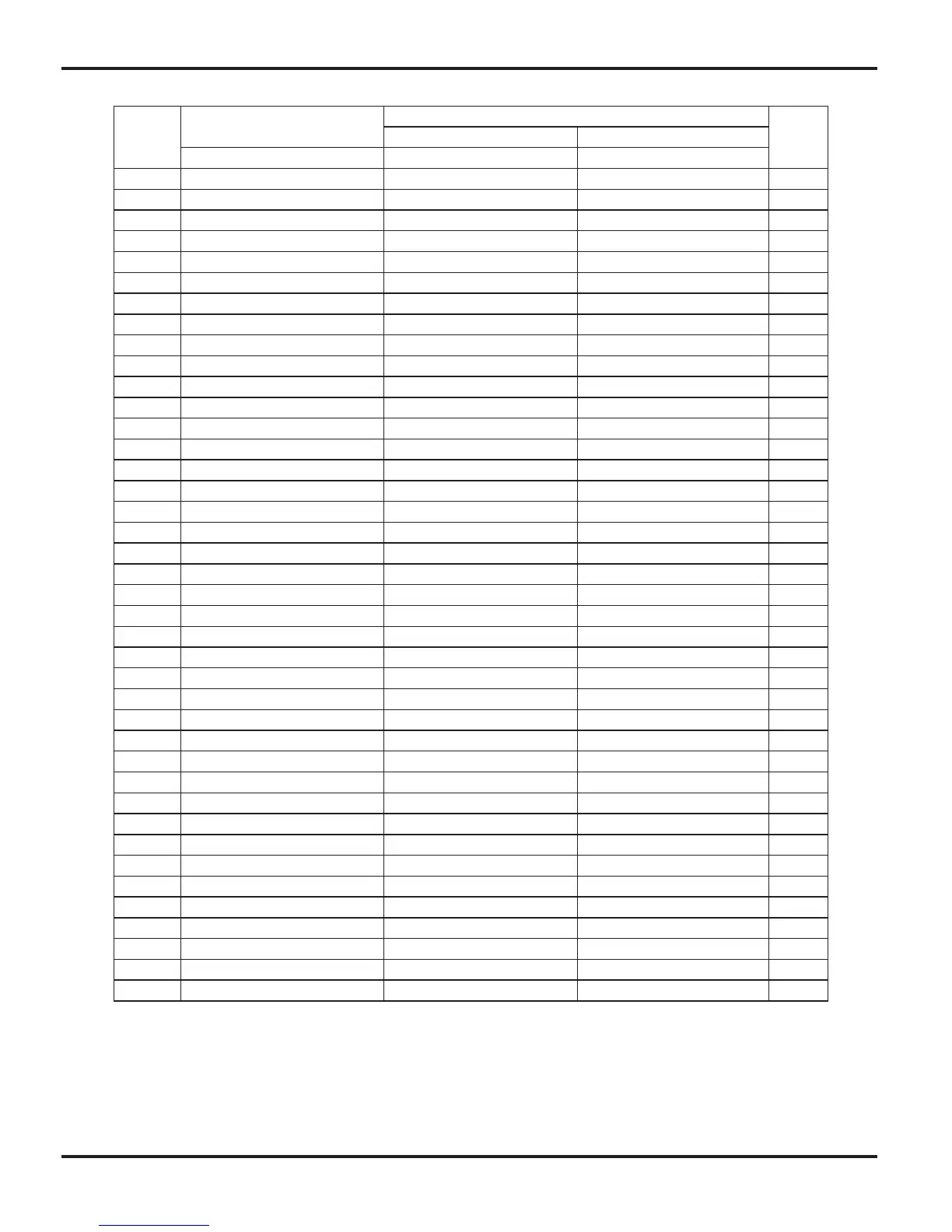

Exploded Views and Parts list
46
The data above are subject to change without notice.
NO.
Description
Part Code
Qty
GWH18MC-K3DNA2E/I GWH18MC-K3DNA4E/I
Product Code
CB181N03300 CB161N02900
1 Front Panel Assy 20012283 20012280 1
2 Filter Sub-Assy 1112208901 1112208901 2
3 Screw Cover 24252016 24252016 3
4 Baffl e Plate 26112228 26112228 1
5 Front Case Sub-Assy 20012288 20012288 1
6 Air Louver 1 10512116 10512116 1
7 Air Louver 2 10512117 10512117 1
8 Helicoid tongue 26112238 26112238 1
9 Left Axile Bush 10512037 10512037 1
10 Rear Case assy 12312214 12312214 1
11 Rubber Plug (Water Tray) 76712012 76712012 1
12 Ring of Bearing 26152022 26152022 1
13 O-Gasket sub-assy of Bearing 76512051 76512051 1
14 Cross Flow Fan 10352019 10352019 1
15 Evaporator Support 24212133 24212133 1
16 Evaporator Assy 1002937 1002937 1
17 Wall Mounting Frame 1252218 1252218 1
18 Motor Press Plate 26112178 26112178 1
19 Fan Motor 15012116 15012116 1
20 Pipe Clamp 26112164 26112164 1
21 Drainage hose 5230014 5230014 1
22 Step Motor 15012086 15012086 1
23 Crank 10582070 10582070 1
24 Display Board 30565042 30565042 1
25 Guide Louver 10512115 10512115 1
26 Axile Bush 10542008 10542008 1
27 Electric Box 2011210801 2011210801 1
28 Terminal Board 4201026601 4201026601 1
29 Electric Box Cover2 20112081 20112081 1
30 Main Board 30138736 30138736 1
31 Shield cover of Electric Box 1592092 1592092 1
32 Electric Box Cover1 20122128 20122128 1
33 Jumper 4202300102 4202300102 1
34 Capacitor CBB61 33010043 33010043 1
35 Electric Box Assy 20302115 20302115 1
36 Connecting Cable 400204056 400204056 1
37 Connecting Cable 40020318 40020318 0
38 Ambient Temperature Sensor 390000453 390000453 1
39 Temperature Sensor 390000632 390000632 1
40 Remote Controller 305100413 305100413 1
To Next Page
