79
Installation and Maintenance
Service Manual
a
b

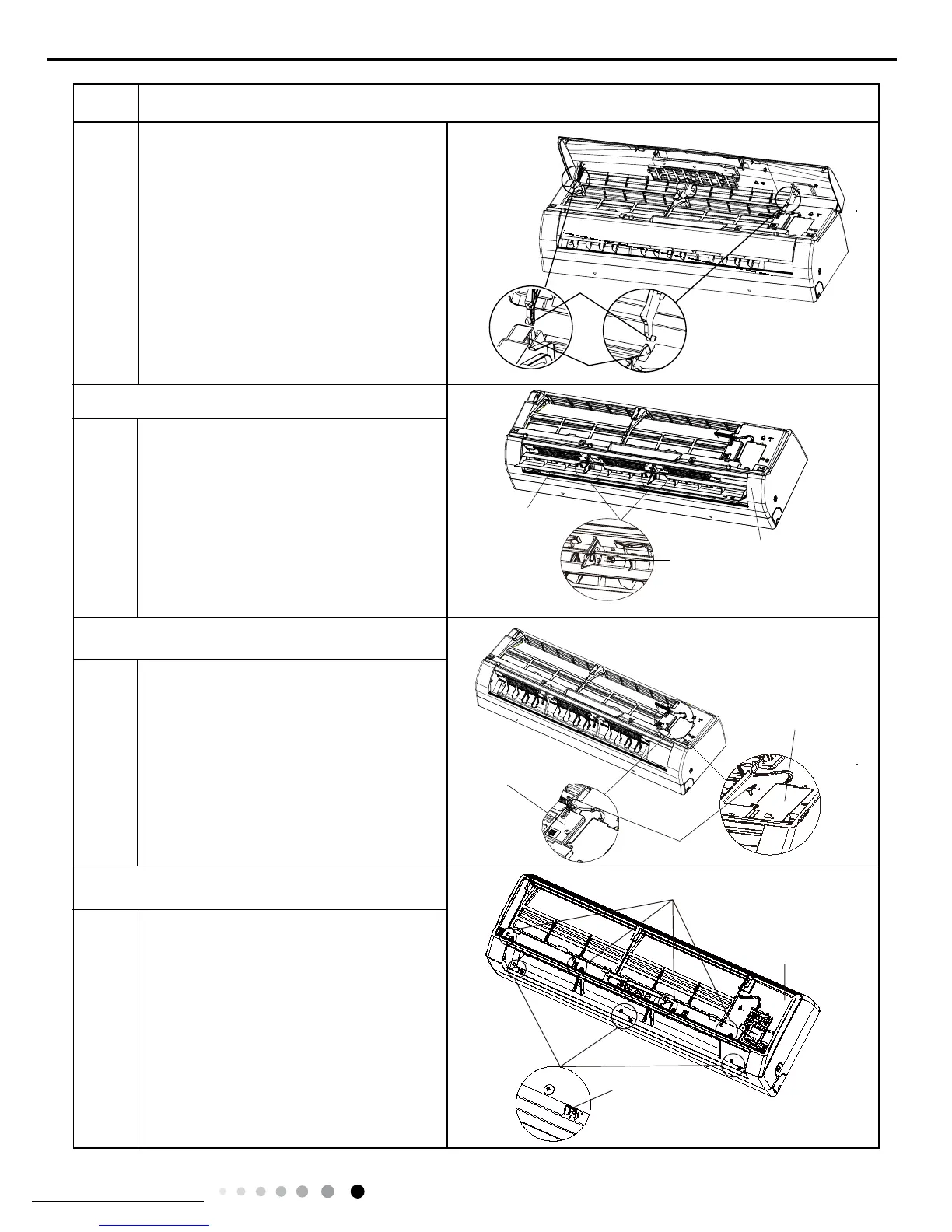

ProcedureSteps
4. Remove detecting plate and electric box cover 2
5. Remove front case sub-assy
Remove the screws fixing the detecting plate
then remove the detecting plate.
Remove the screws fixing the electric box
cover 2
then remove the electric box cover.
Remove the screws fixing front case.
Note:
1.Open the screw caps before removing the
screws around the air outlet.
2.The quantity of screws fixing the front case
sub-assy is different for different models.
screw caps
screws
front case sub-assy
3. Remove horizontal louver
Push out the axile bush on horizontal louver.
Bend the horizontal louver with hand and then
separate the horizontal louver from the
crankshaft of step motor to remove it.
location of step motor
horizontal louver
axile bush
panel rotation
groove
Separate the panel rotation shaft from the
groove fixing the front panel and then removes
the front panel.
electric box cover 2
screws
detecting plate
To Next Page
