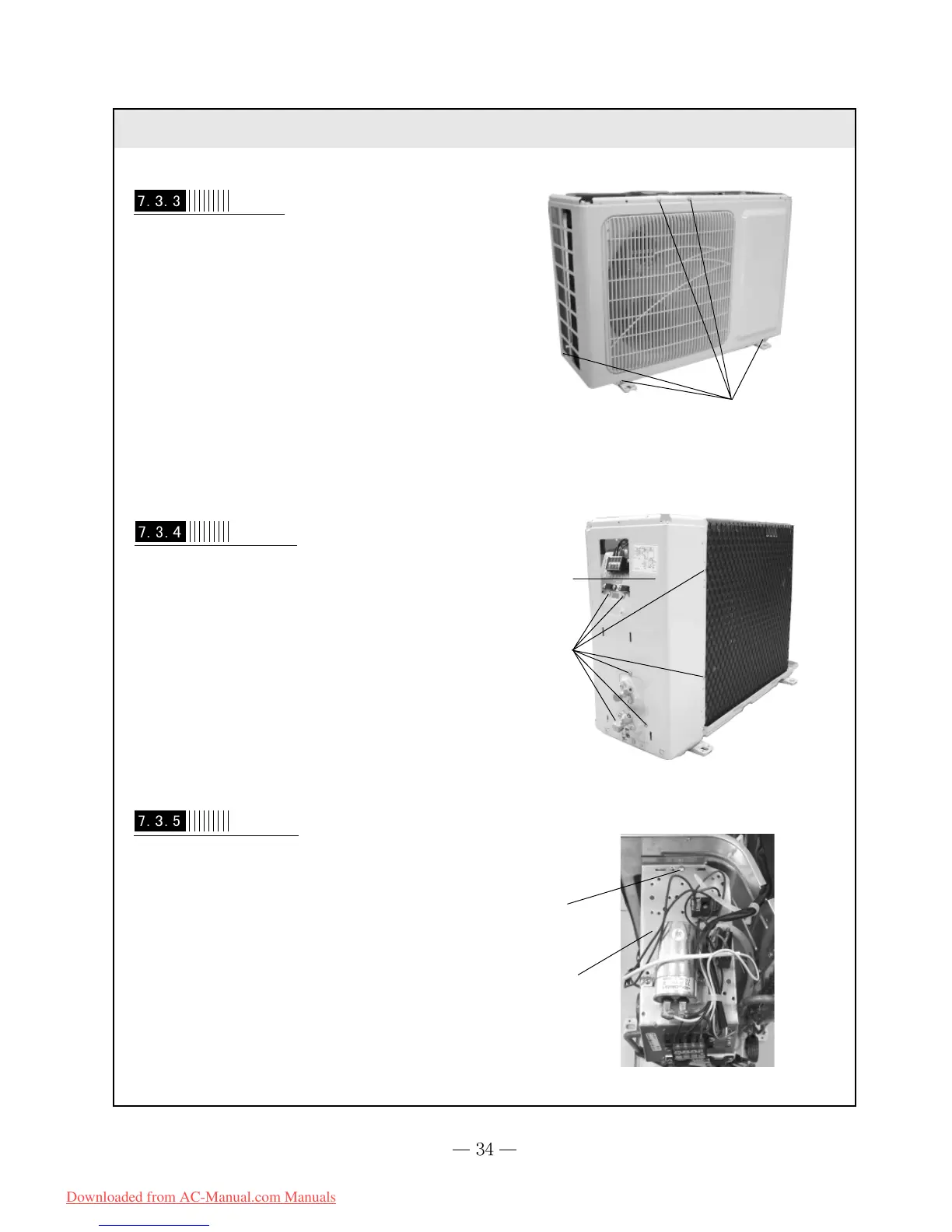

Operating Procedures / Photos
Disassemble Front Panel
Unscrew the 5 screws fixing the panel and dextro-
rotate the front panel to pull it out from groove.
Screws
Disassemble Right Side Plate
Unscrew the 2 screws fixing electric box ,and then
unscrew the 5 screws fixing the right side plate
to remove it.
Screws
Right Side
Plate
Disassemble Electric box
Screw
Electric box
Unscrew the screws fixing on the electric box,
loosen compressor, wiring terminal of 4-way
valve, take off electric box.
