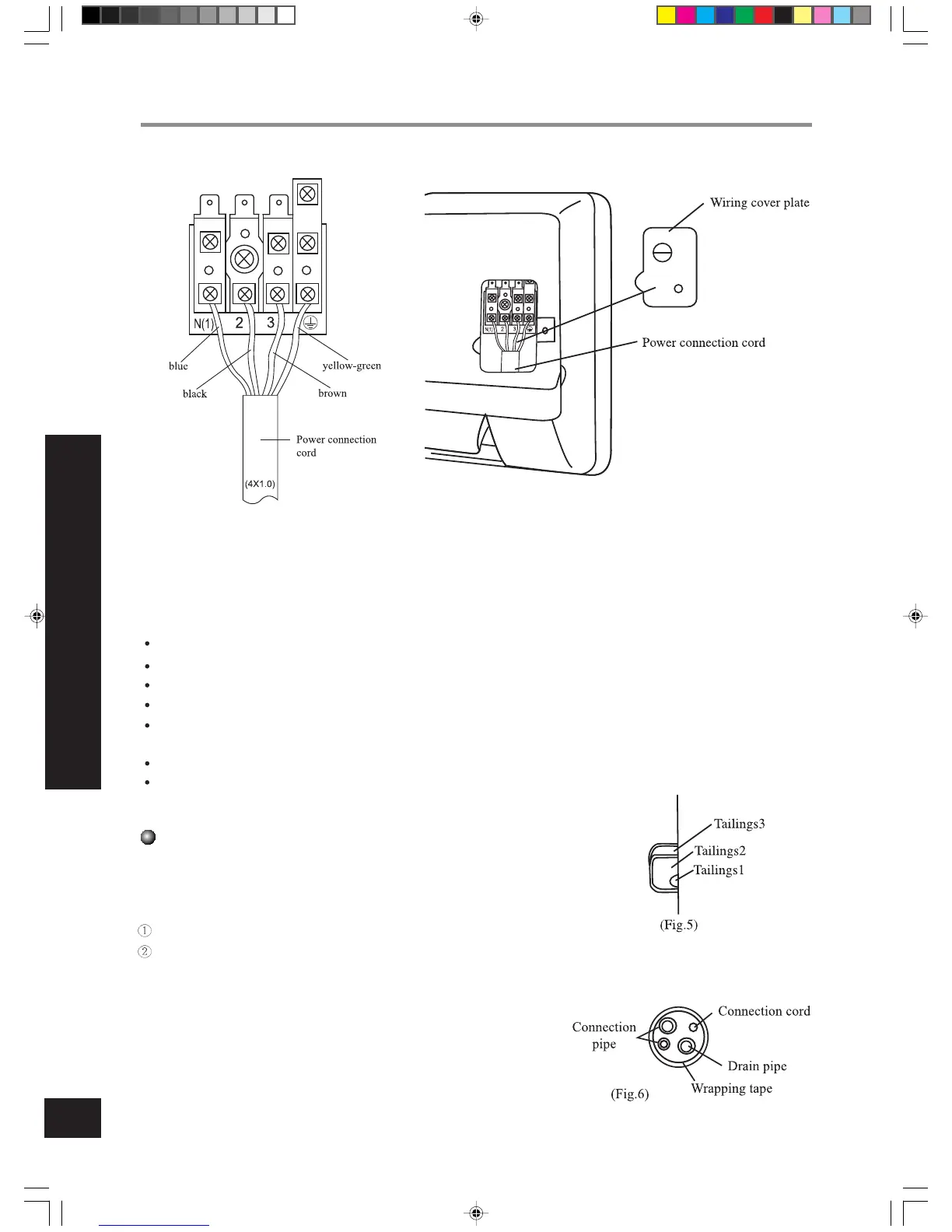

Install the indoor unit
1.When routing the piping and wiring from the left or right side of the
indoor unit, cut off the tailings from the chassis in necessary (shown in
Fig.5).
Cut off the tailings l when routing the wiring only.
Cut off the tailings l and tailings 2 when routing both the wiring and
piping.
2.Wrap the piping and wiring and pull them through the cut - off - tailings
hole (shown in Fig.6).
3.Hang the 2 mounting slots of the indoor unit on the upper tabs of the rear
panel and check if it is firm enough.
4.The height of the installed location should be 2.3m or more from the
floor.
How to install the indoor unit
Fig.4
NOTE:
All the electrical work must be done by qualified personnel according to the local rules and this manual.
The rated voltage and the exclusive circuit must be used.
Leakage circuit - breaker must be installed.
Please use specified fuse.
If the power supply cord of the unit is damaged, it must be replaced by the manufacturer or its service agent or
a similarly qualified person in order to avoid a hazard.
The diameter of power cord should be large enough.Use the exclusive wire to replace the damaged wire.
Wiring work should conform to relative standard.
HOW TO INSTALL THE INDOOR UNIT
27
