182
a
b

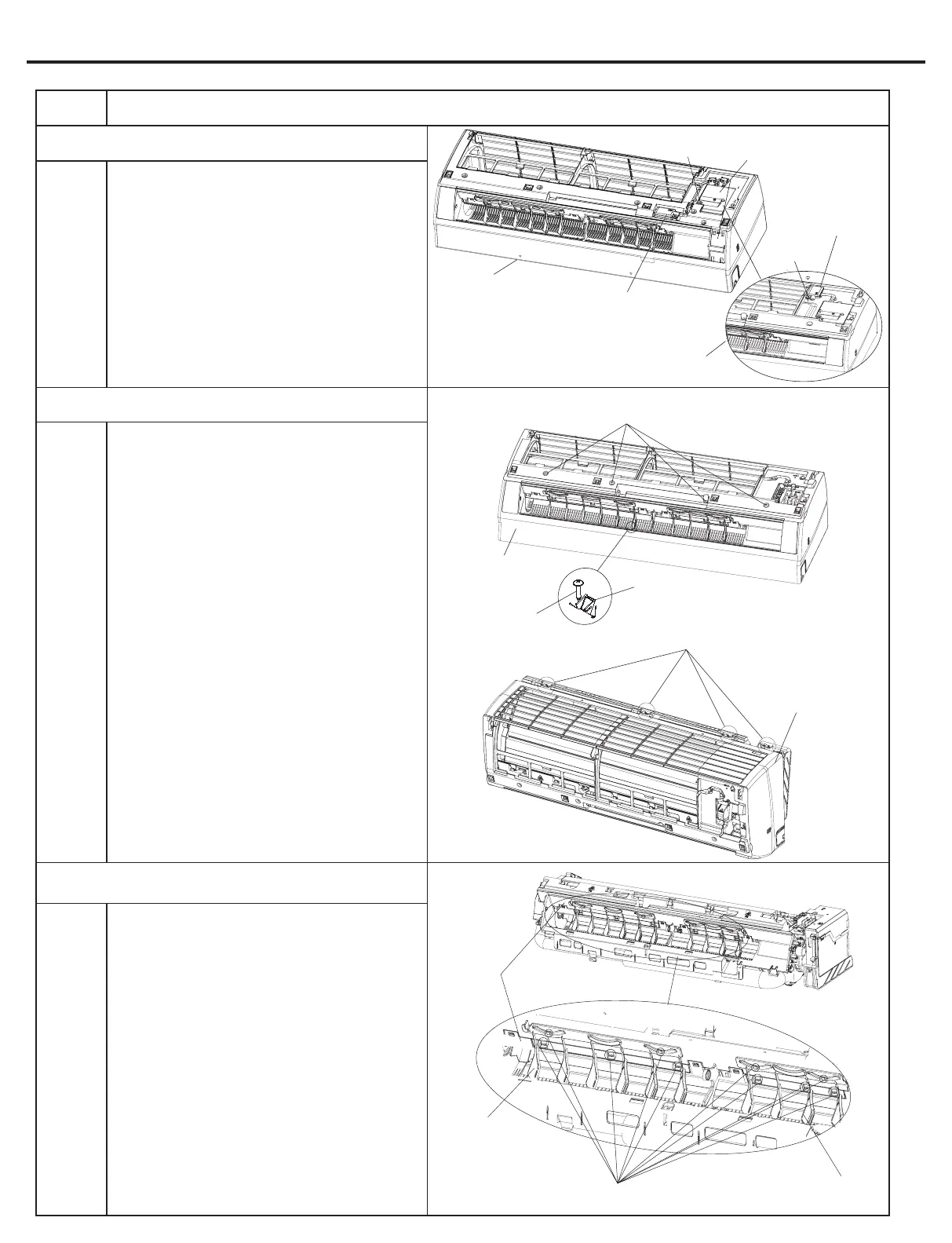

ProcedureStep
Remove the screws xing front case.
Note:
1.Open the screw caps before removing
the screws around the air outlet.
2.The quantity of screws fixing the front
case sub-assy is different for different
models.
Loosen the connection clasps between
vertical louver and bottom case to remove
vertical louver.
Loosen the connection clasps between
front case sub-assy and bottom case. Lift
up the front case sub-assy and take it out.
Electric box cover2
Detecting plate
for 12K
for 09K
Detecting plate
Screw
Screw
5. Remove front case sub-assy
6. Remove vertical louver
Front case
sub-assy
Front case
sub-assy
Clasp
Screw caps
Screws
Screw
Vertical
louver
Vertical
louver
Clasps
Bottom
case
4. Remove detecting plate and electric box cover 2
Remove the screw fixing electric box
cover 2 and then remove the electric box
cover 2.
Remove the screw fixing detecting plate
and then remove the detecting plate.
Note:The position of detection board(WIFI)
may be different for -different models.
To Next Page
