B
C
A
INDOOR UNIT INSTALLATION
Installation of Mounting Bracket
1. Attach the mounting bracket to the indoor unit.
2. Find the horizontal center of the indoor unit.
3. Mark the center of the indoor unit on mounting bracket for future reference.
NOTE: The center of the mounting bracket is not the center of the indoor unit.
4. Remove the mounting brackets from the indoor unit and position the mounting
bracket on the wall in desired location. Use centering mark on mounting bracket
for centering the indoor unit on the wall.
5. Mounting bracket must be installed horizontally and level right to left.
NOTE: Condensate drain pan has built-in pitch for proper drainage.
6. Secure mounting bracket to wall with a minimum of five screws, evenly spaced to
properly support indoor unit weight.
NOTE: It is recommended to install screw anchors for sheet rock, concrete block,
brick and such type of walls.
10
Model ABC
SAP09HP230V1AH
38.2 11.8 8.9
(
970)
(
300
) (
226
)
SAP12HP230V1AH
38.2 11.8 8.9
(
970
) (
300)
(
226
SAP18HP230V1AH
42.5 12.8 9.7
(1080) (325)
(
246
)
SAP24HP230V1AH
42.5 12.8 9.7
(1080) (325)
(
246
)

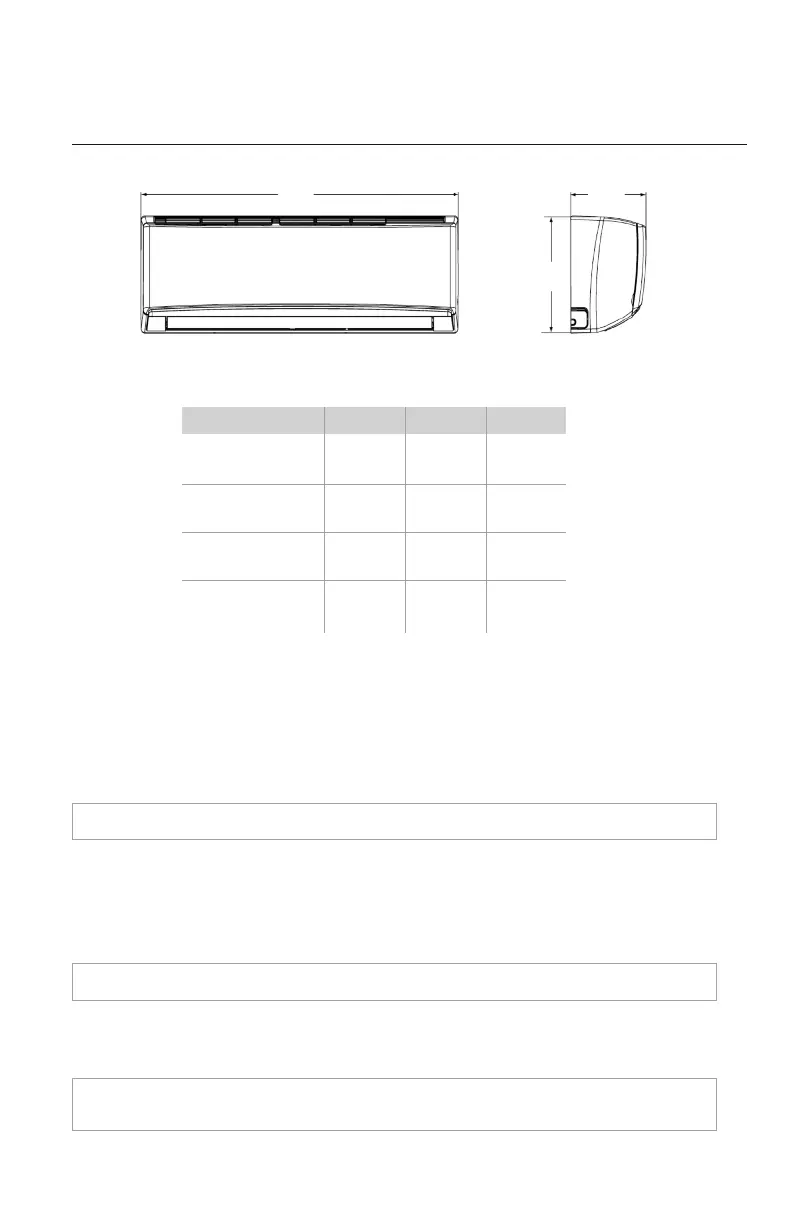

INDOOR UNIT DIMENSIONS in (mm)
