Greenlee GATOR ESG105LXR User Manual

Remote Cable Cutter
52087760 REV 08
© 2020 Greenlee Tools, Inc.

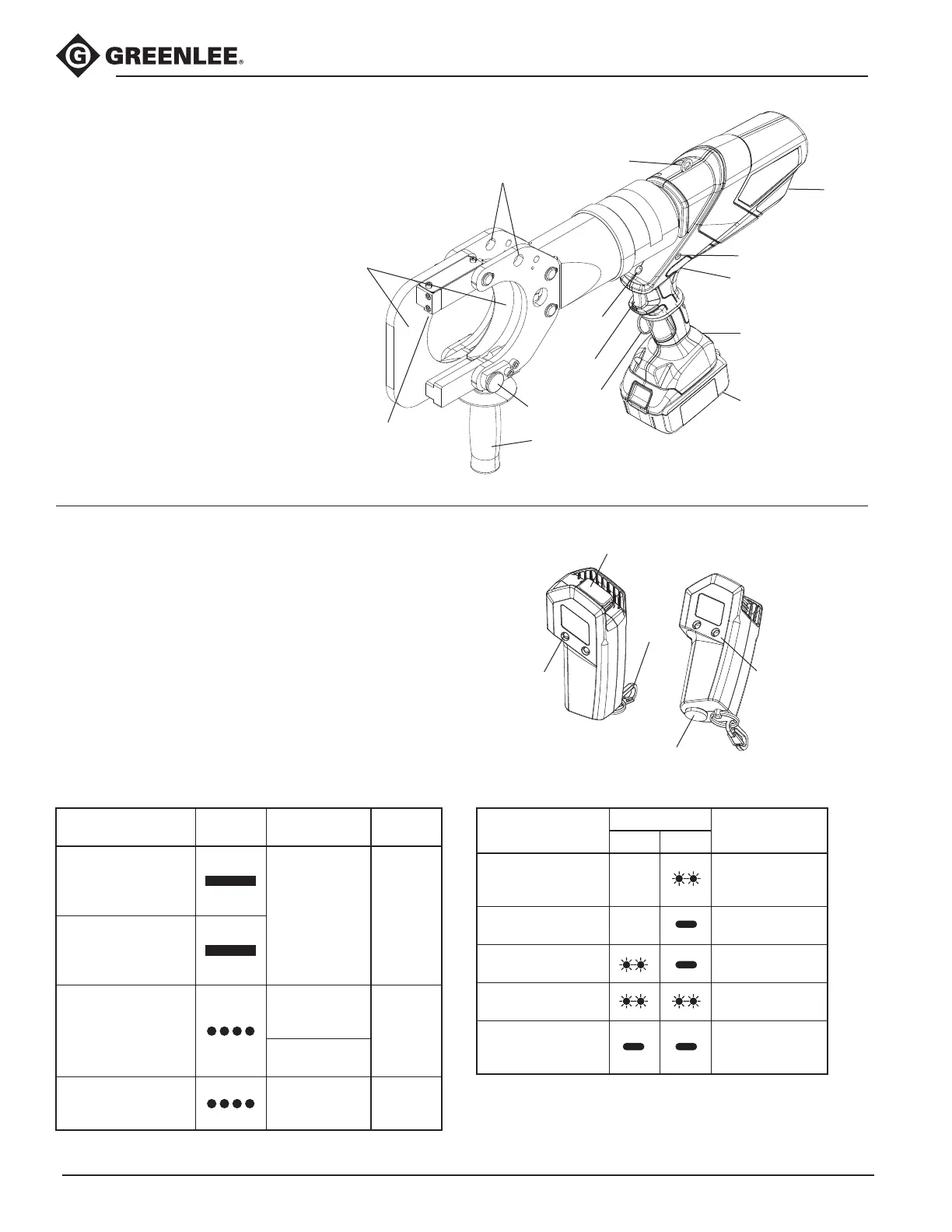

Tool Identification
1. Pull Pin
2. Handle (removable)
3. Blades
4. Lifting Tie Offs
5. Housing
6. Tool Indicator LED (red)
7. Retract Button
8. Working Tool LED (white)
9. OLED Screen
10. Battery
11. Trigger
12. Trigger Lockout
13. Blade Position Sensor
14. Ground Points
Remote Identification
1. Remote Operation Toggle Switch
2. Blade Movement LED (green)
3. Bluetooth Connectivity
4. Battery Port Cover LED (blue)
5. Carrying Strap Clip
3
2
1
8
9
7
6
5
4
11
12
14
13
10
2
1
5
3
4
BTC3GL
Remote LED Signals Table
What happens
Signal
What it means
Green Blue
Blue light flashes. Green
remains off.
Searching for
Bluetooth signal
from tool.
Blue light solid. Green
remains off.
Bluetooth signal
found and paired.
Green light blinks and
blue light is solid.
Tool blade is
moving.
Green and blue lights
both blink.
Battery power is
low.
Green and blue lights
are both solid. A sound
is heard from remote.
Cut is complete and
blade has retracted.
Tool Indicator LED Table
What happens
Signal
Red
What it means
What to
do
Tool will not start,
and constant light for
20seconds when trigger
is released
Battery
charge low
Change
or charge
battery
Tool will stop, and
constant light for
20seconds after trigger
is released
Tool will stop, and
flashing light for
20seconds when
trigger is released
Motor current
exceeds 20A
during cycle
Let tool
cool
Circuit has
become too hot
Flashing light for 20
seconds at end of cycle
Send tool
in for
service
