English (GB)
13

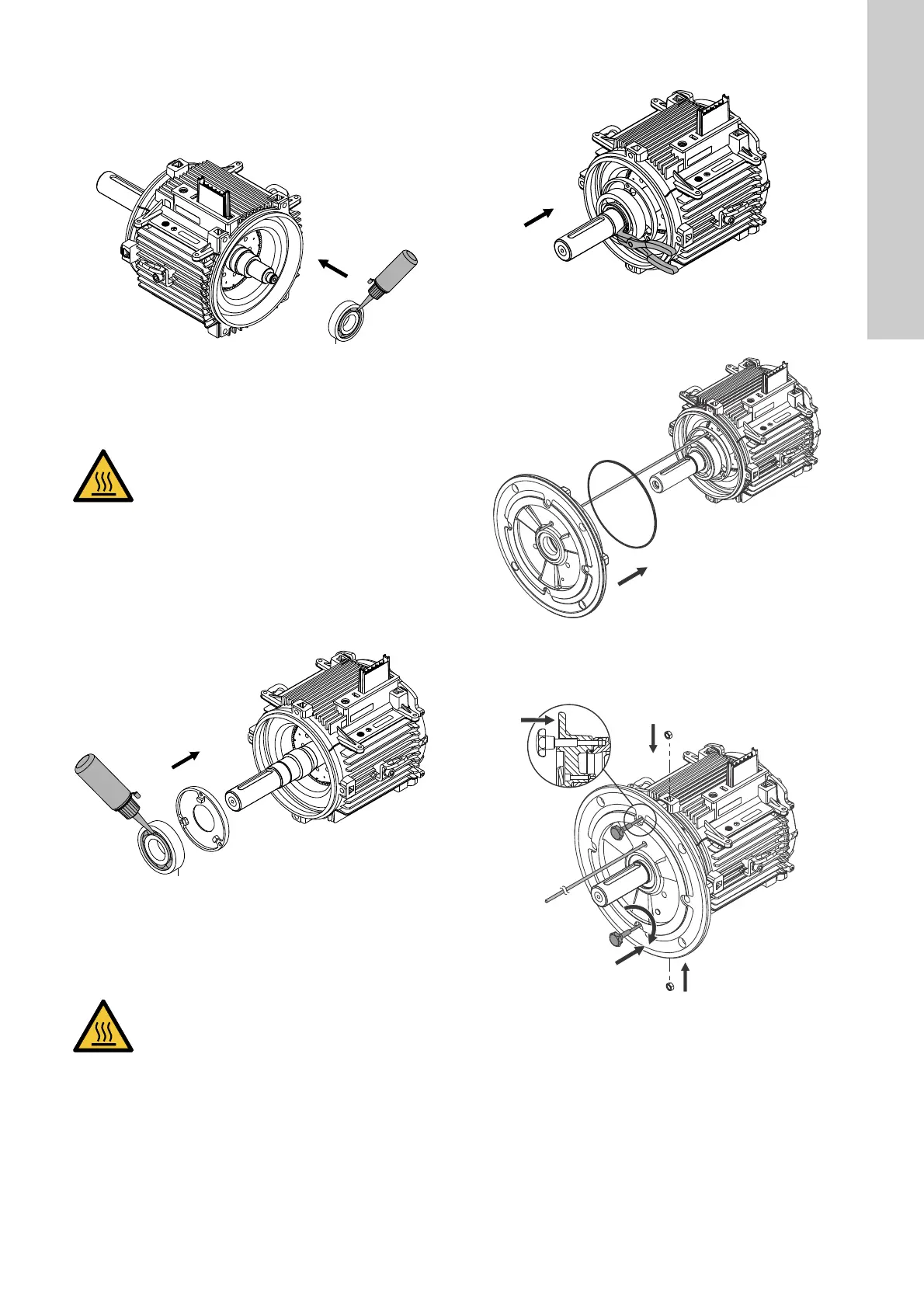

Assembly
1. Fit the O-rings (150b).
2. Clean the bearing journal in the non-drive end with a clean
cloth.
3. Lubricate the bearing.
Fig. 25 Lubricating the bearing
4. Heat the new bearing (154) to maximum 110 °C. Follow the
instructions of bearing and bearing heater.
5. Fit the heated bearing (154) on the shaft (172).
6. Fit the corrugated spring (158) in the non-drive end flange
(158a).
7. Fit the non-drive end flange (156a) on the stator housing.
8. Fit the washers (207a) and screws (206), and cross-tighten
the screws.
9. Clean the bearing journal in the drive end with a clean cloth.
10. Lubricate the bearing.
Fig. 26 Lubricating the bearing
11. Fit the bearing cover (155).
12. Heat the new bearing (153) to a temperature between 90 and
110 °C.
13. Fit the heated bearing (153) on the shaft (172).
14. Fit the locking ring (188).
15. Fitting the locking ring
16. Fit the drive end flange (156b). Use a thin pin to align the
holes of the bearing plates (155) with the holes of the flange.
Fig. 27 Aligning flange, bearing cover and stator housing
17. Use the flange mounting tool (Q) and nuts (208b) to fit the
drive end flange home onto the stator housing. See fig. 28.
Fig. 28 Fit the flange home on stator housing
TM06 6764 1617
CAUTION
Hot surface
Minor or moderate personal injury
- Use heat-resistant gloves.
TM06 6761 1617
CAUTION
Hot surface
Minor or moderate personal injury
- Use heat-resistant gloves.
TM06 6763 1617TM06 6776 1617TM06 6777 1617
