4. Electrical Power Supply
PNEG-634 2000 Top Dry Fan/Heater 31
Economy Control Center Interconnect
The Series 2000 Top Dry economy control center allows the fan/heater unit(s) to be stopped and started
at the economy control center. All timers and temperatures are set at the fan/heater unit(s). To wire the
economy control center to the master fan/heater unit do the following:
NOTE: DO NOT use solid wire for interconnection.
1. Run four (4) 16 gauge MTW/THHN type wires from the economy control center to the master
fan/heater unit.
2. Connect the wires as shown in Figure 4E.

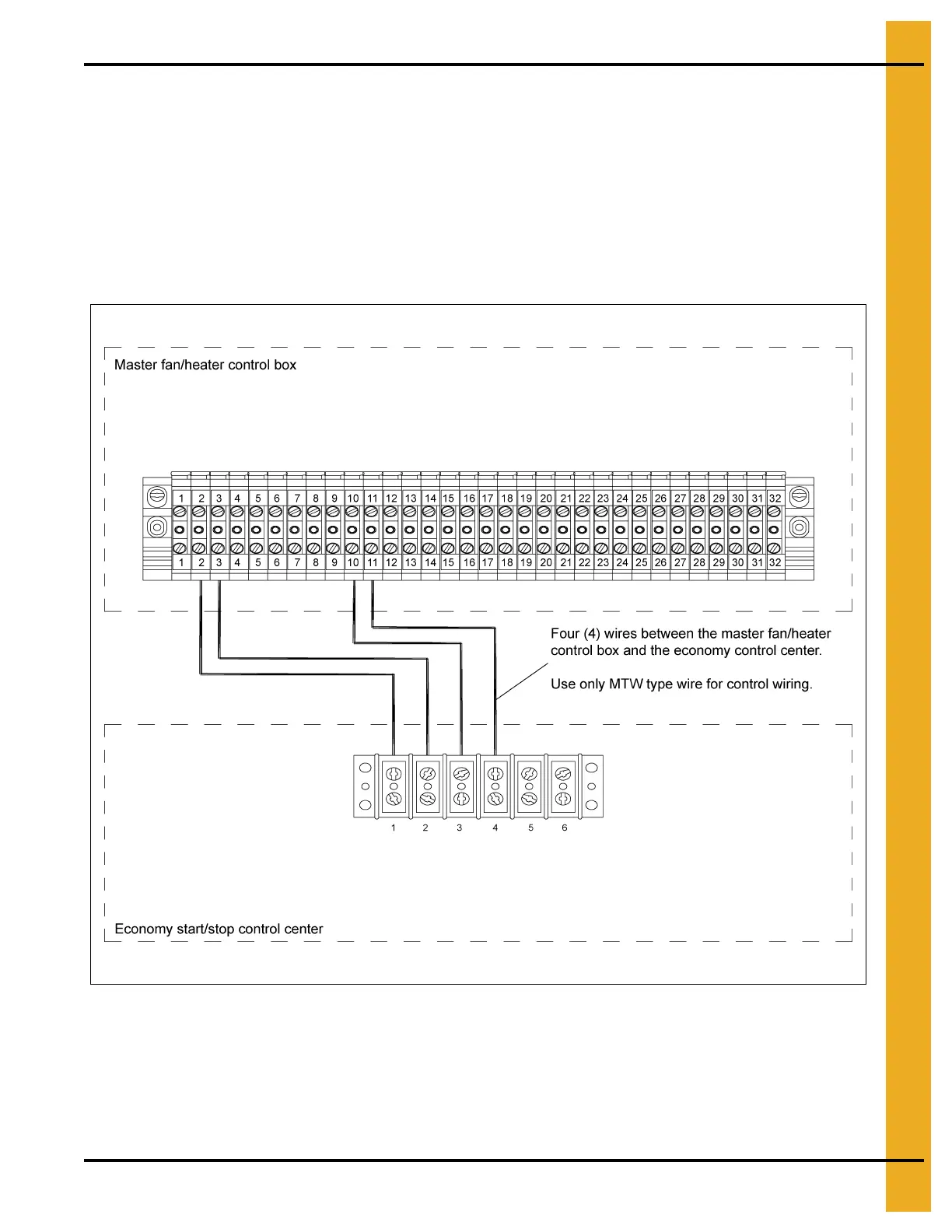

Figure 4E Wiring for the Economy Control Center to the Master Fan/Heater Unit
