OPERATION
21
TEST Status
TEST status is active when a MANU test or
AUTO test is running. Pressing STOP will
cancel the current test and any remaining steps
in the case of an AUTO test.
G
B
I R A CW D C W
E
F R E Q = 0 H z 6
0
100
k V
SET
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
MM A UN N A_2M A N U = * * * - 0 0

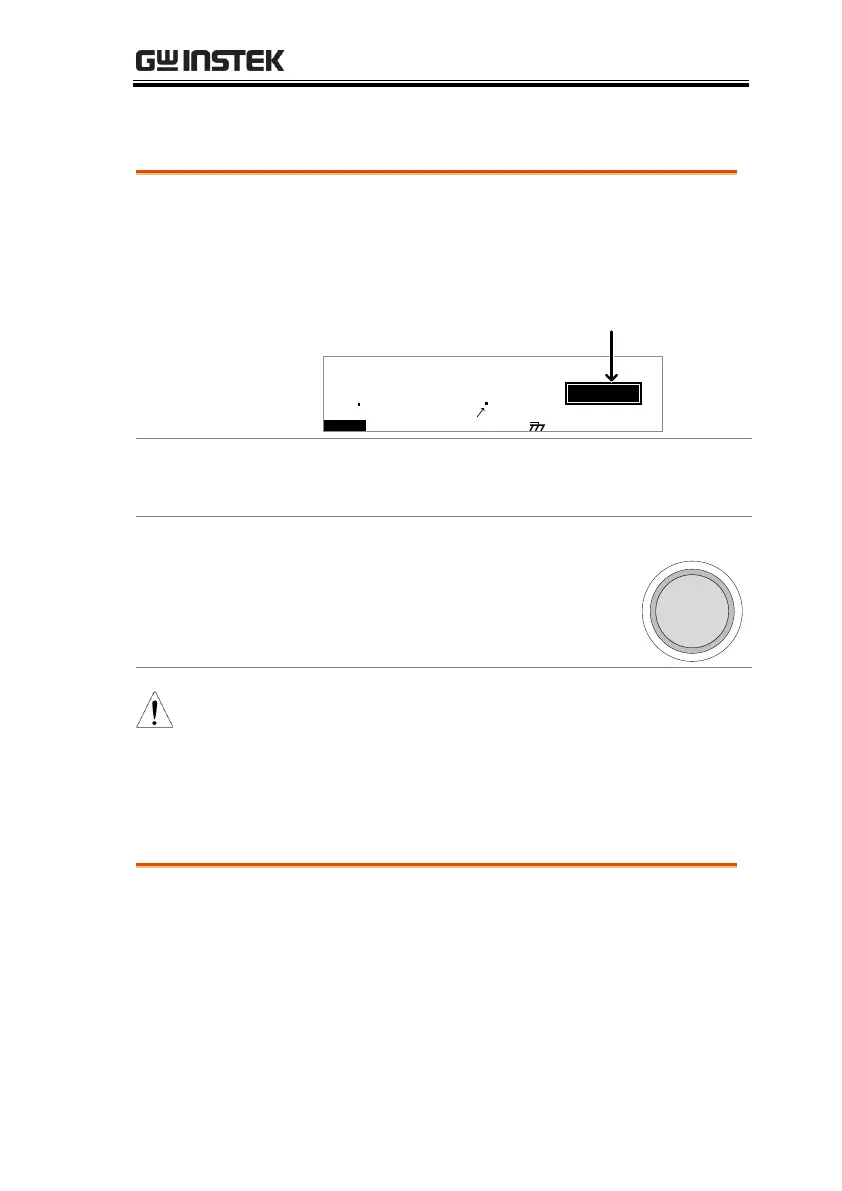

TEST status
T
m A
00 33
Get Test Results
Wait for the MANU/AUTO test to finish.
Abort MANU Test/AUTO Test
Press the STOP button
The tester will go into the STOP status.
If PASS/FAIL HOLD is active, the START button
can be used to continue to the next step in AUTO
mode whereas the STOP button can be used to
cancel the test in AUTO mode.
Results
When the tester is allowed to run to
completion, a MANU test or AUTO test result
is shown as a PASS or FAIL.
For MANU mode, the screen will show PASS or
FAIL on the screen and the PASS or FAIL
indicators will light up.
