Haemonetics PCS 2 User Manual

Describing the PCS2 Device Components 2-17
P/N 85266-30, Manual revision: A
DESCRIBING THE PCS2 CONTROL PANEL
The control panel, located on the inside of the hinged PCS2 cabinet cover,
consists of a display screen and a keypad comprised of several groups of keys.
The control panel allows the operator to interact with the system by entering
appropriate data and observing feedback. There is a protective plastic coating on
the keypad, which allows for efficient cleaning and disinfecting.

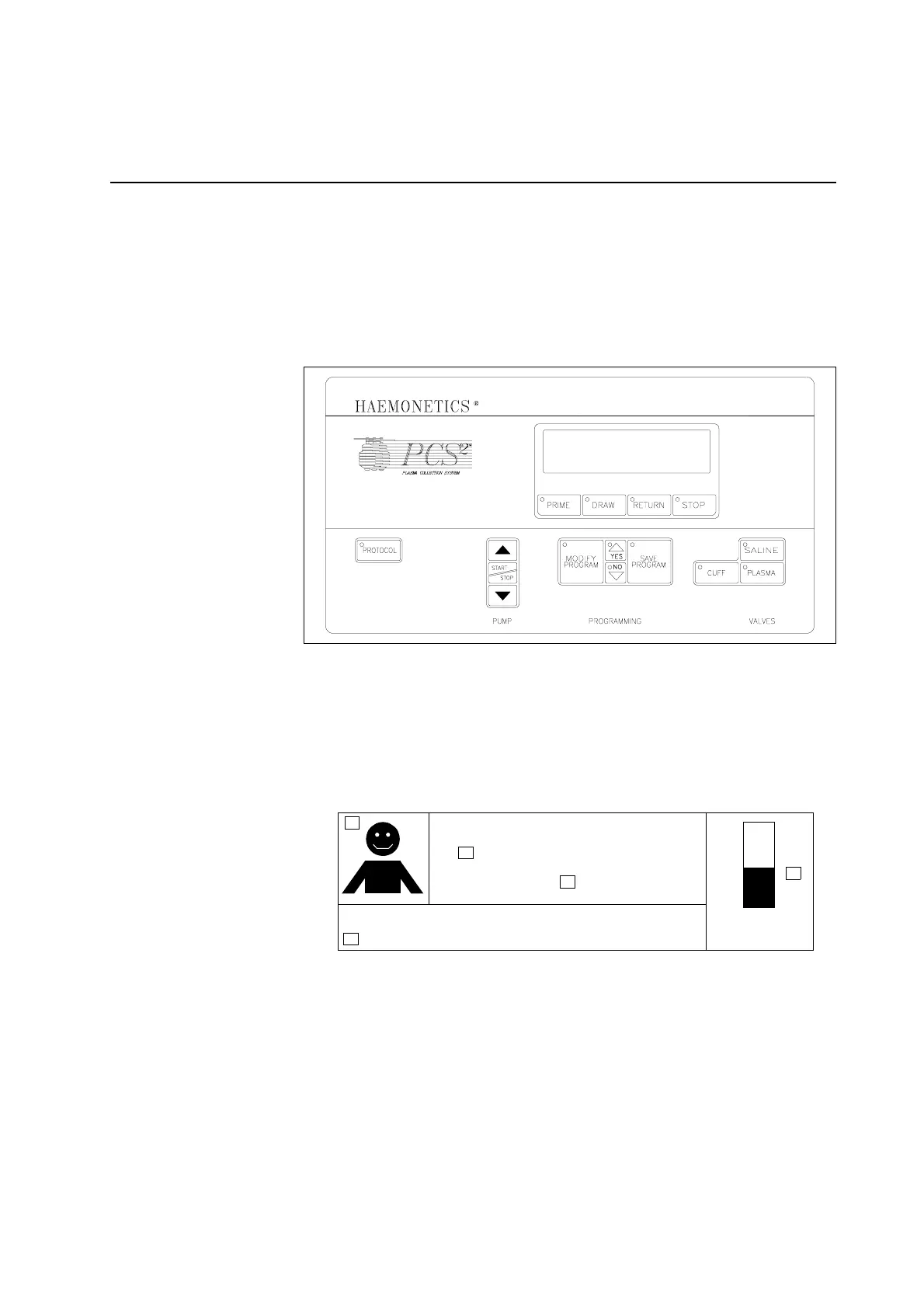

Figure 2-12, The PCS2 control panel components
Display screen The control panel display screen will provide data related to procedure status, as
well as donor status, throughout the entire procedure. The information will be
displayed in specific areas as follows:
Figure 2-13, Example of a PCS2 display screen message
Message area
The center portion of the screen display will provide textual information about
the current state (or mode) of operation, while the actual cycle in progress will be
(visible in the upper right corner).
1. Display screen
2. Mode control keys
3. Protocol key
4. Pump control keys
5. Programming keys
6. Cuff key
7. Valve control keys
1
3
2
4
6
5
7
1. Active state message.
2. Procedure acronym.
3. Operating state icon.
4. Procedure statistics area.
5. DPM bar graph reading.
ACRONYM 0
READY
Pump Plasma NaCl Cuf VPro
0 30/600 0 0 0
DPM
3
4
2
1
5
