18

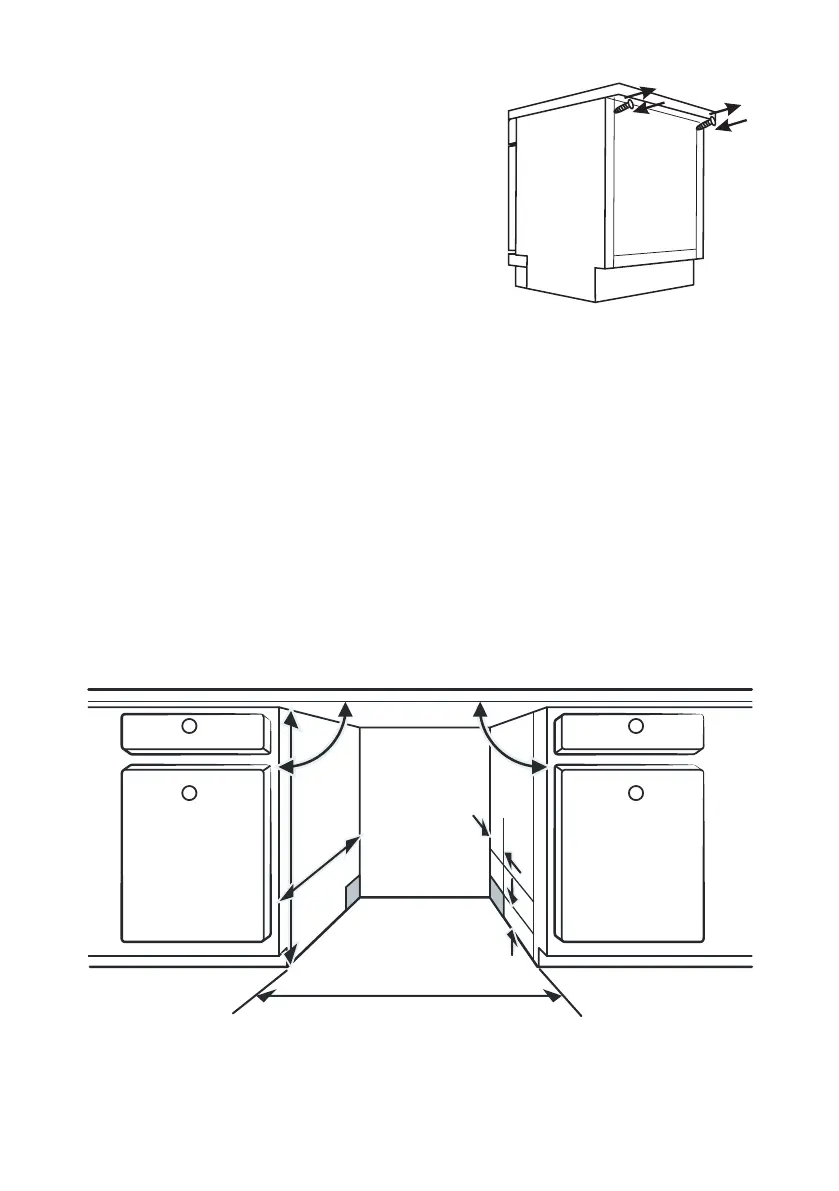

Underneath existing work top
(When fitting beneath a work top)
In most modern fitted kitchens there is only
one single work top under which cabinets
and electrical appliances are fitted. In this
case remove the work top of the dishwasher
by unscrewing the screws under the rear
edge of the top (a).
INSTALLATION INSTRUCTION
a
a
b
b
Attention!
After removing the work top, the screws must be screwed again under the rear edge of the top
(b).
5.6 Built-In Installation(for the integrated model)
Step 1. Selecting the best location for the dishwasher
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
Illustrations of cabinet dimensions and installation position of the dishwasher.
1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to
cabinet.
90
o
80
100
820mm
580mm
90
o
Electrical, drain
and water supply
line entrances
600 mm(for 60cm model)
450 mm(for 45cm model)
Space between cabinet
bottom and floor
