INSTALLATION
PAGE 17
ENGLISH
SECTION C

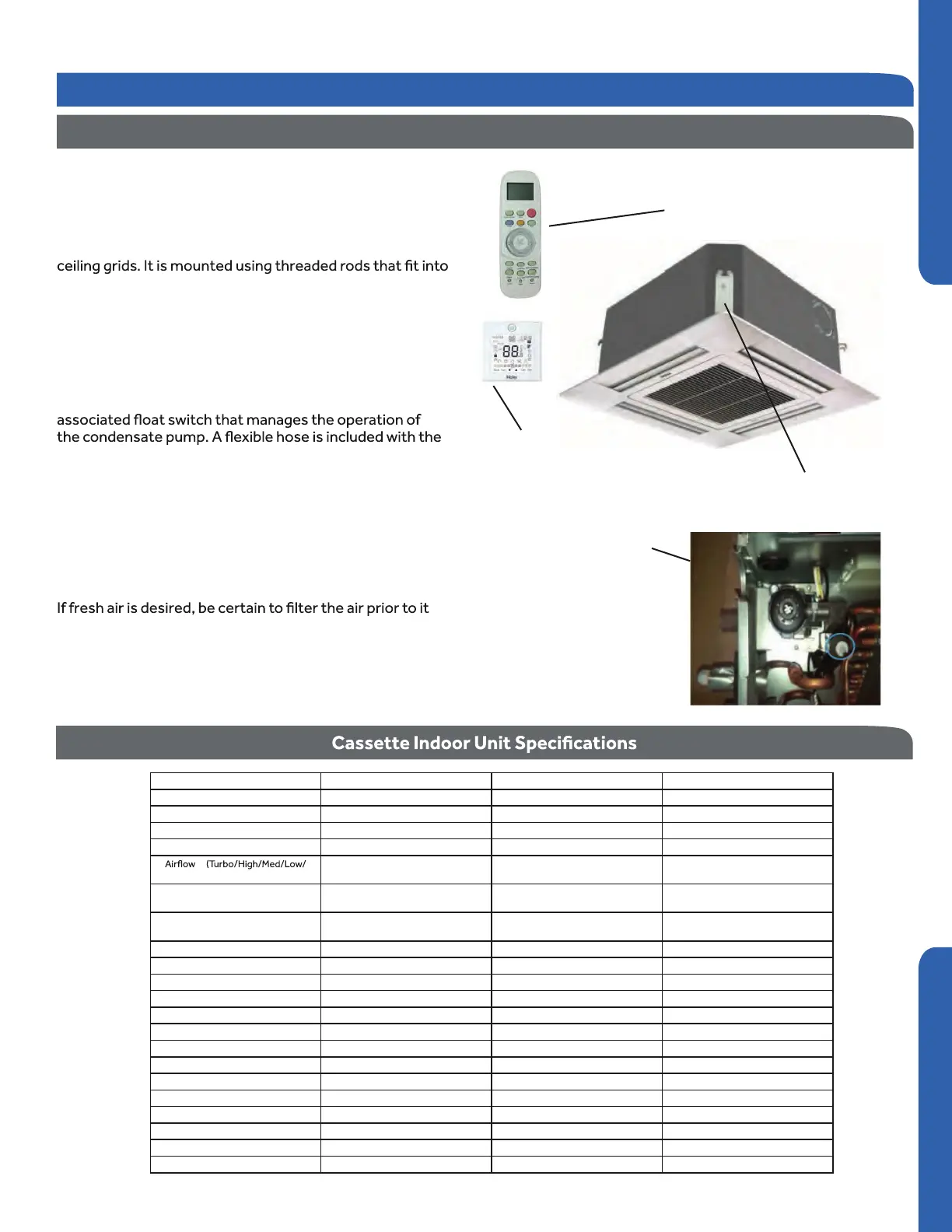

Cassette Product Information
The Cassette Indoor Air Handler ships consists of a cassette
assembly and operational louver. The Cassette Indoor Unit
is operated via a factory supplied remote control. Wired
controller is optional.
The Cassette unit will install between standard dropped
brackets that are located at all four corners of the cassette
assembly.
The Cassette unit receives 230 volt line voltage from a
connection at the outdoor condensing unit. There is no
requirement for independent line voltage connections.
The cassette unit has a built in condensate pump and
Cassette unit. This hose connects the cassette condensate
drain outlet to the buildings condensate drain system.
The motorized louver is contr olled via the remote control.
The louver has indicat or lights that communicate function
and diagnostic information to the user and service technician.
Optional fresh air can be piped into the cassette assembly.
The knock out is located on the side of the cassette assembly.
entering the cassette. A 4” galvanized pipe should be used to
pipe in the fresh air .
Included with the cassette unit is factory provided insulating
tape. This tape should be placed over the refrigerant piping
connections at the indoor unit to prevent sweating.
Built-in Condensate
Pump and Float Switch
Factory Supplied Remote
See Section F for more information
Wired Controller is
Optional
Outside Air
Mounting Hangers
Section C - Indoor Unit Installation - Cassette
Indoor AB09SC2VH* AB12SC2VH* AB18SC2VH*
Rated Cooling Capacit y Btu/hr 9,000 12,000 18,000
Rated Heating Capacit y Btu/hr 10,000 13,000 19,000
Voltage, C ycle, P hase V /Hz/- 208-230/60/1 208-230/60/1 208-230/60/1
Fan S peed S tages 5+Auto 5+Auto 5+Auto
Quiet) CF M
410/365/305/265/205 410/365/305/265/205 470/410/365/295/252
Motor Speed ( Turbo/High/Med/Low/
Quiet) RP M
750/690/620/560/500 750/690/620/560/500 830/750/690/610/550
Indoor S ound Level dB ( Turbo/High/
Med/Low/Quiet)
42/40/36/32/25 42/40/36/32/25 45/42/40/36/32
Grill M odel PB-700IB PB-700IB PB-700IB
Chassis Dimension: Height in (mm) 10 1/4 (260) 10 1/4 (260) 10 1/4 (260)
Chassis Dimension: Width in (mm) 22 7/16(570) 22 7/16(570) 22 7/16(570)
Chassis Dimension: Depth in (mm) 22 7/16(570) 22 7/16(570) 22 7/16(570)
Grill Dimension: Height in (mm) 2 3/8 (60) 2 3/8 (60) 2 3/8 (60)
Grill Dimension: Width in (mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)
Grill Dimension: Depth in (mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)
Weight ( Ship/Net)- lbs (kg) 46.3/37.5 (21/17) 48.5/40.8 (22/18.5) 48.5/40.8 (22/18.5)
Connections Flare Flare Flare
Liquid O.D. in 1/4 1/4 1/4
Suction O.D. in 3/8 3/8 1/2
Drainpipe Size O .D. in 1 1/4 1 1/4 1 1/4
Internal C ondensate P ump Standard Standard Standard
Max. Dr ain-Lift height in(mm) 47 3/16(1,200) 47 3/16(1,200) 47 3/16(1,200)
