INSTALLATION
PAGE 23
ENGLISH
SECTION D

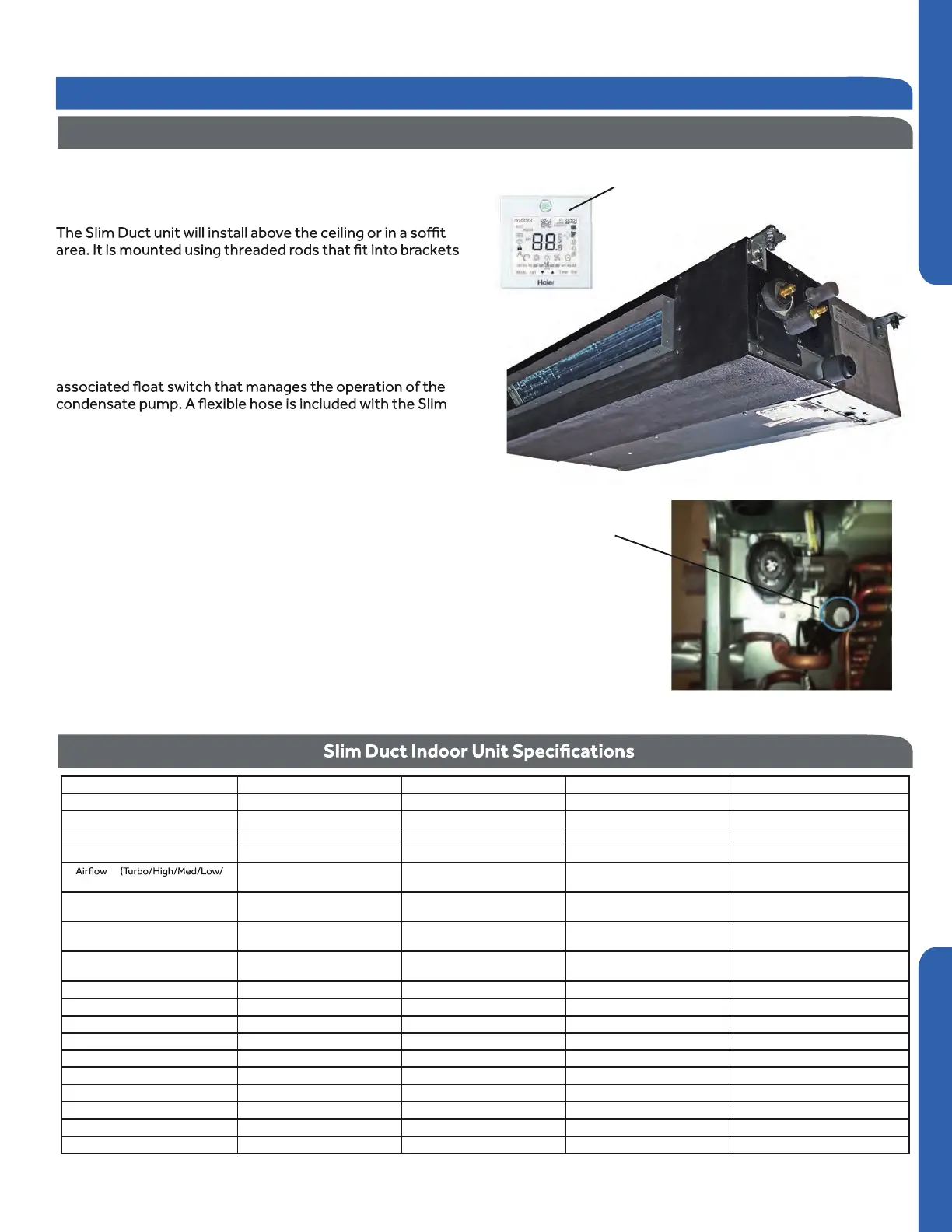

Slim Duct Product Information
The Slim Duct Indoor Air Handler ships consisting of a single
assembly. The Slim Duct indoor unit is operated via a factory
supplied wired remote control.
that are located at all four corners of the Slim Duct assembly..
The Slim Duct unit receives 230 volt line voltage from a
connection at the outdoor condensing unit. There is no
requirement for independent line voltage connections.
The Slim Duct unit has a built-in condensate pump and
Duct unit. This hose connects the Slim Duct condensate
drain outlet to the building’s condensate drain s ystem.
Included with the Slim Duct unit is factory pr ovided insulating
tape. This tape should be placed voer the refrigerant piping
connections at the indoor unit to prevent sweating.
Built-in
Condensate
Pump and
Float Switch
Section D - Indoor Unit Installation - Slim Duct
Indoor AD07SL2VH* AD09SL2VH* AD12SL2VH* AD18SL2VH*
Rated Cooling Capacity Btu/hr 7,000 9,000 12,000 18,000
Rated Heating Capacity Btu/hr 8,000 10,000 13,000 19,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
Fan Speed Stages 5+Auto 5+Auto 5+Auto 5+Auto
Quiet) CFM
353/312/270/230/188 353/312/270/230/188 400/353/282/247/218 540/500/447/365/306
Motor Speed (Turbo/High/Med/Low/
Quiet) RPM
950/850/750/650/550 950/850/750/650/550 1050/950/800/700/600 1050/950/850/750/650
Max. External Static Pressure in.W.G
(Pa)
0.16 (40) 0.16 (40) 0.16 (40) 0.16 (40)
Indoor Sound Le vel dB ( Turbo/High/
Med/Low/Quiet)
35/33/29/26/21 35/33/29/26/22 38/35/29/26/23 31/29/23/29/25
Dimension: Height in (mm) 7 5/16 (185) 7 5/16 (185) 7 5/16 (185) 7 5/16 (185)
Dimension: Width in (mm) 33 7/16 (850) 33 7/16 (850) 33 7/16 (850) 46 1/16 (1170)
Dimension: Depth in (mm) 16 9/16 (420) 16 9/16 (420) 16 9/16 (420) 16 9/16 (420)
Weight (Ship/Net)- lbs (kg) 47.2/36.8 (21.4/16.7) 47.2/36.8 (21.4/16.7) 47.2/36.8 (21.4/16.7) 61.8/48.5(28/22)
Connections Flare Flare Flare Flare
Liquid O.D. in 1/4 1/4 1/4 1/4
Suction O.D. in 3/8 3/8 3/8 1/2
Drainpipe Size O.D. in 1 1/4 1 1/4 1 1/4 1 1/4
Internal Condensate Pump Standard Standard Standard Standard
Max. Drain-Lift height in(mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)
Introduction - Overview
YR-E17 Wired Controller
See Section E for more information
