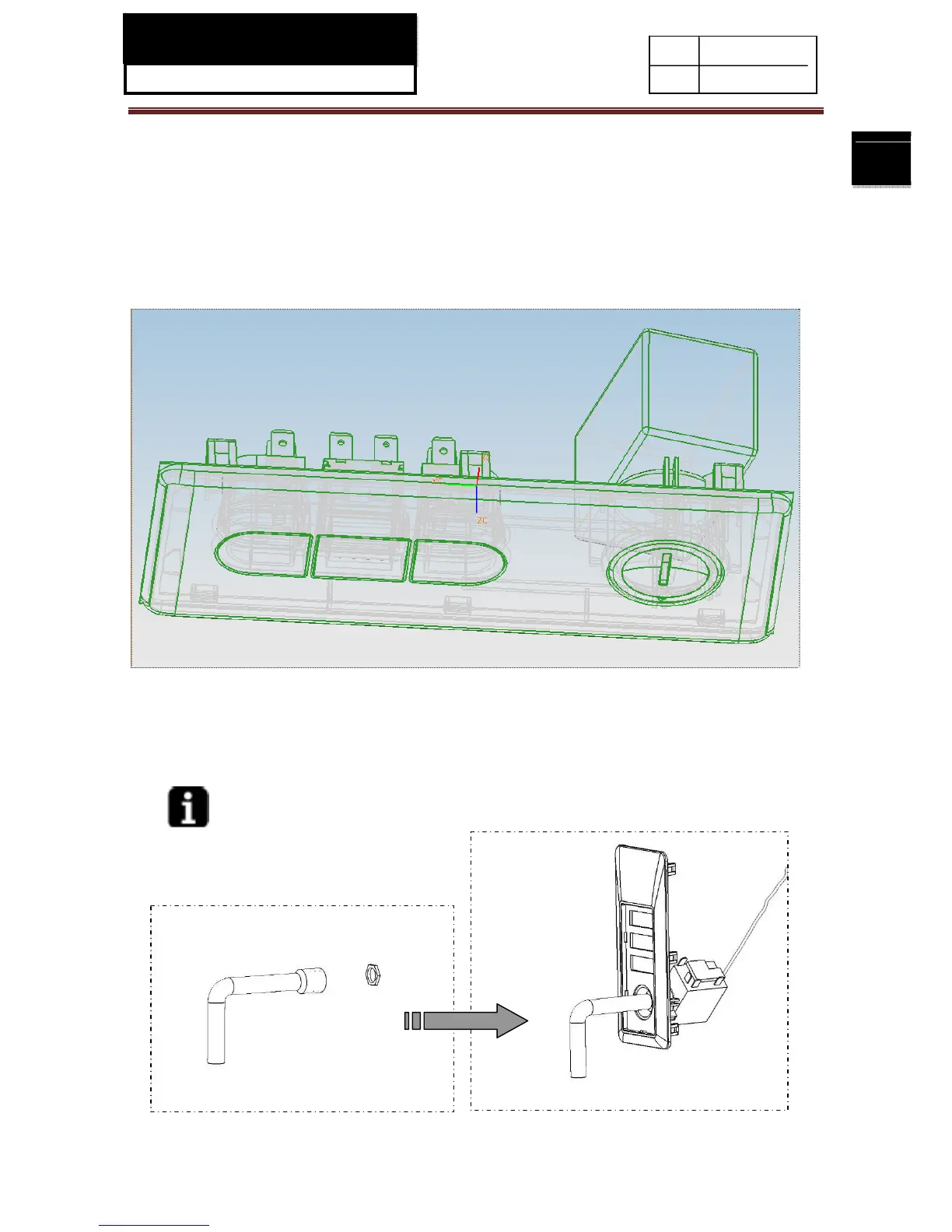

4-3. Control panel assembly (Panel, cover board, knob, indicator light)
Unscrew the compartment grill (refer 4-2), push the panel claw gently with your finger or tools, at
the same time pull panel outside then take it away.
Take away the knob with a sharp-edged tool.
Press the cover board and take it away.
Press two claws on indicator light side and push it from back to front.
4-4. Thermostat assembly
First take off the knob (refer 4-3), Use turnbuckle spanner or acutilingual plier, unscrew the
turnbuckle, then thermostat can be moved from back of panel.
When assembly thermostat you should placed thermostat in originally direction.
