Chapter 4 Disassembly

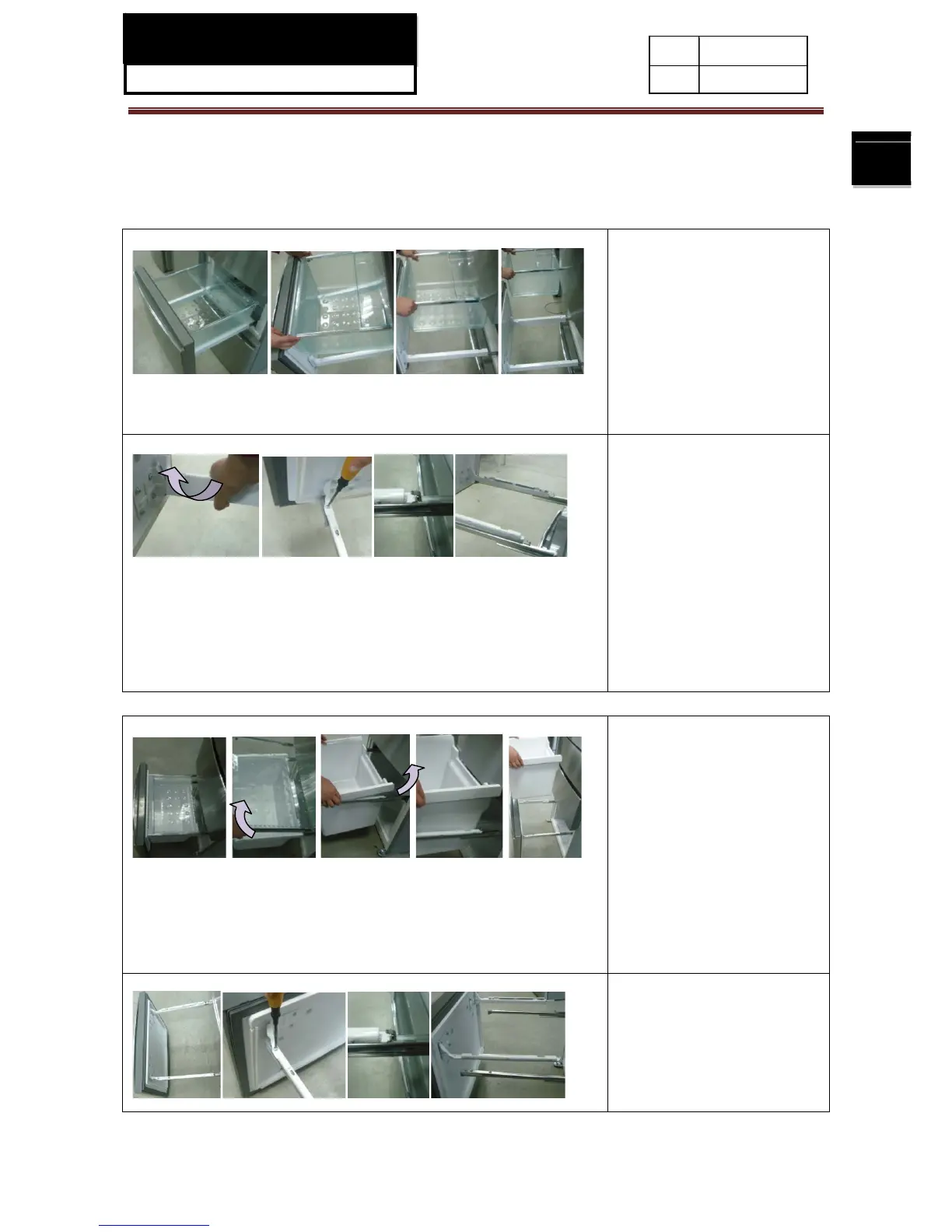

4-1.A2FE635CFJRU/A2FE637CXJRU Freezer doorassembly

4-1-1. Disassembly of the freezer’s upper door body

① ②③

① Open upper drawer of the

freezer;

② Make the front-ends of the

drawer and the tray lean

upward a little according to

illustration ②;

③ Take out the drawer and

the tray from the side;

④⑤⑥⑦

④Turn the decoration caps of

the slide rail outward, and

then take off the 2 decoration

caps;

⑤ Use Phillips screwdriver to

take off the left and right

screws.

⑥ As shown in illustration ⑦,

catch and pluck the bracket

from the slide rail, , then take

off the door body;

4-1-2. Disassembly of the freezer’s bottom door body

①

②③④

①Open the bottom drawer of

freezer;

② As shown in the

illustration, make the front-end

of the tray lean upward a little,

then take off the tray from the

top;

③ As shown in illustration ④,

make the back of the drawer

lean upward, then take off the

drawer from the top;

⑤ Use Phillips screwdriver to

take off the left and right

screws.

⑥ As shown in illustration ⑦,

catch and pluck the bracket

from the slide rail, then take
