55
FlexFit Pro

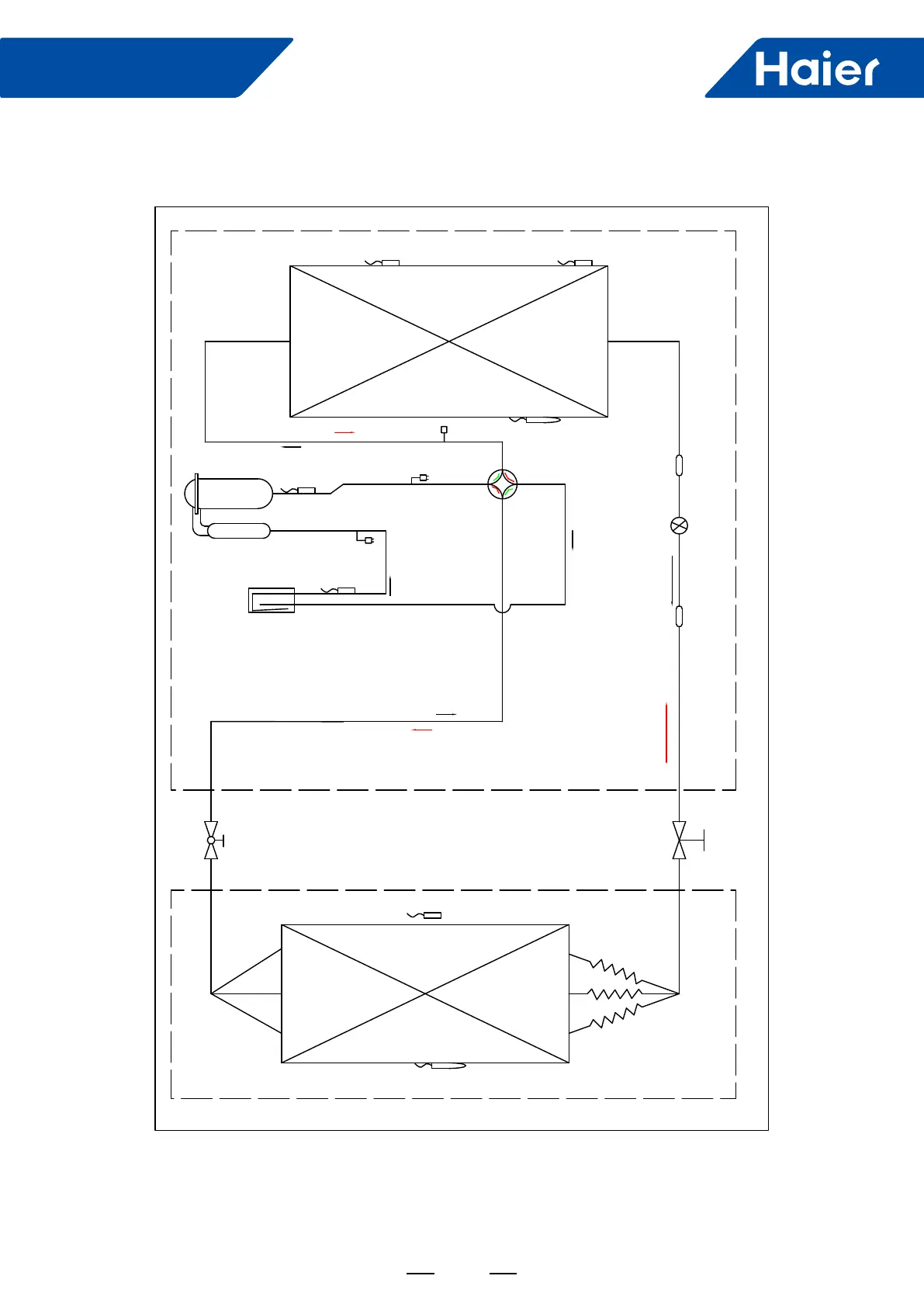

3. Piping
Cooling
Heating
High pressure switch
Low pressure switch
EEV
Filter
Sunction temp.sensor Ts
Discharging temp.sensor Td
Indoor coil temp.sensor Tc
Condensor middle
temp.sensor Tcm
Evaporate
Condensor
Stop valve
( gas side)
3- way stop
valve( liquid side)
4- way stop valve
Liquid -gas segerator
Filter
Defrosting temp.sensor Te
Heater
Indoor ambient temp.sensor Tai
Compressor
Outdoor ambient temp.
sensor Tai
Heating
Cooling
Heating
Cooling
Maintance valve
