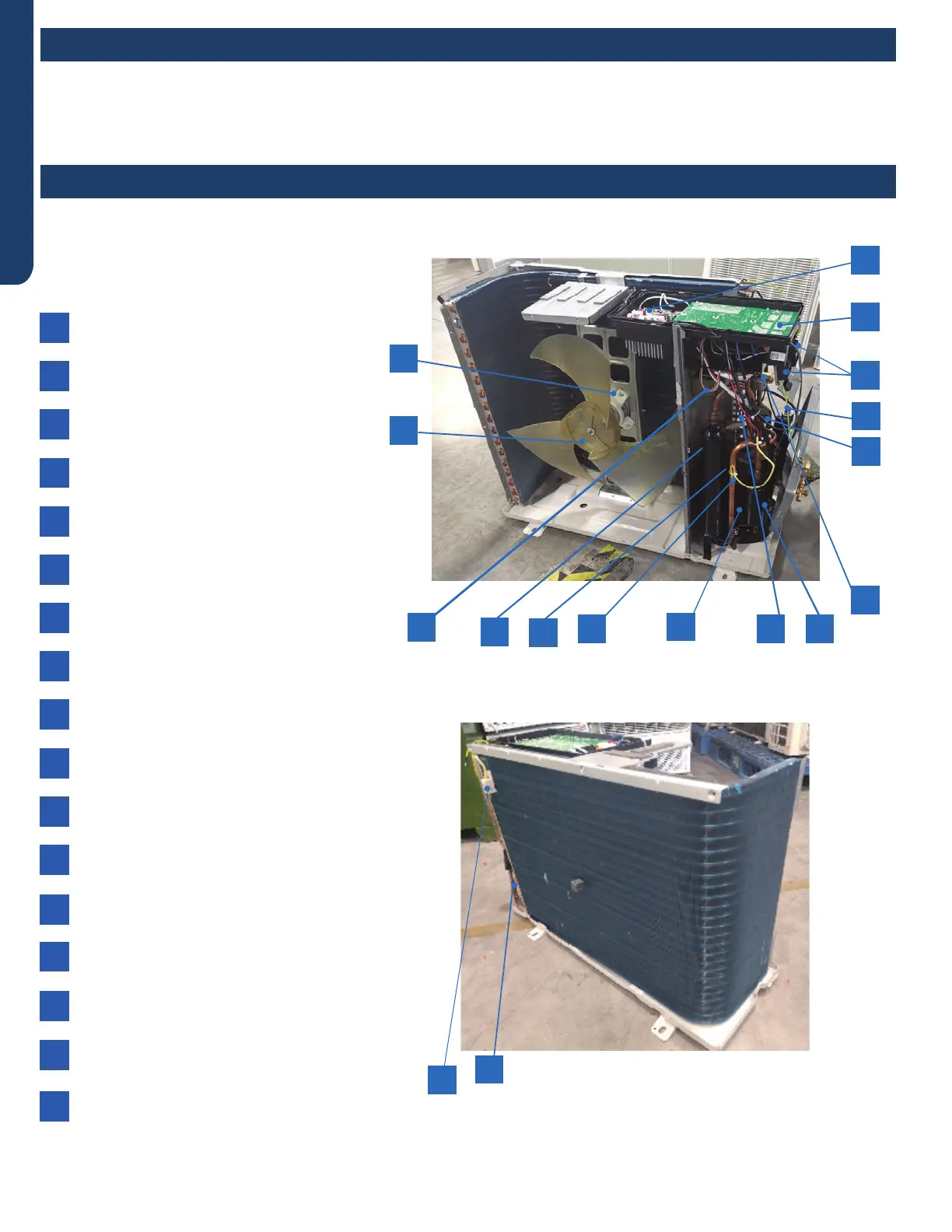

OUTDOOR UNIT CONTROLS AND COMPONENTS
PAGE 8
ENGLISH
4
8
6
11
12
13
14
1
3
9
10
15
25
7
16
17
The outdoor unit has two circuit boards, an Inverter Power Module (IPM) that drives the compressor and main control board
(PCB) that manages system functions and inverter calculations.
Sensors monitor key temperatures throughout the system to manage operational decisions.
4-Way Valve
Accumulator
Compressor
Defrost Temperature Sensor
Discharge Temperature Sensor
Electronic Expansion Valve
Refrigerant Strainers
Ambient Temperature Sensor
Fan Motor
Power Factor Reactor
Suction Line Temperature Sensor
Terminal Block
Main Control Board (PCB)
Module Control Board (IPM)
Fan Blade
GAS Liquid Segregator
Oil Separator
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Outdoor Unit Introduction
Outdoor Component Identication
