External Equipment Connections
10 TFT -LCD television Owner’s Manual
Choose Your Connection
There are several ways to connect your television,
depending on the components you want to connect and
the quality of the signal you want to achieve.
The following are examples of someways to connect
your TV. Choose the connection which is best for you.

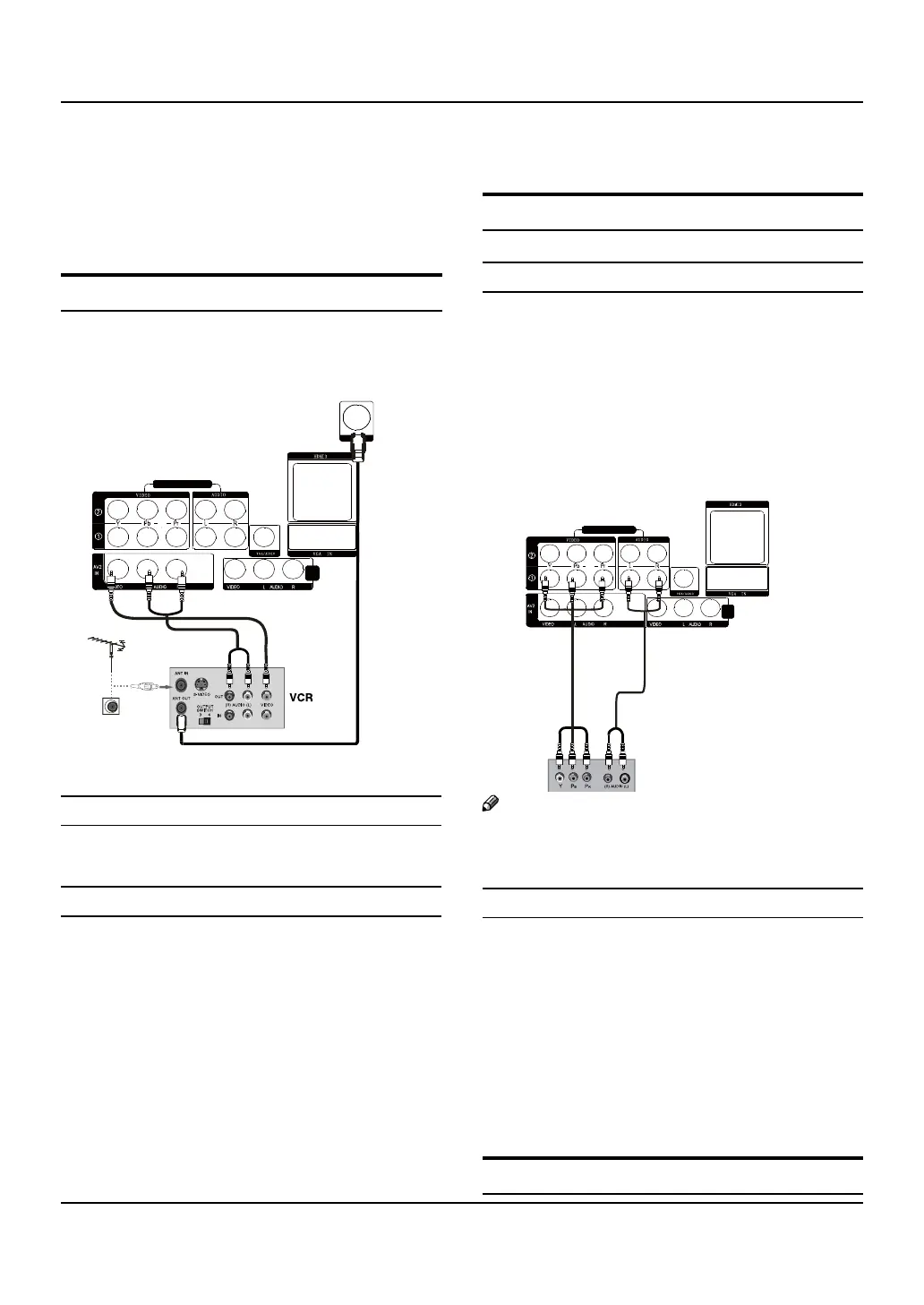

VCR Connection
To avoid picture noise (interference), leave an adequate
distance between the VCR and TV.
on the remote control, and then press
5
/
6
button to
select the source, press the
button to confirm.
DVD Setup
How to connect
Connect the DVD video outputs (Y, Pb/Cb, Pr/Cr) A
to the COMPONENT (Y, Pb/Cb, Pr/Cr) input jacks on
the TV and connect the DVD audio outputs to the
AUDIO jacks on the TV’ as shown in the gure.
If your DVD only has an S-Video output jack,
A
cconnect this to the S-Video input on the TV and
Connect the DVD audio outputs to the AV IN jacks
on the TV, as shown in the gue.
Note
If your DVD player dose not have component
video output,use S-Video.
How to use
Turn on the DVD player, insert a DVD.A
Use the B
SOURCE
button on the remote control,
and
then press
5
/
6
button to
to select COMPONENT
mode
, press the
button to confirm.
PressC Play button on external equipment for
program play.
Refer to the DVD player’s manual for operating
D
instructions.
HDMI or DVI Setup
Connection Option 1
Set VCR output switch to channel 3 or 4 and then tune
the TV to the same channel number.
Connection Option 2
Connect the audio and video cables from the VCR’s A
output jacks to the TV input jacks, as shown in the
figure. When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white, and
Audio Right = red). If you connect a S-VIDEO output
from VCR to the S-VIDEO input, the picture quality is
improved; compared to connecting a regular VCR to
the Video input.
Insert a video tape into the VCR and press
B PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select the input source with using the C SOURCE button
To Next Page
