Haier HSU-09HS03/R2DB User Manual

No.
Installation Manual of Room Air Conditioner
Read this manual before installation.
Explain sufficiently the operating means to the user
according to this manual.
Necessary Tools for Installation
1.Driver
2.Hacksaw
3.Hole core drill
4.Spanner(17,19 and 26mm)
8.Knife
7.Flaring tool
6.Pipe cutter
5.Torque wrench (17mm,22mm,26mm) 12.Reamer9.Nipper
10.Gas leakage detector or
soap-and-water solution
11.Measuring tape

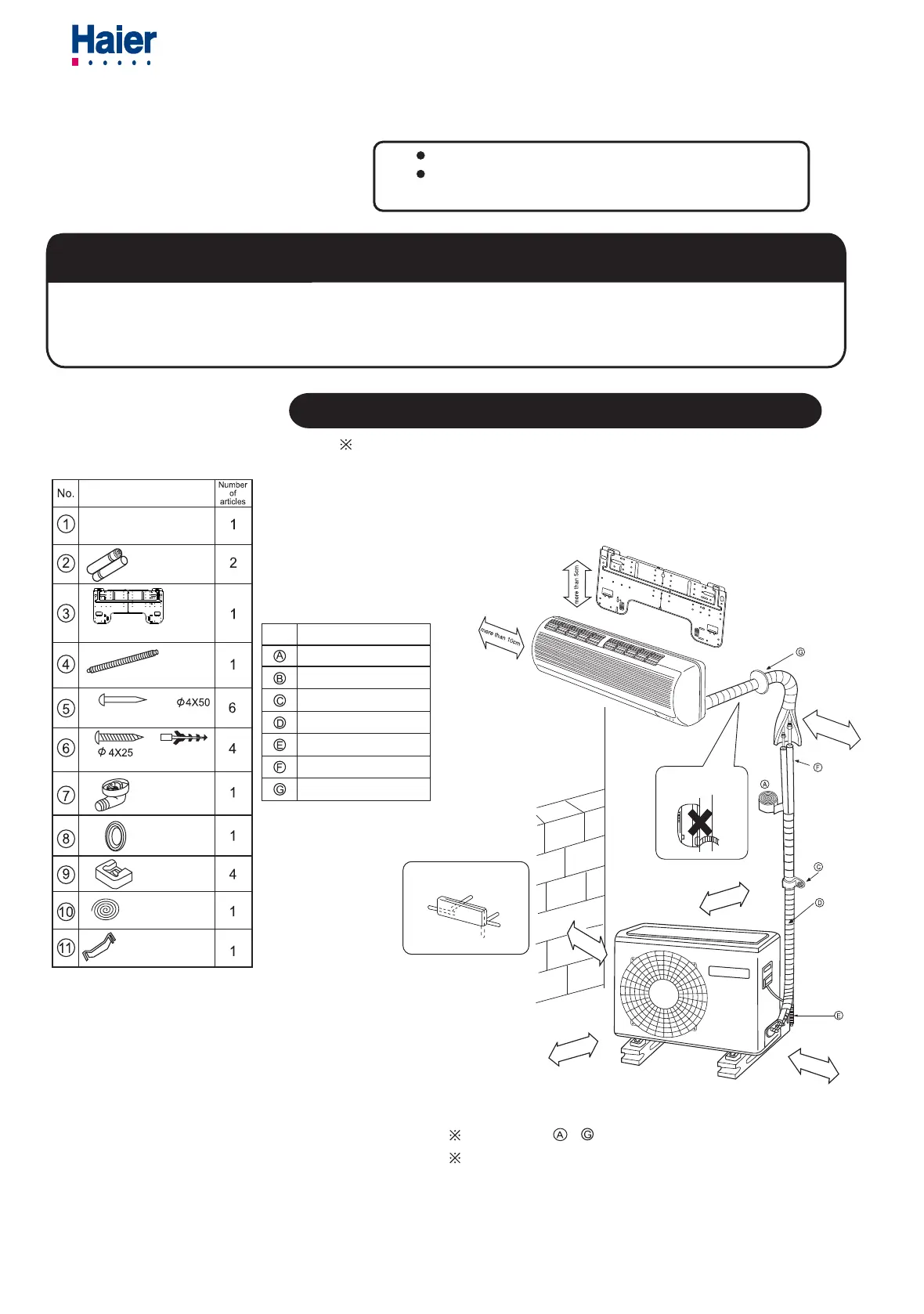

Drawing for the installation of indoor and outdoor units
The modes adopt HFC free refrigerant R410A
Accessory parts
Accessory parts
Remote controller
R-03 dry battery
Mounting plate
Drain hose
Steel nail,cement
Screw
Plastic cap
Drain-elbow
Cover
Cushion
Connecting cable
Pipe supporting plate
Optional parts for piping
Mark Parts name
Non-adhesive tape
Adhesive tape
Saddle(L.S) with screws
Connecting electric cable
for indoor and outdoor
Drain hose
Heat insulating material
Piping hole cover
The marks from to in the figure are the parts' numbers
The distance between the indoor unit and the floor should be
more than 2mm
Arrangement of piping directions
Rear left
Left
Rear
right
Right
Below
Attention must be paid to
the rising up of drain hose
more than 10cm
more than 10cm
more than 60cm
more than 15cm
more than 10cm
57
Model:
HSU-12HS03/R2(DB)
HSU-09HS03/R2(DB)Domestic Air Conditioner
