Adjust the cabinet temperature easily by the micropressor temperature controller in front panel
installed on the refrigerator. Don’t do any adjustment at least 30 mins when you firstly power the
refrigerator.

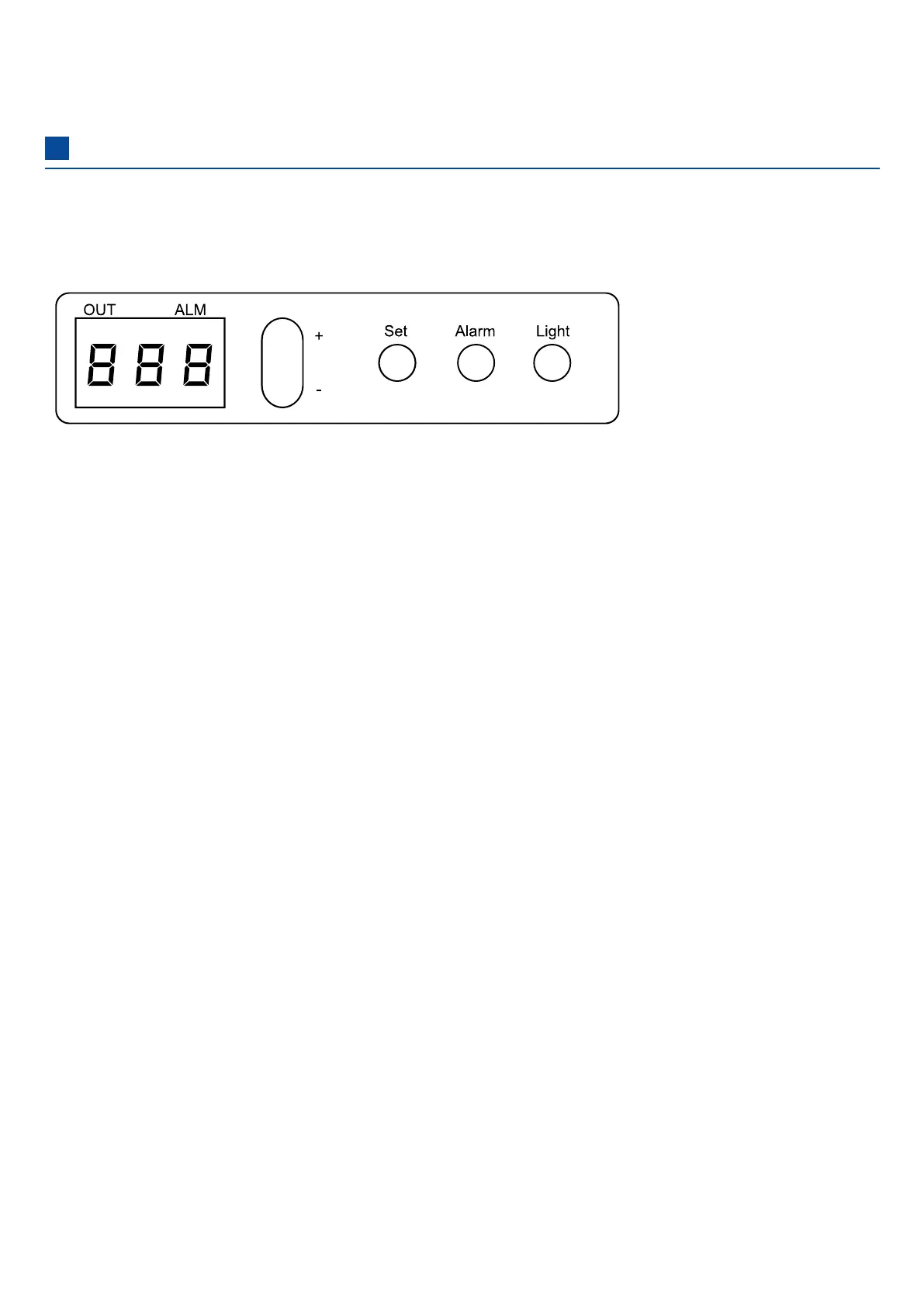

Schematic diagram of controller:
1.Temperature adjustment
Factory pre-set to 5℃ .
Set inner temperature: Press “Set” button for 5 seconds, LED dispalys “TS”. Press “Set” again, the
current set temperature value fl ashes. Make adjustment to specifi ed value through Up Key "+" and
Down Key"-". Press “Set” to save and return.
The set temperature will be reached after running for a period of time.
2. Error display
When there is error of sensor, the LED displays “EE” and alarms. The refrigerator would still
cool in error safety mode in a short period of time. Please move the stored things to other proper
refrigerator ASAP to avoid loss. Then call for service.
3.High/low temperature alarm
When the inner temperature exceeds the range of high and low alarm temperature limits, alarm
light fl ashed and buzzer sounds. Press “Alarm” button to silent the alarm but the alarm light keeps
fl ashing until inner chamber temperature within alarm limits.
4.Check recent highest and lowest inner temperature
Press both “Alarm” and “+” buttons to check the recent highest inner temperature. Release the
buttons to return to the inner cabinet temperature display.
Press both “Set” and “-“ buttons to check the recent lowest inner temperature. Release the buttons
to return to the inner cabinet temperature display.
5.Set values of high temperature alarm “ALH” and low temperature alarm “ALL”
Press “Set” button for 5 seconds. LED dispalys “TS”. Press “+” button to show “ALH”. Press “Set”
again, the current high alarm temperature value flashes. Make adjustment to specified value
through Up Key "+" and Down Key"-". Press “Alarm” to return.
Press “+” button or “-” to show “ALL”. Set low temperature alarm value in the same way.
Application method
Microprocessor temperature controller
