9-3. Pannel failure

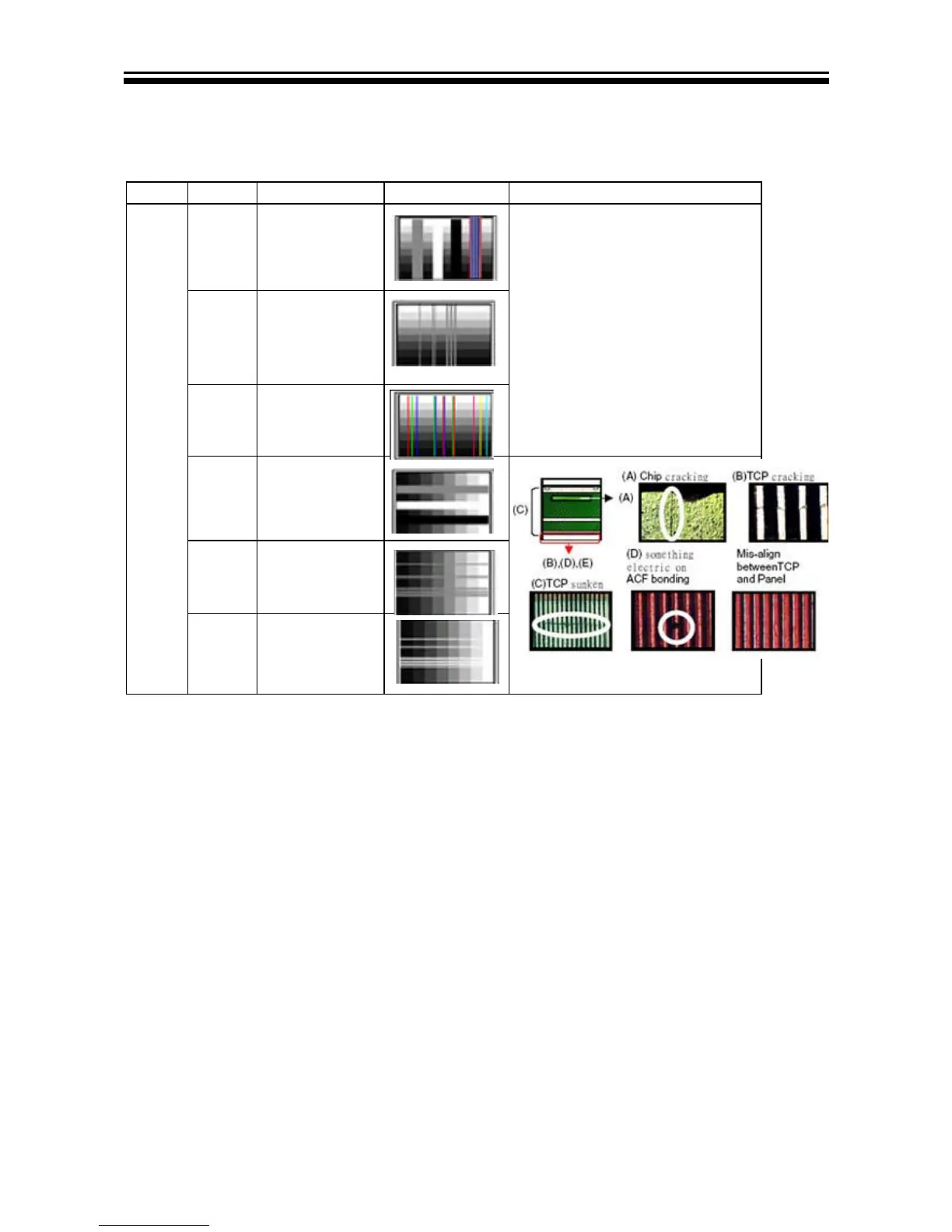

Failure Mode

Part Name Description Phenomena Failure cause

TCP

V B/D Vertical bar

Block Defect :TCP cracking or cracking

Dim or L/D :TCP Sunken

:TCP lead cracking

:ACF bonding short

:Awful environment and

something electric enter

into LCD

:Mis-align between TCP and

Panel

:Panel failure

:TCP failure

V Dim Vertal gray line

V L/D

Vertical color

line(light or dark

forever)

H B/D Horizontal bar

H Dim

Horizontal gary

line

H L/D

Horizontal

line(light or dark

forever)
