Haier LE42F2280 User Manual

INSTALLATION
-9-
AV EQUIPMENT
There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player,
DVD player, or other video equipment through these ports.
There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back
of your TV. You can connect a VCR, cable box, or other video equipment to these jacks.

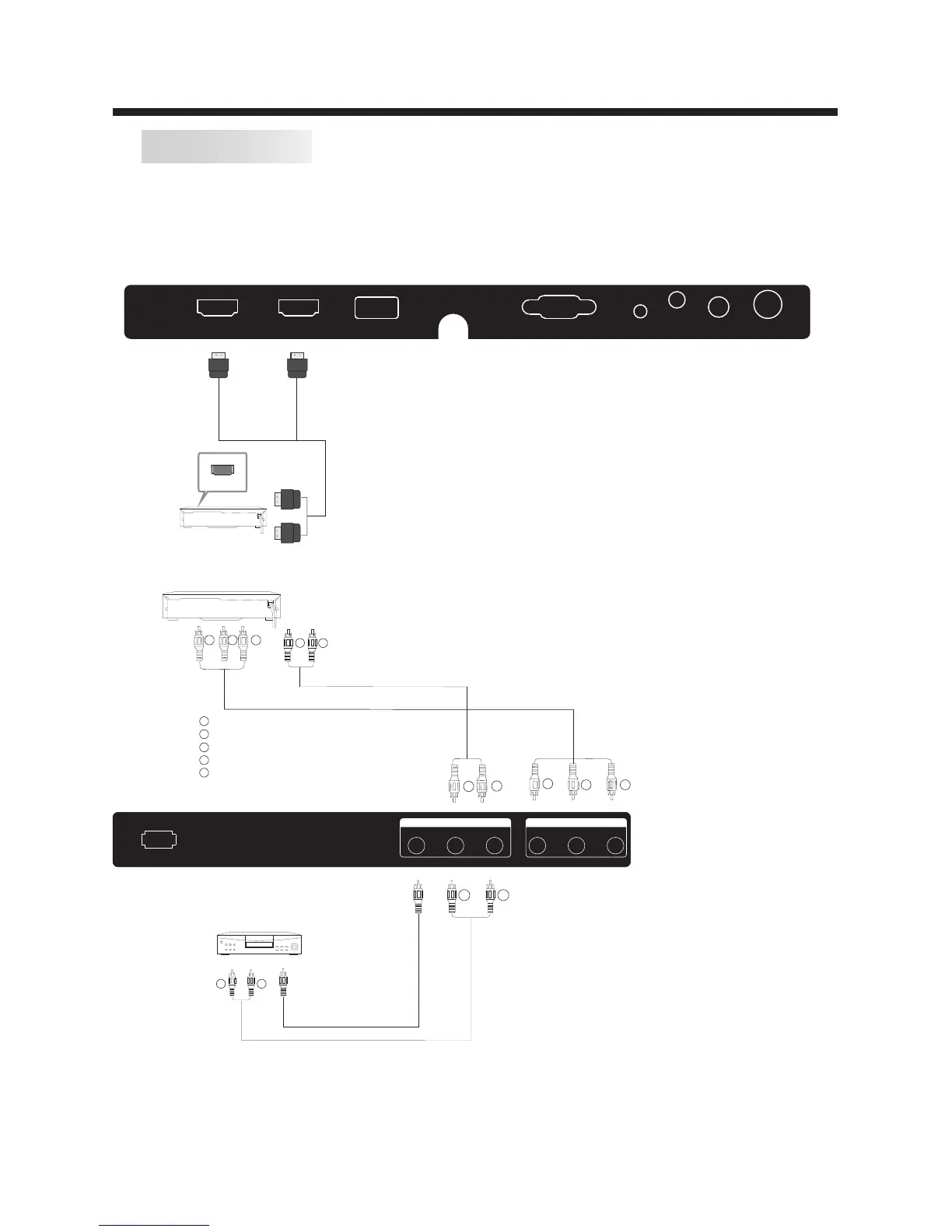

Please see the diagram below. You may also need to refer to the owner's manual of the device
that you are trying to connect.
HDMI
The television's inputs can be connected to the following types of equipment: VCR, multi disc player,
DVD, camcorder, video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
W R
G
B
R
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
W
R
G
B
R
W
R
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
HDMI1 HDMI2 USB VGA PC AUDIO
HEADPHONE
COAXIAL
R F
AC-INPUT
100-240V~50/60Hz
VIDEO L R Y
Pb
Pr
COMPOSITE COMPONENT

Haier LE42F2280 Specifications

General

Comb filter	3D
Display diagonal	42 \
Display brightness	400 cd/m²
Native aspect ratio	16:9
Native refresh rate	60 Hz
Supported video modes	1080p
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	-
Viewing angle, horizontal	160 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
RMS rated power	16 W
Number of speakers	2
Card reader integrated	No
USB 2.0 ports quantity	1
S-Video inputs quantity	0
On Screen Display (OSD) languages	ENG, ESP, FRE
Cables included	AC
Product color	Black
Panel mounting interface	200 x 200 mm
Power consumption (standby)	- W
Power consumption (typical)	80 W
Sustainability certificates	ENERGY STAR
Certification	RoHS

Weight and Dimensions

Depth (without stand)	82.55 mm
Width (without stand)	1016 mm
Height (without stand)	654.05 mm
Weight (without stand)	25400 g
