Haier LE42F2280 User Manual

-6-

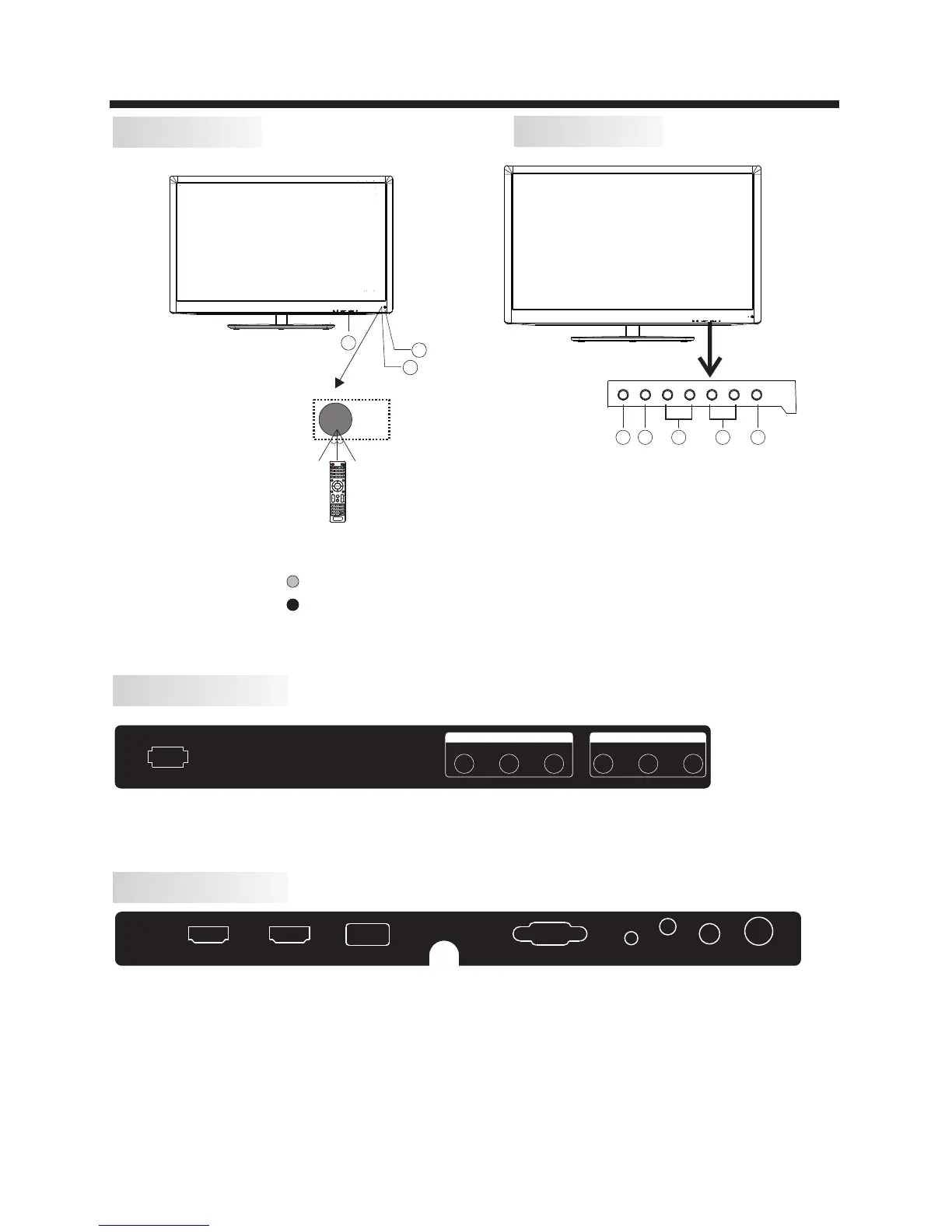

INSTALLATION
Front panel
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3: Panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
Side panel
REAR Connections
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: 1. When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
1
2
3
4
5
HDMI1 HDMI2 USB VGA PC AUDIO
HEADPHONE
COAXIAL
R F
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT
Note: AV and component (YPbPr) share the R and L audio inputs.
AC-INPUT
100-240V~50/60Hz
VIDEO L R Y
Pb
Pr
COMPOSITE COMPONENT
30 30
1
3
2

Haier LE42F2280 Specifications

General

Comb filter	3D
Display diagonal	42 \
Display brightness	400 cd/m²
Native aspect ratio	16:9
Native refresh rate	60 Hz
Supported video modes	1080p
Viewing angle, vertical	170 °
Contrast ratio (dynamic)	-
Viewing angle, horizontal	160 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
RMS rated power	16 W
Number of speakers	2
Card reader integrated	No
USB 2.0 ports quantity	1
S-Video inputs quantity	0
On Screen Display (OSD) languages	ENG, ESP, FRE
Cables included	AC
Product color	Black
Panel mounting interface	200 x 200 mm
Power consumption (standby)	- W
Power consumption (typical)	80 W
Sustainability certificates	ENERGY STAR
Certification	RoHS

Weight and Dimensions

Depth (without stand)	82.55 mm
Width (without stand)	1016 mm
Height (without stand)	654.05 mm
Weight (without stand)	25400 g
