Valve Pipe Box

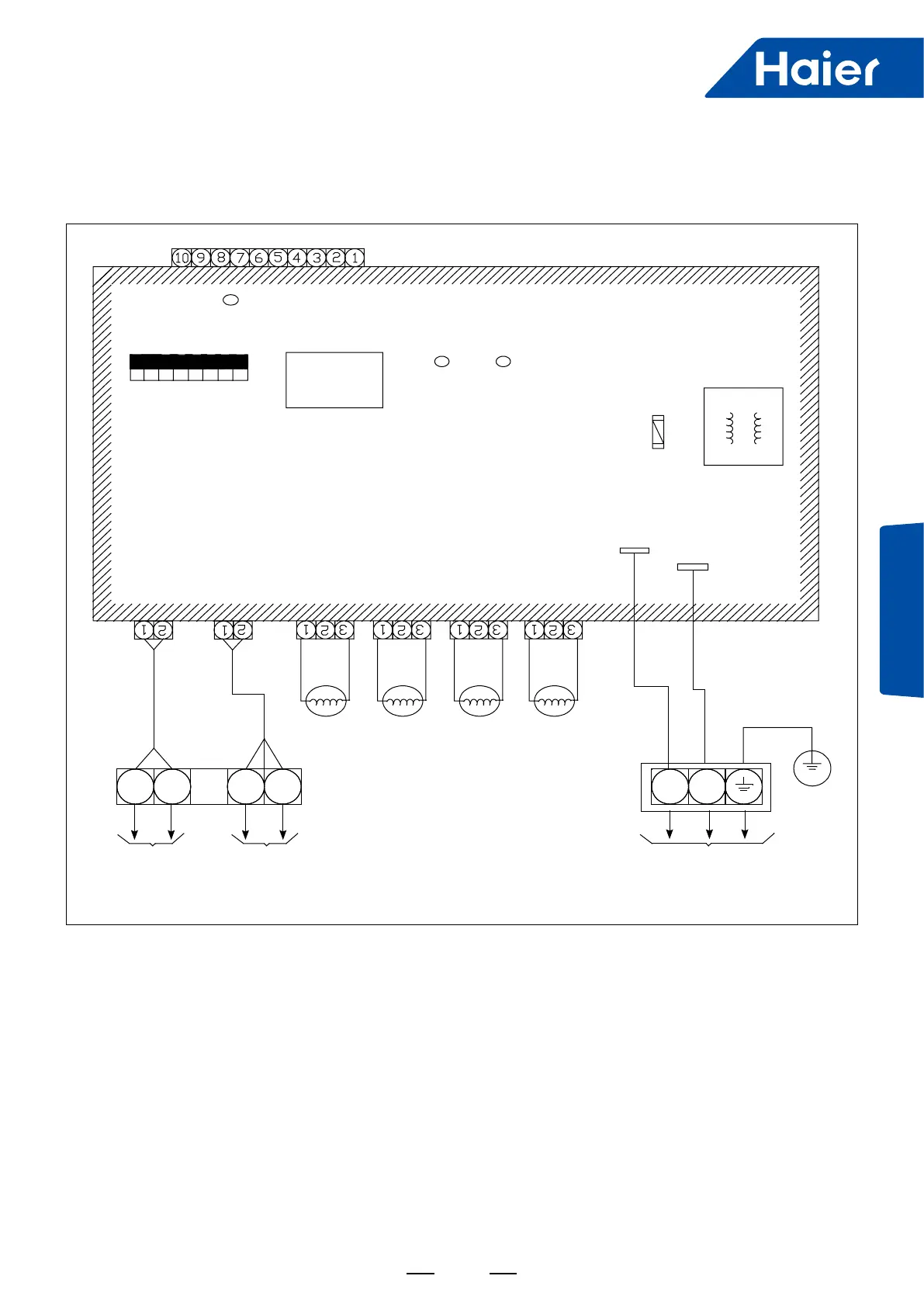

3.3 Wiring diagram
CN8
LED3
LED2
CN6
Qo Po
Connect
outdoor
P&Q
Connect
indoor
P&Q
To power supply
1PH,220-230V~,50/60Hz
Terminal Block for
Communication
Terminal Block
for Power
R
P Q B L NC
R WB BY
CN7
Qi Pi
CN3
SVB3
CN5
SVB2
CN2
SVB1
CN4
4WVBS
CN1
220V_L
CN2
220V_N
SW03
DIP ON
1 2 3 4 5 6 7 8
IC5
LED1
LX1
FUSE
T3.15A-250VAC
Notice:
The colours use these letters for short
W:White B:Black R:Red Y:Yellow
