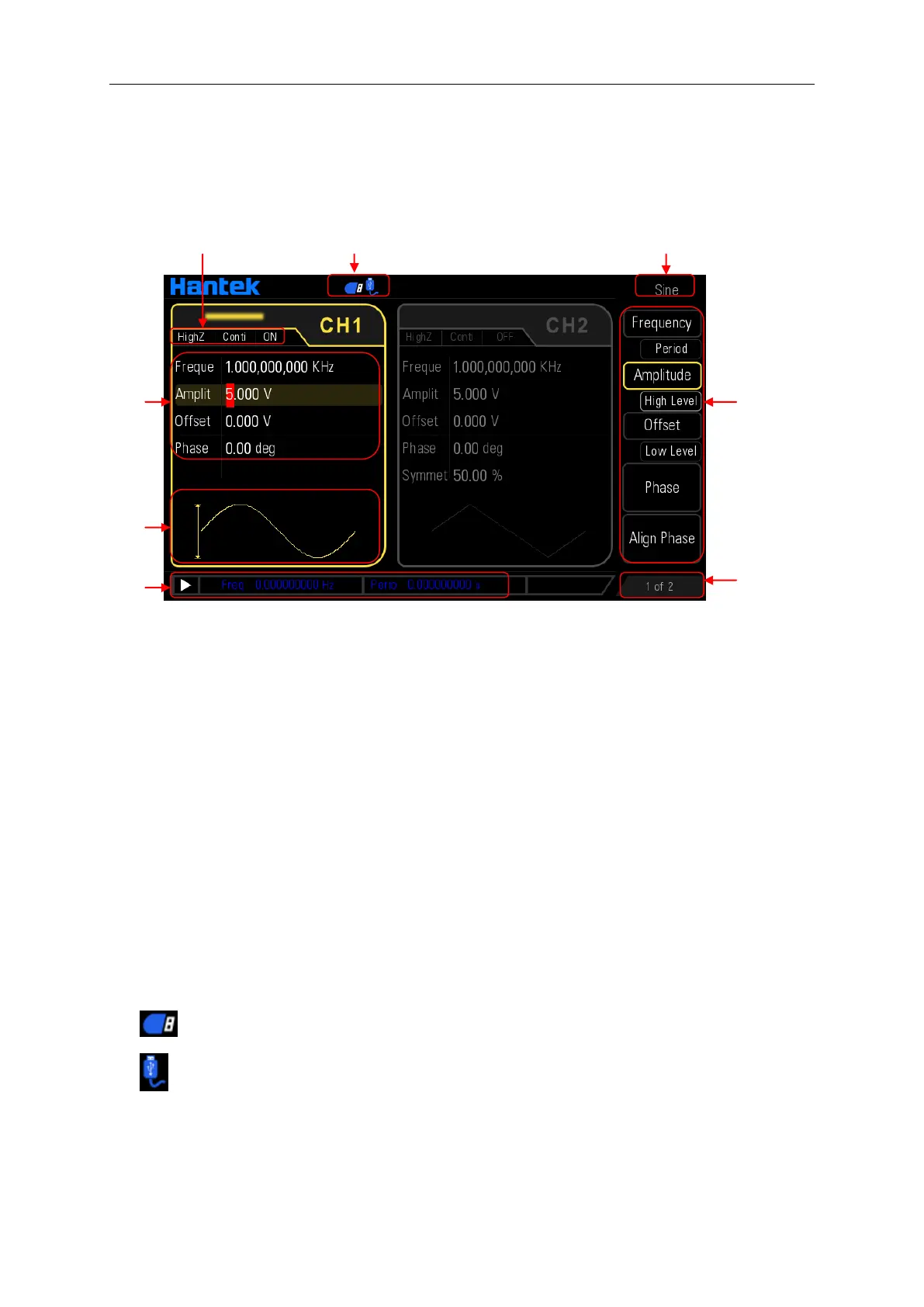

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 16
6. Self Test
 Perform self test
7. Calibration
 Perform calibration
8. Digital Generator
 Digital Generator
Trigger：
Configures trigger settings
 Perform a manual trigger, when illuminated.
 Specify the trigger source for sweep, burst or arbitrary waveform advance.
 Specify the trigger count and delay.
 Specify the slope (rising or falling edge) for an external trigger source.
 Specify the slope (rising or falling edge) of the trigger output signal.
 Enable / disable the signal output from the "Sync" connector.
Default setting：
Default Settings
Press the Default button in the front panel, and the factory status will be recalled.
2.2 Utility
There are some features to be selected in Utility menu, such as: <System Settings>, <System
Information>, <System State >, <Counter>, <Self Test>, <Calibration>.
To choose these features, use the knob and left/right direct button, then push ENT button to
confirm.Also you can push F1 and F2 button to choose function, then press ENT button or F4
button to confirm. Press F5 button to exit.
2.2.1 System Settings
The followings are settings:
Language Settings
Display Settings
