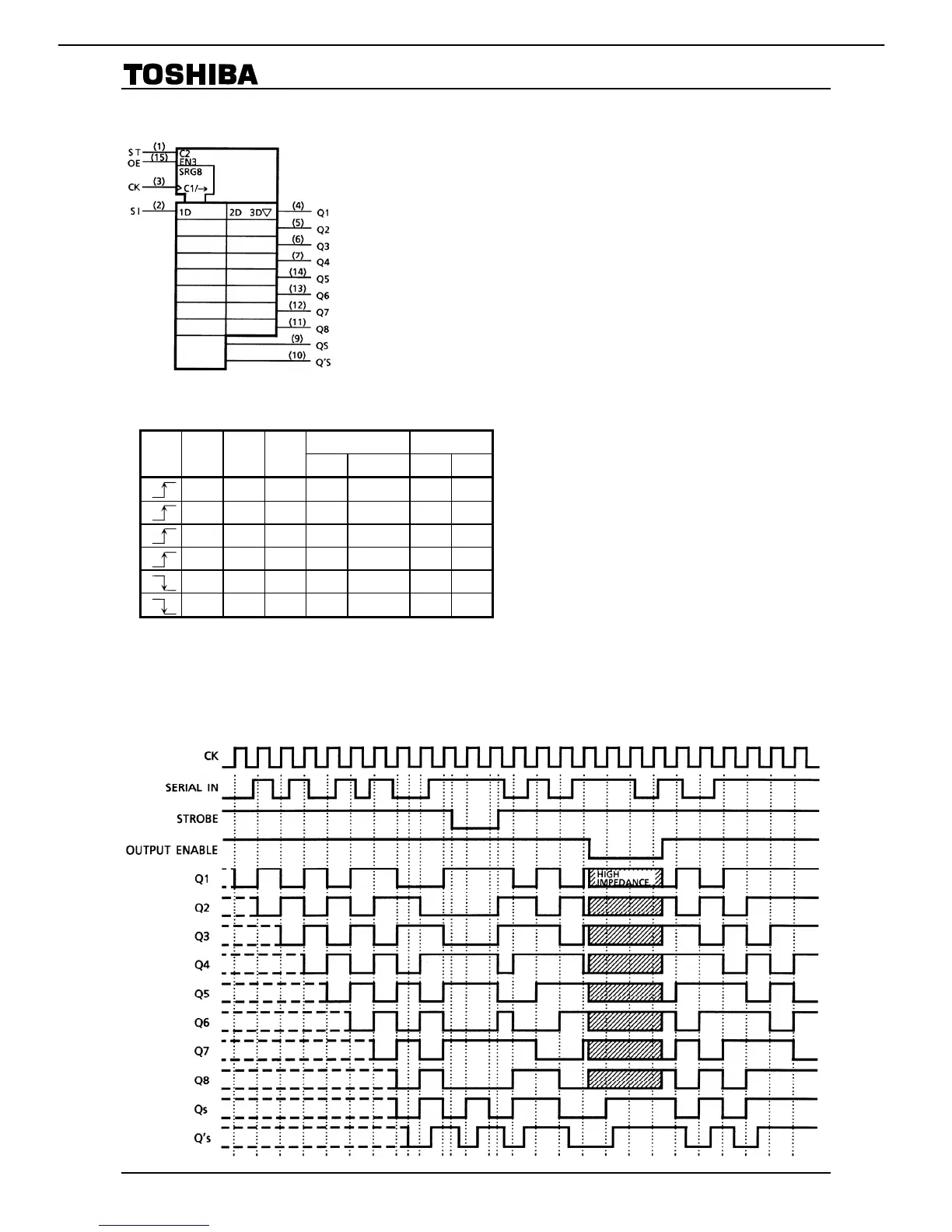

TC74HC4094AP/AF/AFN
2007-10-01
IEC Logic Symbol
Truth Table
Para. Out Seri. Out
CK OE ST SI
Q1 Qn Qs Q’s
H H L L Qn − 1 Q7 NC
H H H H Qn − 1 Q7 NC
H L * NC NC Q7 NC
L * * Z Z Q7 NC
H * * NC NC NC Qs
L * * Z Z NC Qs
X: Don’t care
NC: No change
Z : High impedance
Timing Chart
AVR3600 harman/kardon
196
