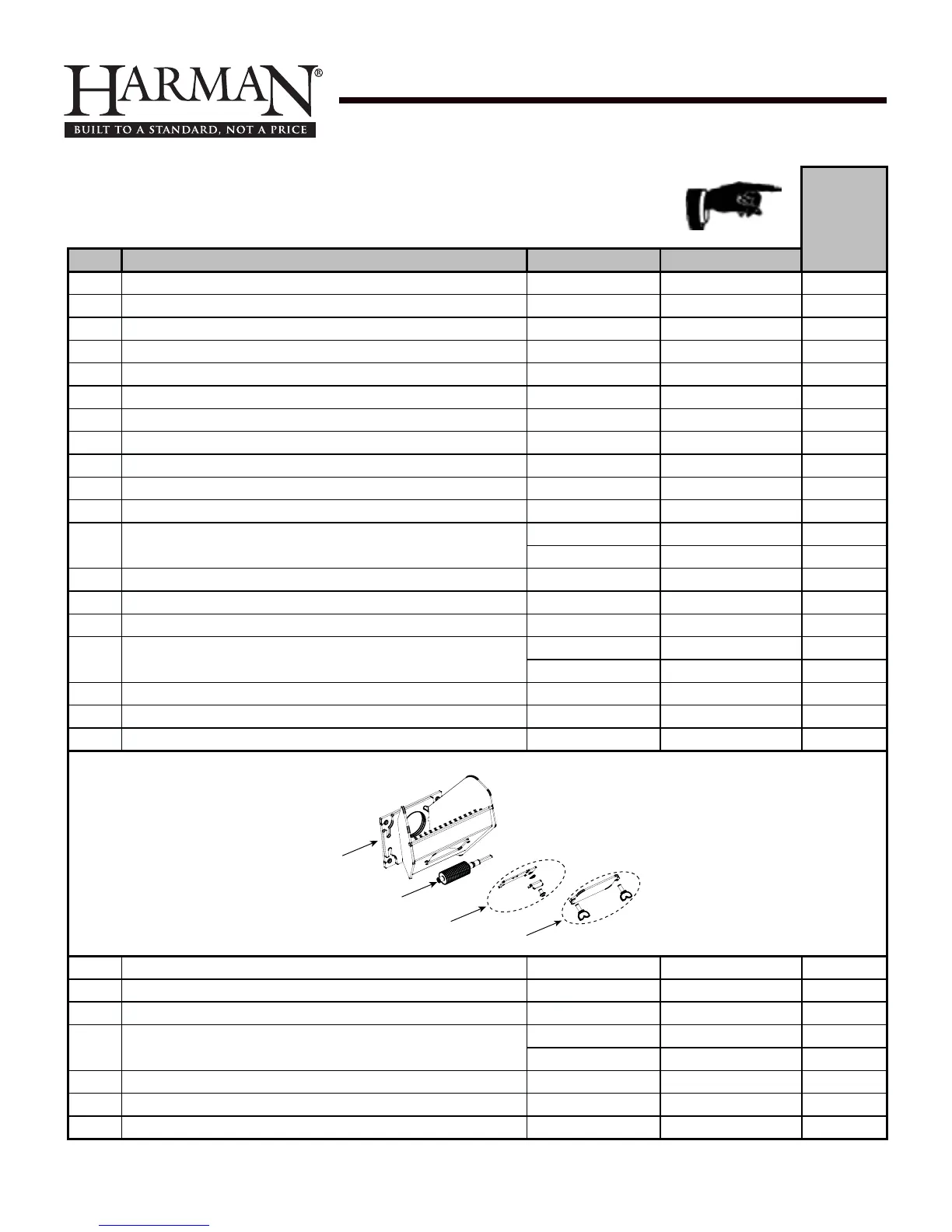

Service Parts
Absolute63
Beginning Manufacturing Date: Dec 2016
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer
or distributor. Hearth and Home Technologies does not sell directly to consum-
ers. Provide model number and serial number when requesting service parts from your
dealer or distributor.
Stocked at
Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Touch Control 1-00-777552 Y
Cable Cover Gasket Post 0081530362 3-44-777549
2 16 X 8 Hopper Lid Glass 3-40-777770 Y
Screwposts/Washers Pkg of 20 Sets 1-00-129004 Y
Gasket 3/8 X 1/2 20 Feet 1-00-375501 Y
3 Black Plated Knob w/Screw 1-00-02000-1
Complete Latch 1-00-0669697
5/16 X 1/2 Ball Plunger Pkg of 3 3-31-5500-3
Bulk 5/16 Push Retainer Pkg of 100 3-31-94807-100
Hopper Lid Hinge w/Hardware 1-00-777771 Y
Hopper Lid Hinge Pin Plates w/Hardware 1 Set 1-00-777560
4 Cast Top
Black 4-00-999132S
Majolica Brown 1-00-999132-14
5 Hopper Assembly 1-10-999157A Y
Gasket Hopper Throat 3-44-677185 Y
Gasket 3/8 X 1/2 20 Feet 1-00-375501 Y
6 Left Side Cast
Black 4-00-999130P
Majolica Brown 1-00-999130-14
7 Brick Support
1-10-999779W Y
8 Brick 9 X 4.5 X 1.25
Pkg of 7 1-00-900450125 Y
9 Flame Guide
3-00-06644 Y
10 Burn Pot Assembly
10.1 Burn Pot Weldment 1-10-999674W Y
Gasket, Burn Pot/Tailpipe Pkg of 5 1-00-07381 Y
10.2 Igniter
3-20-677200 Y
Pkg of 10 1-00-677200
Y
10.3 Igniter Cover w/Hardware 1-00-574402 Y
10.4 Cleanout Cover w/Hardware 1-00-06623 Y
1/4/-20x5/8 Pkg of 10 3-31-782108-10 Y
Additional service parts on following page.
#10 Burn Pot Assembly
10.1
10.2
10.3
10.4
To Next Page
