The room sensor is a small temperature sensor
on the end of a 60" gray or black wire. This sensor is
installed much like a standard wall thermostat. Be-
cause it is so small, it can be hidden along the trim
of a doorway or even up the leg of a coffee table.
There is a remote room sensor port on the rear of the
unit for easy external connection. Use standard 18-2
thermostat wire to extend the distance to the desired
location (50' maximum). The room sensor should be
installed in the location where you want to control the
temperature.
NOTE: Distances of more than 25 feet from the
unit or in another room are not recommended. It is
recommended that the room sensor be installed, even
if only installed on the rear of the unit as a return air
sensor. The room sensor is essential for the Advance's
excellent efciency.
Do not allow pellets or sawdust to build up on the
hopper lid gasket.
Inspect the hopper lid gasket for damage. A good hopper
lid seal is very important for proper operation.

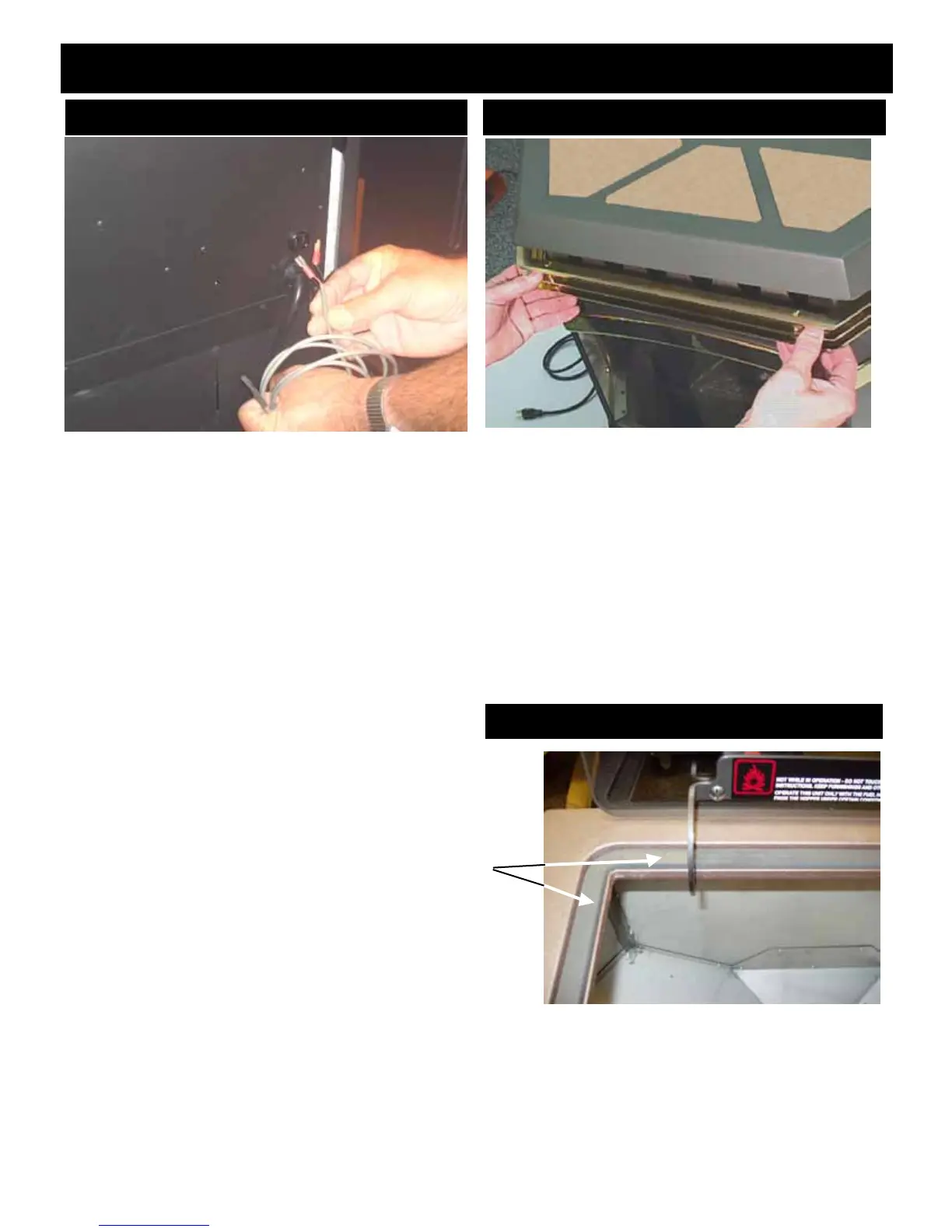

Fig. 18
Insert the two tail end hooks of the Air Grill Assembly
up under the stove top edge. Insert inward until the
two center hooks drop into the stove body slots in
the front of the unit.
Fig. 16
Fig. 17
Hopper Lid
Foam Gaskets
To Next Page
