Harman dbx ZonePRO 640 - Front Panel - 641;641 M, 1261;1261 M

9
ZonePRO
TM

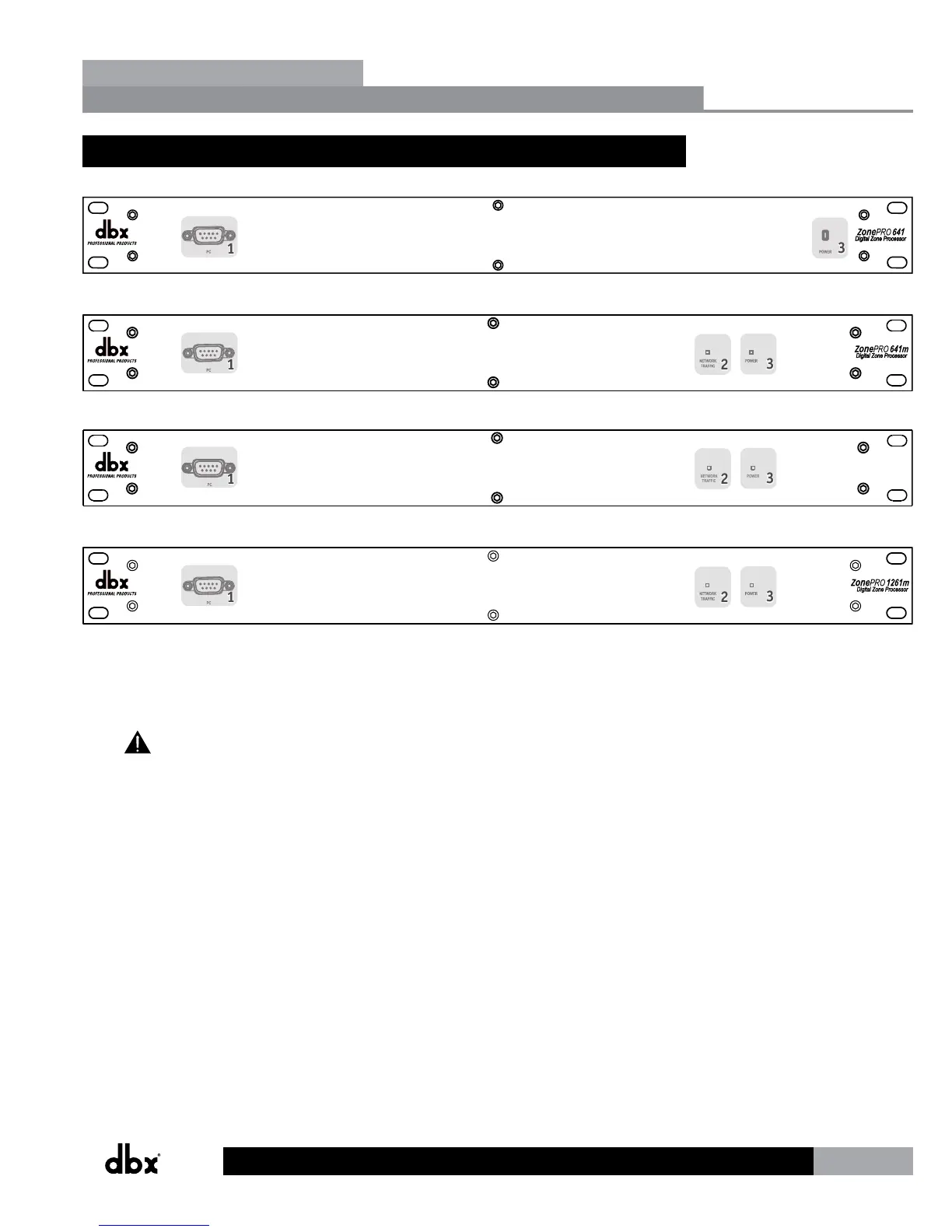

3.2 Front Panel – 641/641m, 1261/1261m
641 Front Panel
1
3
641m Front Panel
1
2
3
1261 Front Panel
NETWORK
TRAFFIC
POWER
ZonePRO1261
Digital Zone Processor
1
2
3
1261m Front Panel
1
2
3
1. Front PC Port (RS-232)
Connect this serial port to the PC for configuration, control, and monitoring. It can
also be used for communication with a third party control system. The baud rate of this
port is 57600.
Front and rear PC ports should not be used at the same time!
2. Network Traffic LED (641m, 1261, and 1261m only)
This LED (when lit), indicates that network traffic is present.
3. Power LED
This LED (when lit) indicates that the ZonePRO device is currently powered on.
Getting Started
Section 3
