Maximum Cable Lengths
Depending upon how many controllers you are connecting to the ZonePRO and whether you
are wiring the ZCs in parallel or serially, there are certain cable length restrictions.

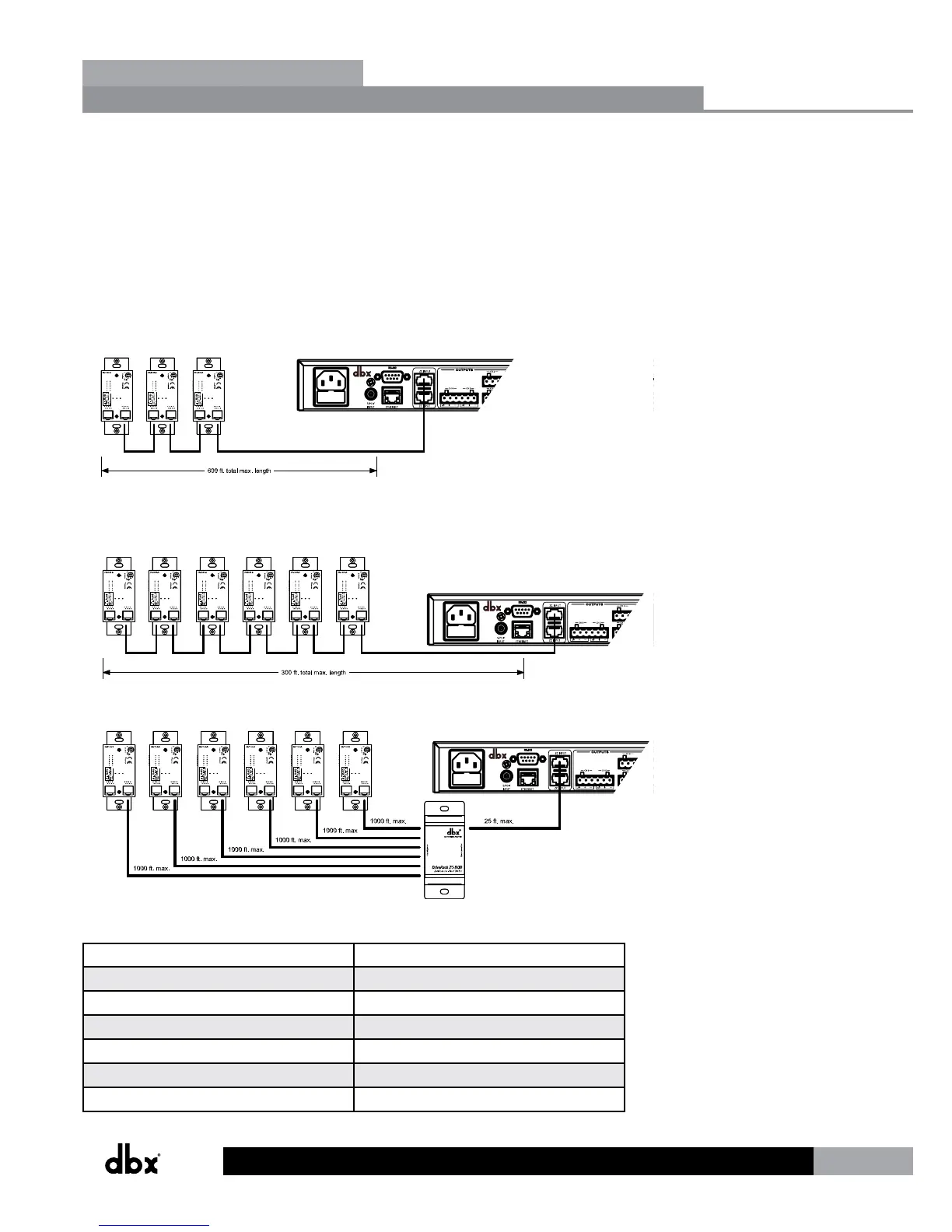

Diagram A shows the maximum cable length for 3 ZCs wired in serial. Diagram B shows the
maximum cable length for 6 ZCs wired in serial. Diagram C shows the maximum length for
each cable run when connecting the ZCs in parallel using a ZC-BOB and the maximum cable
length of the cable between the ZC-BOB and ZonePRO device.
Diagram A
Diagram B
Diagram C
RJ-45
(8-Position)
RJ-45
(8-Position)
Orange
White/Blue
Green
Blue
White/Brown
Brown
-VREF
-Dip 1
-GND
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
White/Green
White/Orange
Cable Specification: EIA/TIA 568A Standard (pin to pin) 24 AWG wire
-Dip 2
-Dip 3
-Dip 4
-Dip 5
-Dip 6
RS-232
RS-232
RS-232
Number of ZCs Daisy Chained in Series Maximum Total Cable Length
1 ZC 1000 ft.
2 ZCs 800 ft.
3 ZCs 600 ft.
4 ZCs 500 ft.
5 ZCs 400 ft.
6 ZCs 300 ft.
