Harman Harman/kardon CITATION BAR User Manual

18
/ POWER ON
NOTES:
• Use the provided power cord only.
• Before connecting the power cord, make sure all other
connections have been completed.
• When you disconnect the power cord, always pull the plug, never
the cable.
• Do not connect this product or other components to an AC outlet
until all connections between components are complete.

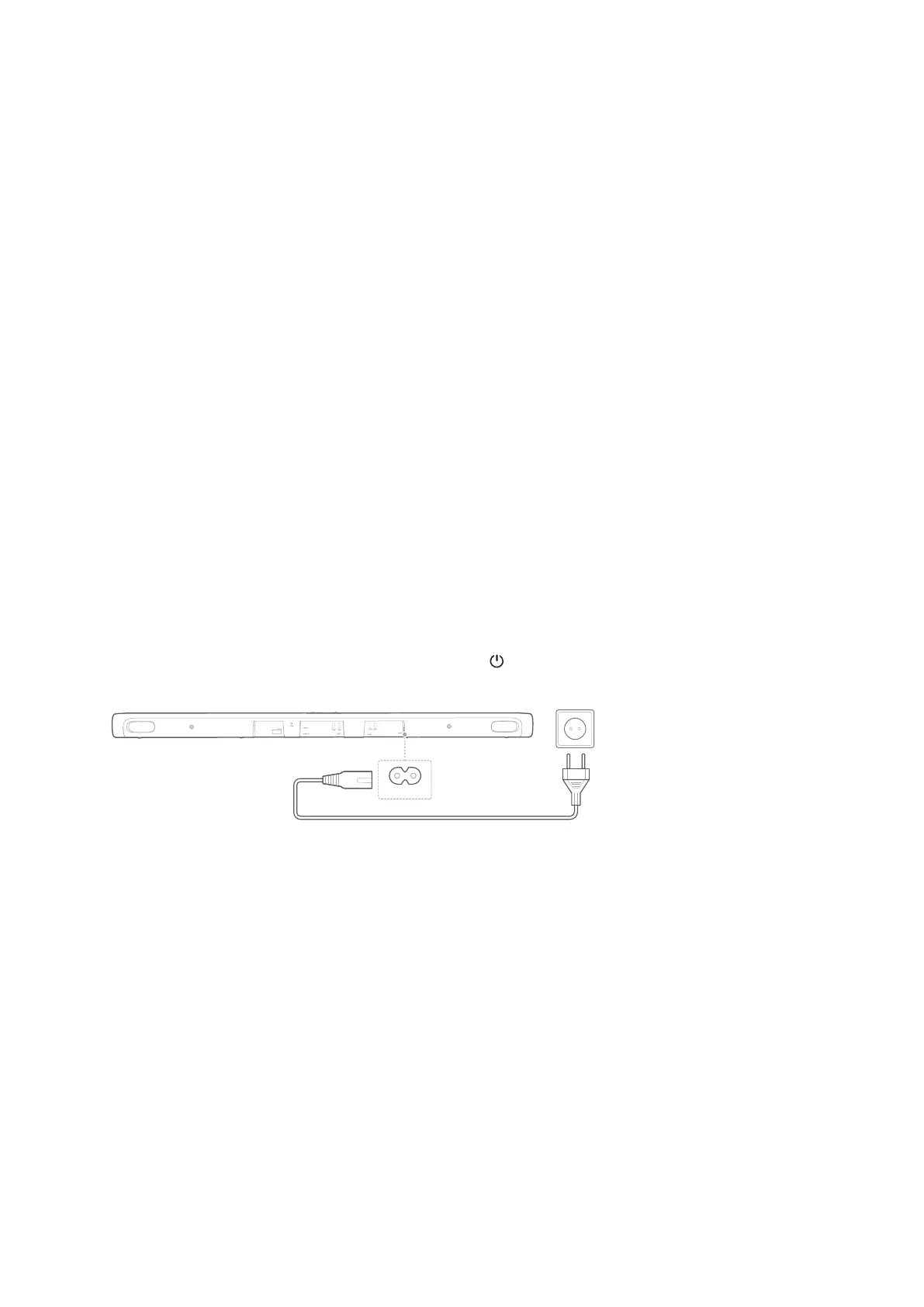

1) Plug one end of the AC power cord into the POWER
connector on the back of the soundbar.
2) Plug the other end of the power cord into a live AC (mains)
outlet. The soundbar will automatically power on and the
touch screen will turn on. Alternatively, press on the
remote control to power on or switch to standby.
POWER
3) Select your language as instructed on the touch screen for


Harman Harman/kardon CITATION BAR Specifications

General

Type	Soundbar
Channels	3.0
Power Output	150W
Frequency Response	50 Hz - 20 kHz
Voice Assistant	Google Assistant
Weight	4.1 kg
Power Supply	100-240V~50/60Hz
Bluetooth Version	4.2
Bluetooth Transmitter Power	<10 dBm
Bluetooth Transmitter Modulation	GFSK, π/4 DQPSK, 8DPSK
Wi-Fi Network	802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Power	<20 dBm
5G Wi-Fi Transmitter Power	<23 dBm
5G Wi-Fi Modulation	QPSK, BPSK, 16QAM, 64QAM, 256QAM
HDMI Video Inputs	3
HDCP Version	2.2
Wall Mountable	Yes
Remote Control	Yes
Connectivity	Bluetooth, Wi-Fi, HDMI, Optical
Signal-to-noise ratio	80dB
Bluetooth Transmitter Frequency Range	2402MHz – 2480MHz
2.4G Wi-Fi Transmitter Frequency Range	2412MHz – 2472MHz
2.4G Wi-Fi Modulation	QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi Transmitter Frequency Range	5.15GHz – 5.35GHz, 5.470GHz – 5.725GHz, 5.725GHz – 5.825GHz
HDMI Video Output	1 (with Audio Return Channel, ARC)
Audio Inputs	Optical, HDMI ARC
