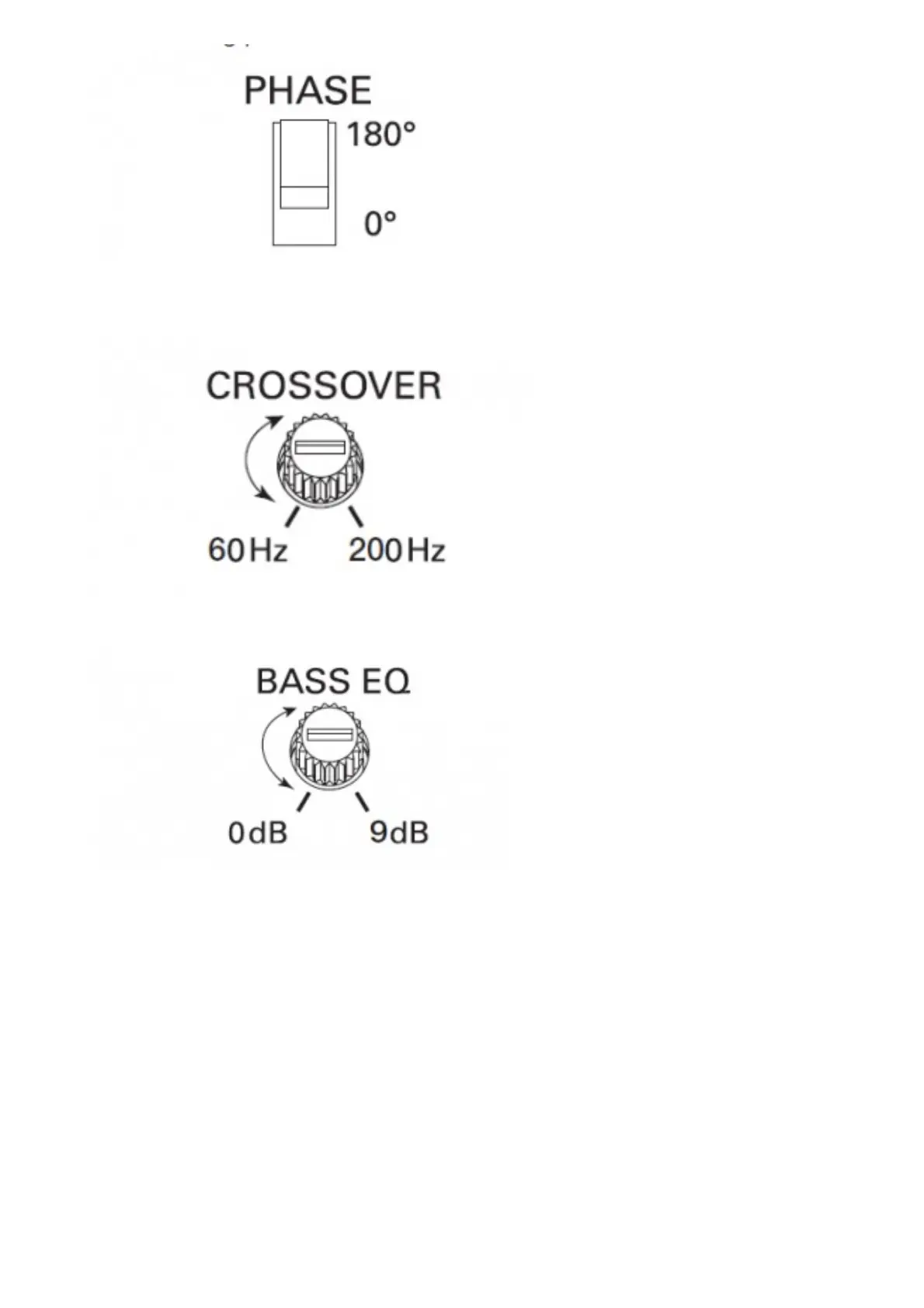

5. Adjust the crossover control (between 60Hz and 200Hz) until the Basspro 8 plays only low-frequency
information – you should not hear elements such as vocals
coming from the woofer.
6. Adjust the Bass EQ control clockwise or counterclockwise between 0 and 9 dB to enhance the bass output to
suit your taste.
SPECIFICATIONS
Amplifier Power : 100Wrms; 200W peak
Frequency Response : 30Hz –200Hz
Fuse : 10A
Maximum Current Draw : 9.5A
Quiescent Current Draw : <0.5A 50mV – 16V Universal Interface
Crossover Frequency : 60Hz – 200Hz
Crossover Slope : 12dB/octave
Bass Boost : up to +9dB @ 60Hz Dimensions (W x H x D1 x D2)
Dimensions (W x H x D1 x D2) : 9-7-8″ x 11-1/4″ x 10-3/8″ x 8″ (250mm x 285mm x 263mm x 203mm)
