JBL BRX300 SERIES
SYSTEM WIRING INFORMATION

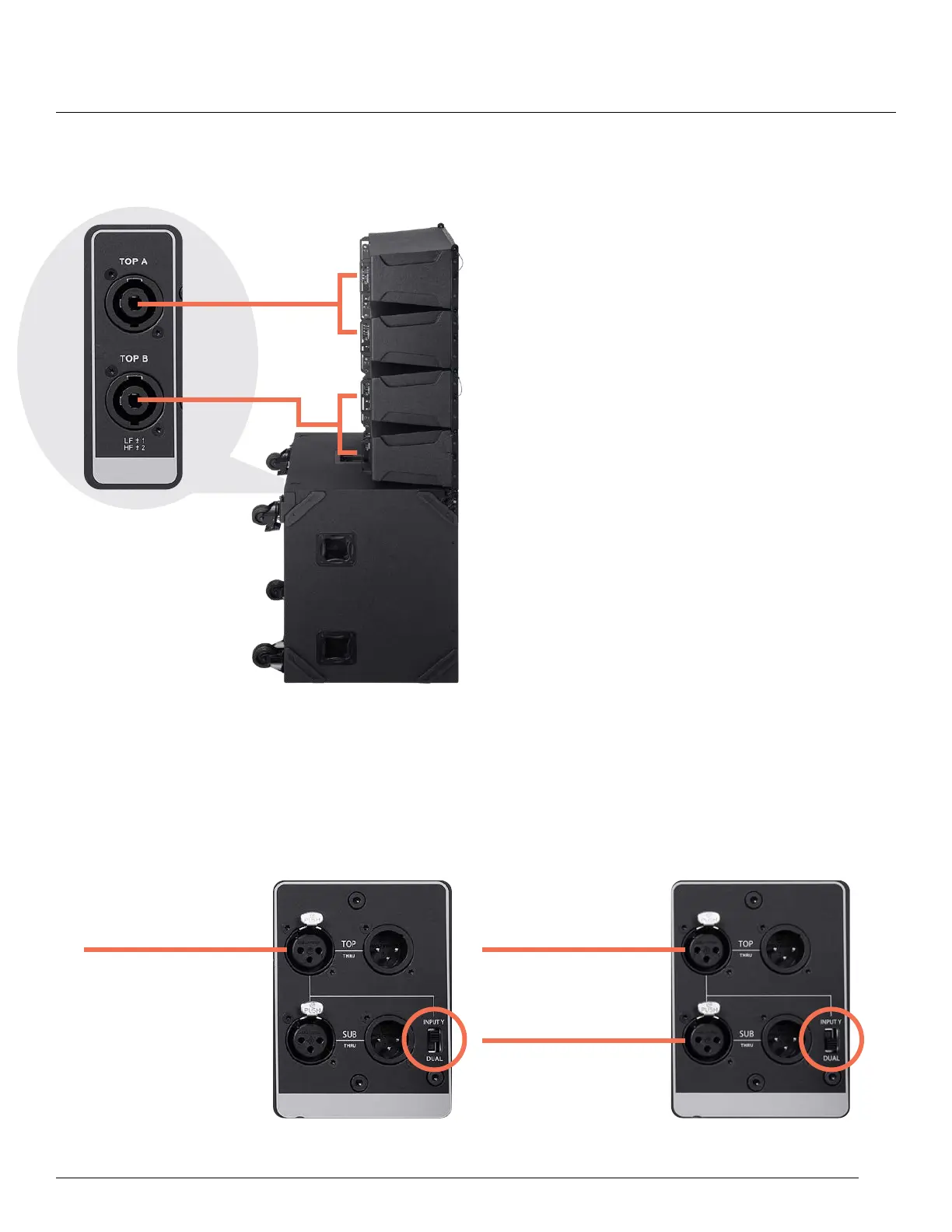

The below image shows the connection diagram for the BRX308-LA tops from the amplier and DSP module.
Each output on the power amplier module can drive up to 2 x BRX308-LA tops.
The system can be driven in one of two modes:
1. INPUT Y MODE: In this mode, a single output from the mixer feeds the entire system to drive both the sub +
tops.
2. DUAL MODE: In this mode, both the sub and tops can be driven from dierent outputs of the mixer to enable
additional control over the sub + top balance of the system.
2. Dual Mode1. Input Y Mode
From MixerFrom Mixer
From Mixer Aux Out
To Next Page
